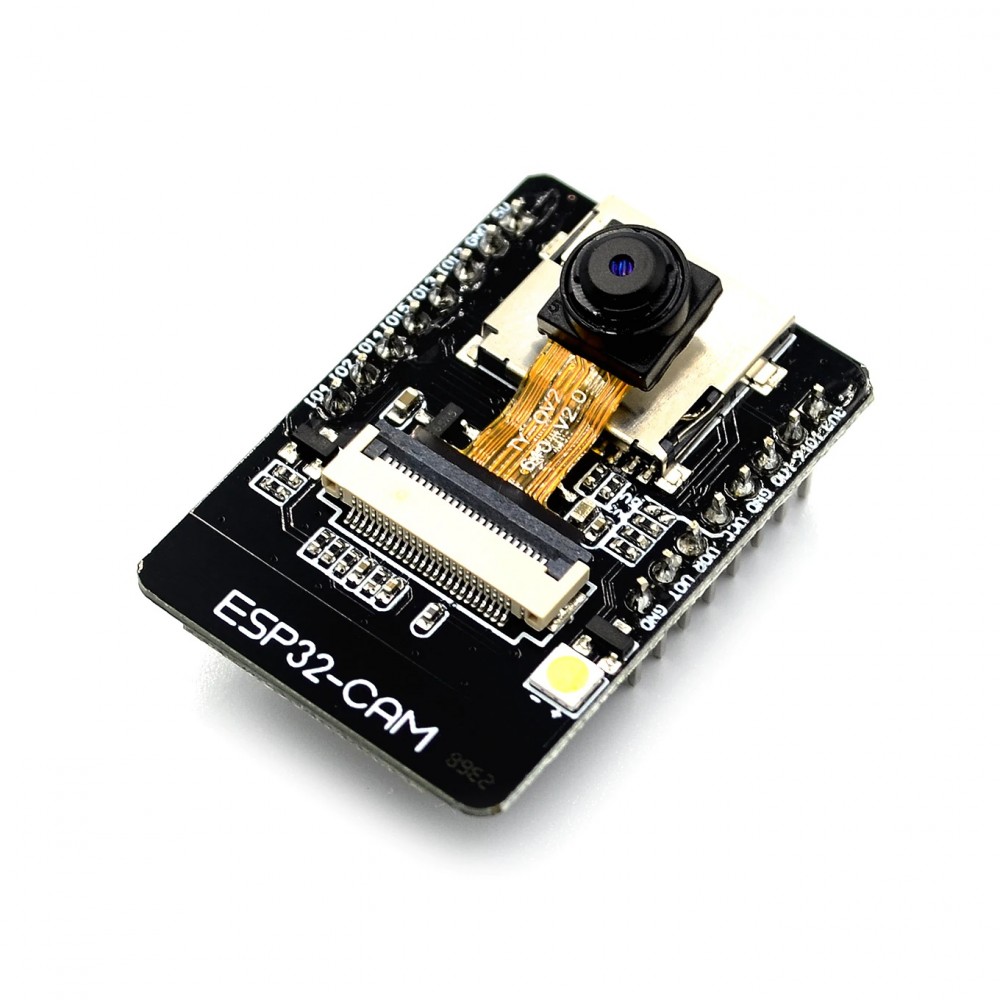

Esp32 Camera
The ESP32 Camera module integrates the ESP32-S chip and a camera sensor, offering a compact solution for projects requiring wireless connectivity and image/video capturing capabilities. It is ideal for IoT (Internet of Things) applications, surveillance systems, and various smart devices where remote monitoring and image processing are essential.
Key Features:
- ESP32-S chip with dual-core processor
- Integrated camera sensor (OV2640 or OV7670, depending on the module variant)
- Wi-Fi and Bluetooth connectivity (802.11 b/g/n, Bluetooth v4.2 BR/EDR and BLE)
- Support for microSD card for local storage
- GPIO pins for versatile connectivity and sensor integration
- USB interface for programming and power supply
- Low-power consumption for extended battery life
- Onboard antenna for wireless communication
- Processor: ESP32 dual-core Tensilica LX6 microprocessor
- Camera Sensor: OV2640 (2MP) or OV7670 (VGA)
- Connectivity: Wi-Fi 802.11 b/g/n, Bluetooth v4.2 BR/EDR and BLE
- Memory: 520KB SRAM, 4MB flash memory
- Operating Voltage: 3.3V
- Interfaces: USB, SPI, I2C, UART, ADC, DAC
- Operating Temperature Range: -40°C to +125°C
- Dimensions: Compact module size for embedded applications
- IoT devices with image capture and processing capabilities
- Surveillance cameras and security systems
- Remote monitoring and video streaming
- Smart home devices
- Industrial automation and monitoring
