2SD798 high voltage darlington power transistor

Price:

₦ 1,100.00

info@hub360.com.ng 07044715478
2SD798 high voltage darlington power transistor
  2. Shop
  3. 2SD798 high voltage darlington power transistor
Tip3055 NPN Power Transistor
Tip3055 NPN Power Transistor
₦ 850.00
₦ 850.00
4 USB DC-DC Buck fast charge module
4 USB DC-DC Buck fast charge module
₦ 13,000.00
₦ 13,000.00

2SD798 high voltage darlington power transistor

https://www.hub360.cc/web/image/product.template/14682/image_1920?unique=5719fb0
(0 review)

₦ 1,100.00 1100.0 NGN ₦ 1,100.00

₦ 1,100.00

Not Available For Sale

(₦ 0.00 / Units)

This combination does not exist.

Contact Us

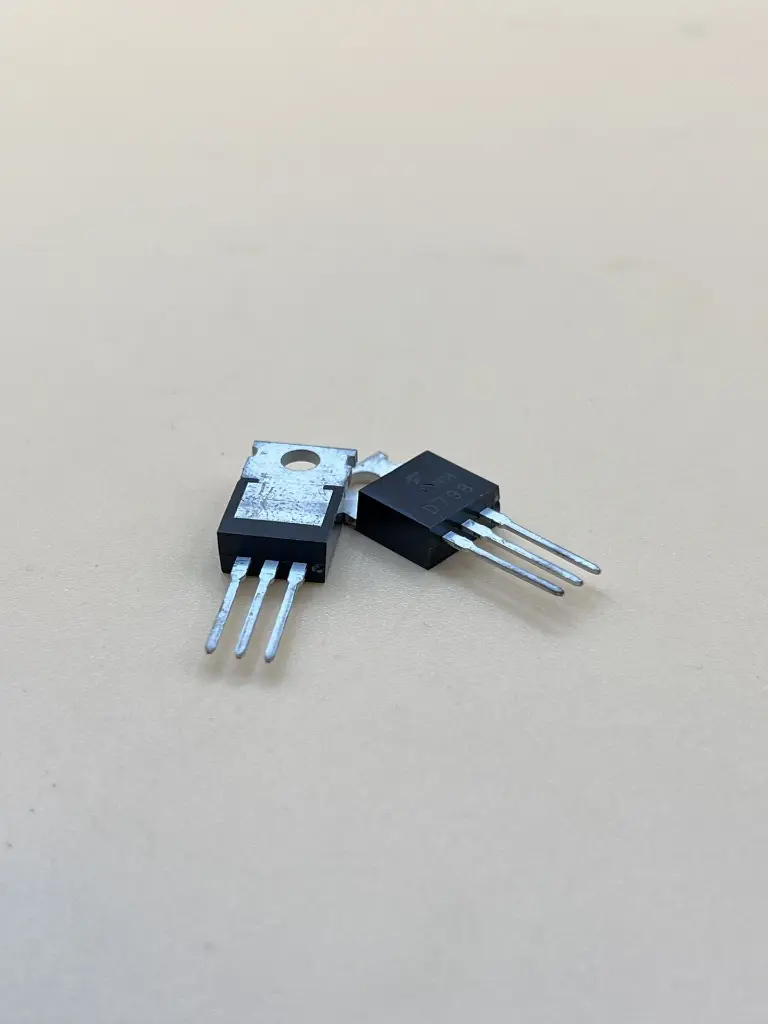

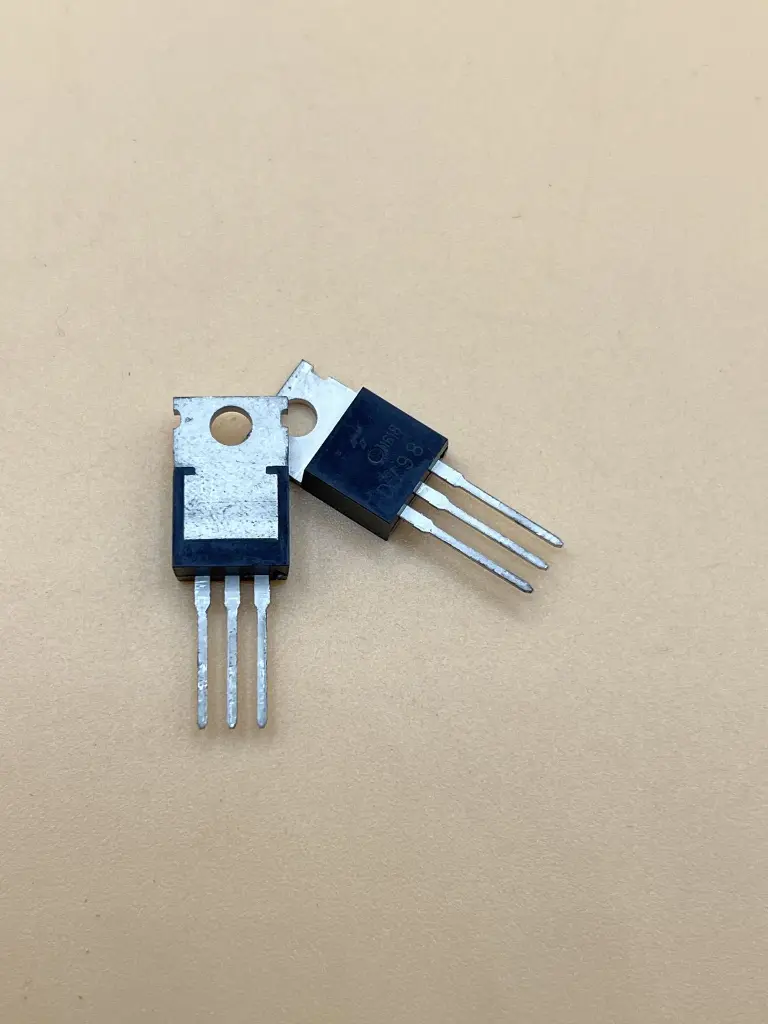

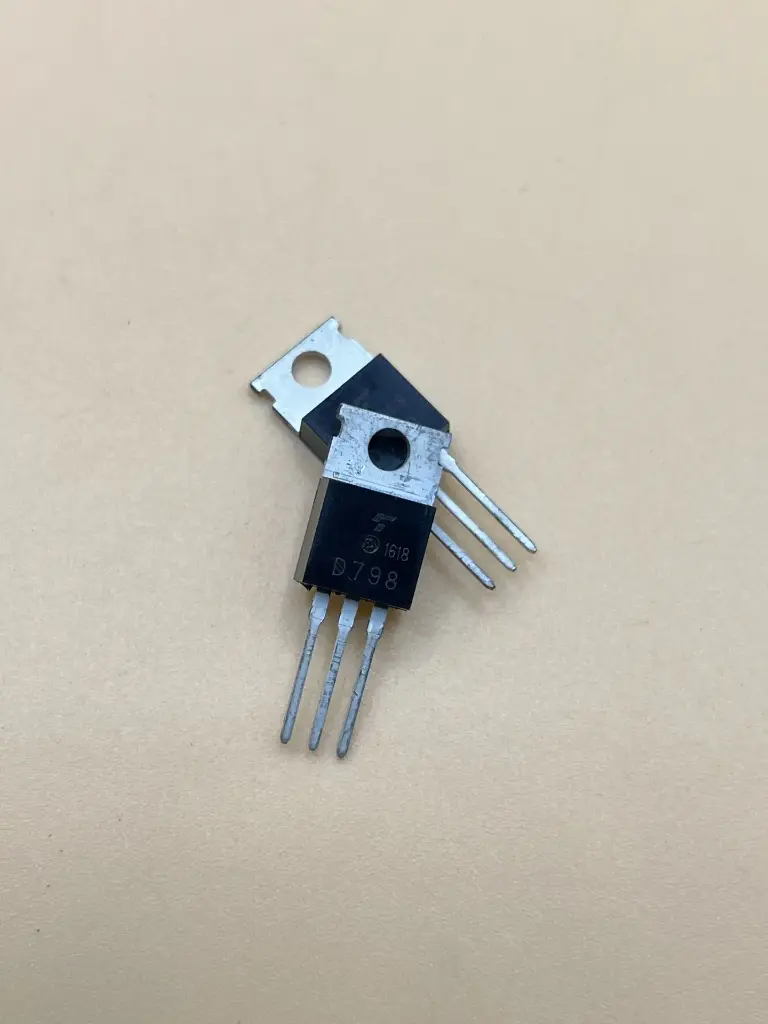

The 2SD798 is a high voltage Darlington power transistor designed for various high-power applications, including audio amplifiers, motor controllers, and power supply circuits. It features high current handling capability, high voltage capacity, and excellent thermal performance. The device is housed in a TO-3P package, providing robust mechanical and thermal performance. Key Features:
  • High voltage rating: 400V
  • High current handling capability: 10A
  • Darlington configuration for high current gain
  • Low saturation voltage
  • High power dissipation: 80W
  • Standard TO-3P package
Technical Specifications:
  • Collector-Emitter Voltage (Vceo): 400V
  • Collector-Base Voltage (Vcbo): 400V
  • Emitter-Base Voltage (Vebo): 5V
  • Collector Current (Ic): 10A
  • Base Current (Ib): 1A
  • Power Dissipation (Pd): 80W
  • DC Current Gain (hFE): 1000 (min) @ Ic = 5A, Vce = 5V
  • Saturation Voltage (Vce(sat)): 3V @ Ic = 5A, Ib = 10mA
  • Operating Temperature Range: -55°C to +150°C
  • Package: TO-3P
Applications:
  • Audio power amplifiers
  • Motor control circuits
  • Power supply regulation
  • Switching power supplies
  • Industrial and consumer electronics
Datasheet: For detailed technical information, please refer to the 2SD798 Datasheet.
