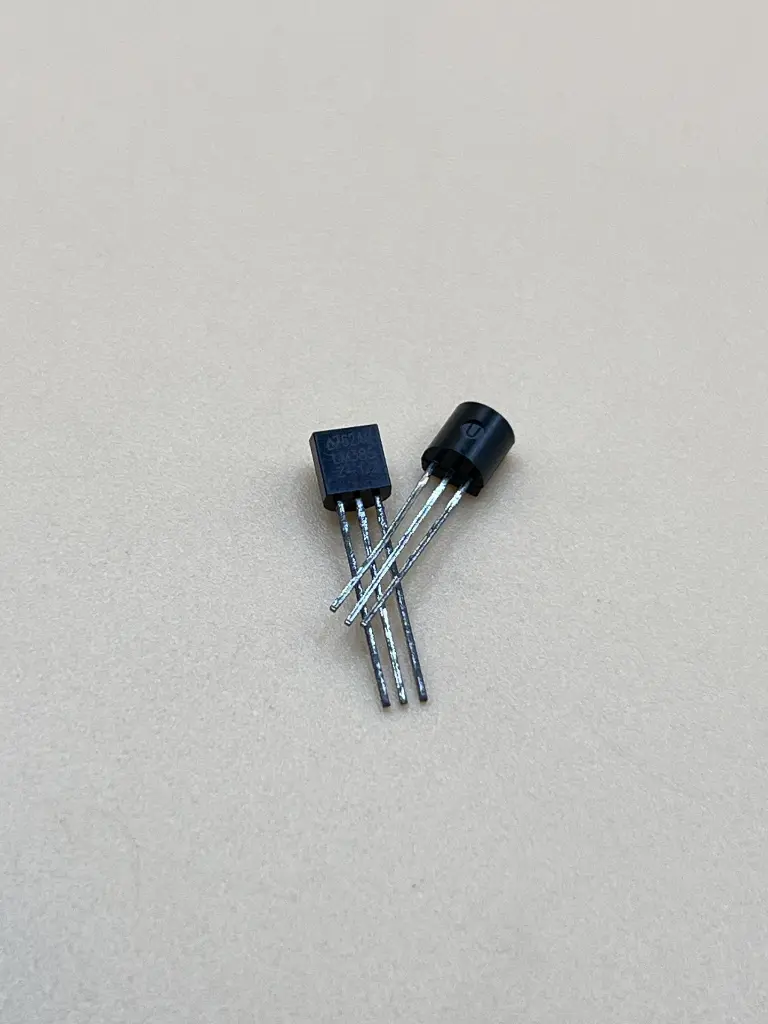

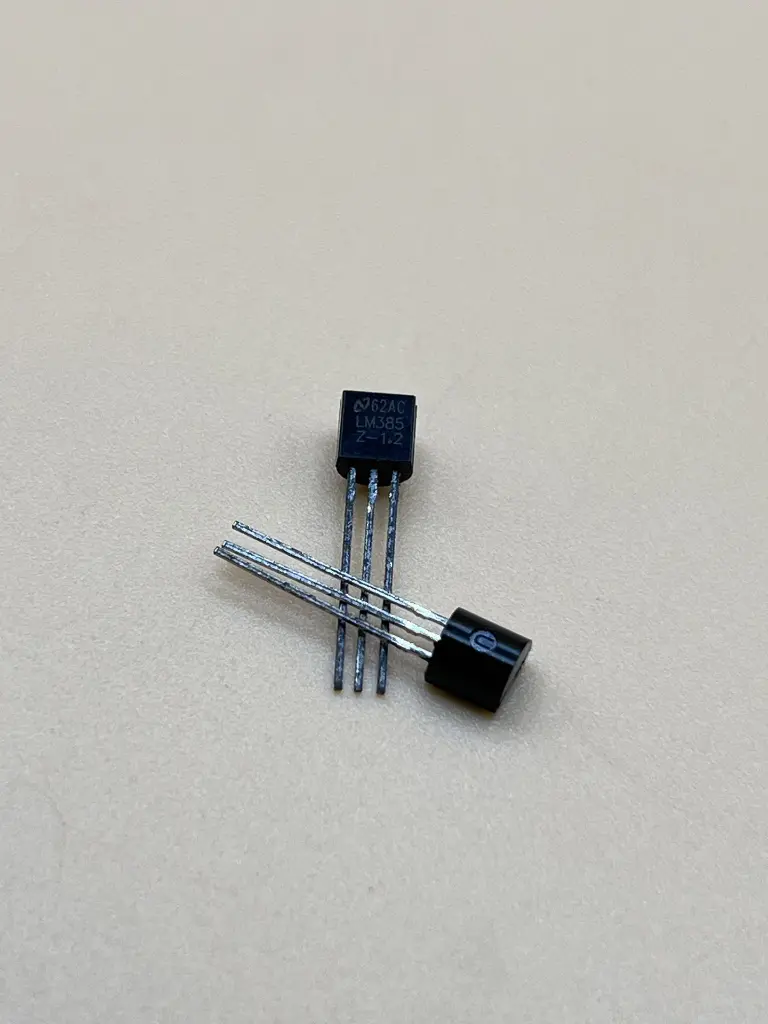

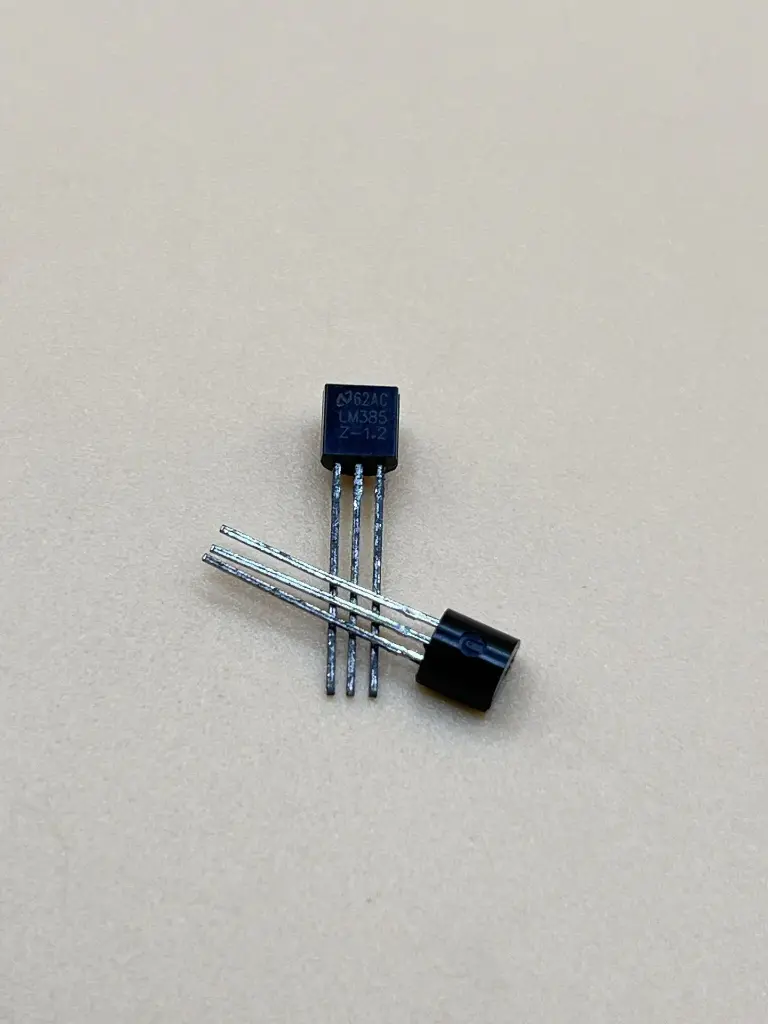

LM385-1.2V 1.2V reference voltage triode
The LM385-1.2V is a precision voltage reference diode designed to provide a stable 1.2V output voltage with low temperature coefficient and high stability over time. It is commonly used as a voltage reference in analog circuits where precise and stable reference voltages are required for accurate operation of integrated circuits, analog-to-digital converters (ADCs), and other analog components.
Key Features:
- Output Voltage: 1.2V
- Low temperature coefficient: typically 100 ppm/°C
- High initial accuracy: ±1%
- Low dynamic impedance
- Operating current: typically 15 µA to 20 µA
- Low dropout voltage: typically 0.6V at 1 mA
- Available in small packages (TO-92, SOT-23) for easy integration
- Output Voltage: 1.2V
- Temperature Coefficient: Typically 100 ppm/°C
- Initial Accuracy: ±1%
- Operating Current: Typically 15 µA to 20 µA
- Dropout Voltage: Typically 0.6V at 1 mA
- Operating Temperature Range: -40°C to +85°C
- Package Types: TO-92, SOT-23
- Precision voltage references
- Analog signal processing
- Voltage regulators
- Battery-powered instrumentation
- Test and measurement equipment
- Data acquisition systems
