MAC97A6 thyristor

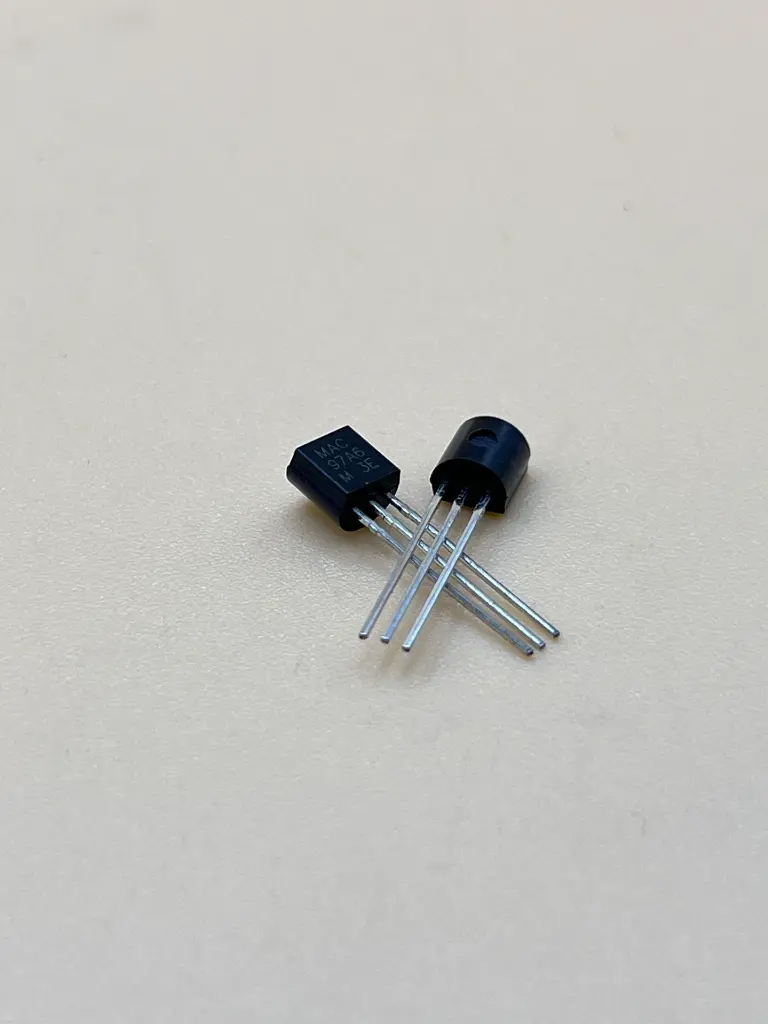

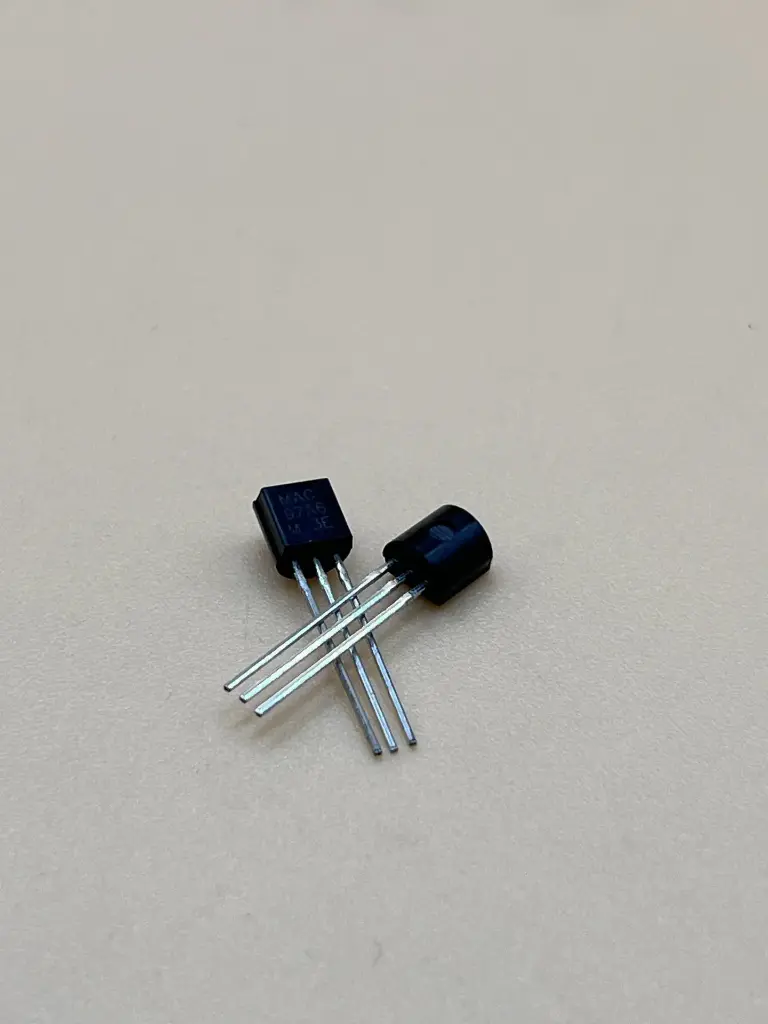

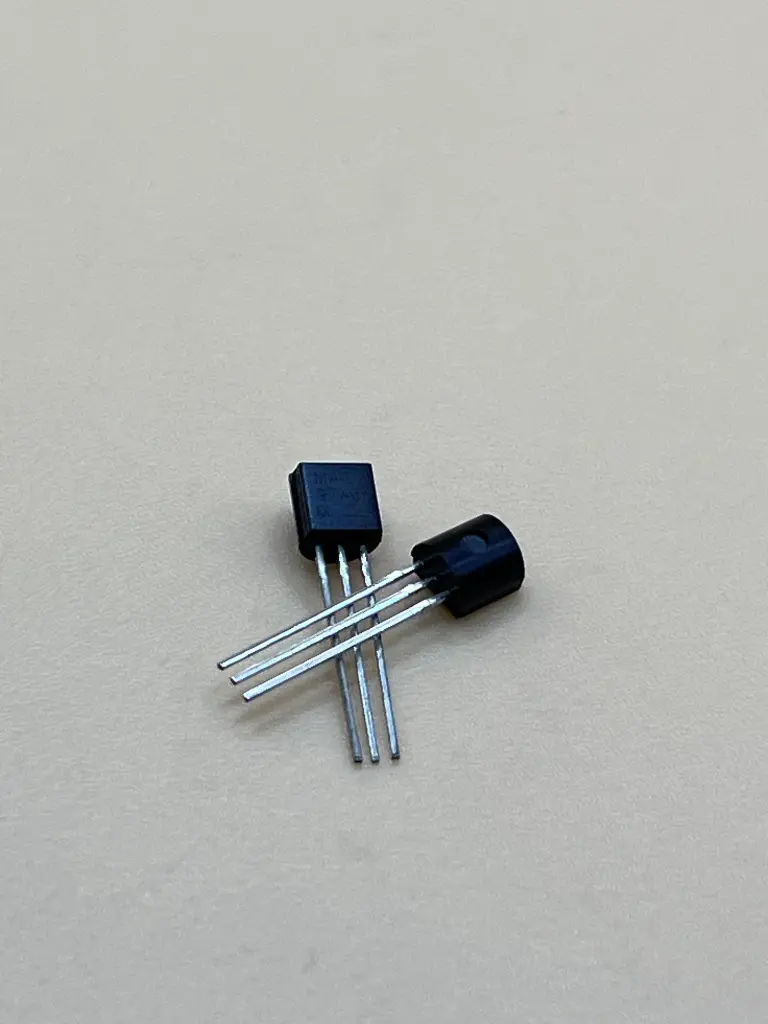

The MAC97A6 is a sensitive gate triode for alternating current (TRIAC) designed for general-purpose AC switching and phase control applications. It can control AC loads such as motors, lamps, and heating elements. The MAC97A6 is packaged in a TO-92, which is ideal for applications requiring compact, low-power components.
Key Features:
- High blocking voltage: 600V
- Medium current handling capability: 0.6A RMS
- Low gate trigger current: 5mA
- High surge current capability: 8A
- Compact TO-92 package
- Repetitive Peak Off-State Voltage (Vdrm): 600V
- Repetitive Peak Reverse Voltage (Vrrm): 600V
- RMS On-State Current (It(RMS)): 0.6A
- Peak Non-Repetitive Surge Current (Itsm): 8A (50Hz), 8.8A (60Hz)
- Gate Trigger Current (Igt): 5mA
- Holding Current (Ih): 2mA
- On-State Voltage (Vtm): 1.7V
- Operating Temperature Range: -40°C to +110°C
- Package: TO-92
- Light dimmers
- Motor speed controls
- Heating control systems
- Static switching
- AC switch for small appliances
- Industrial and domestic lighting
