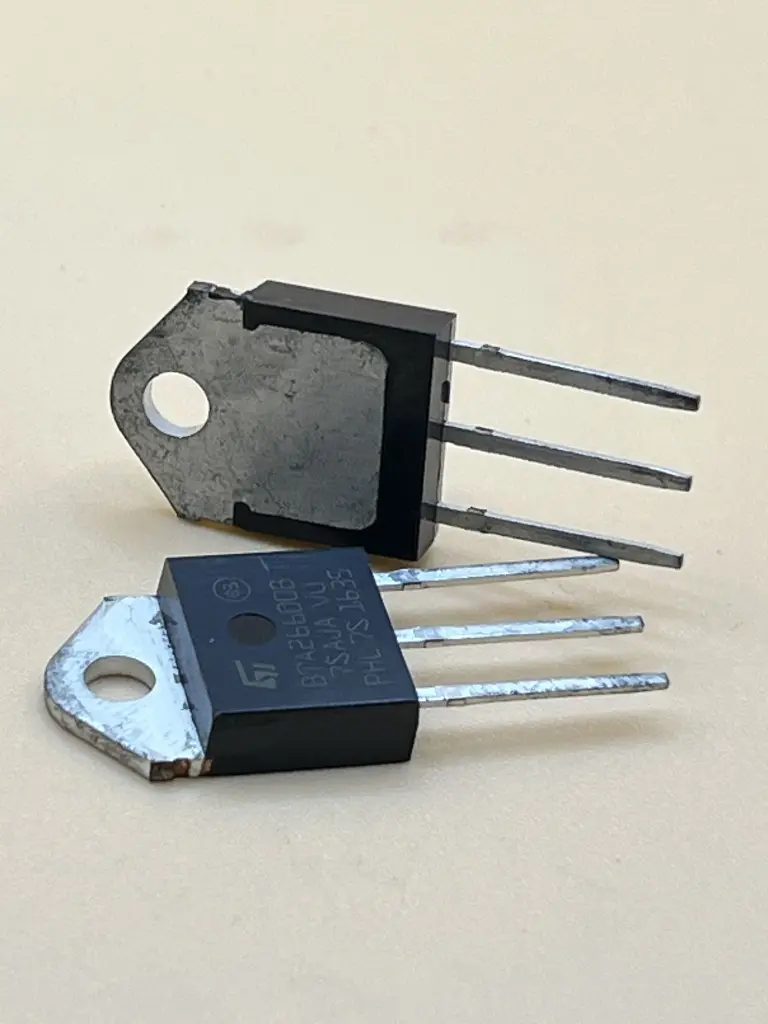

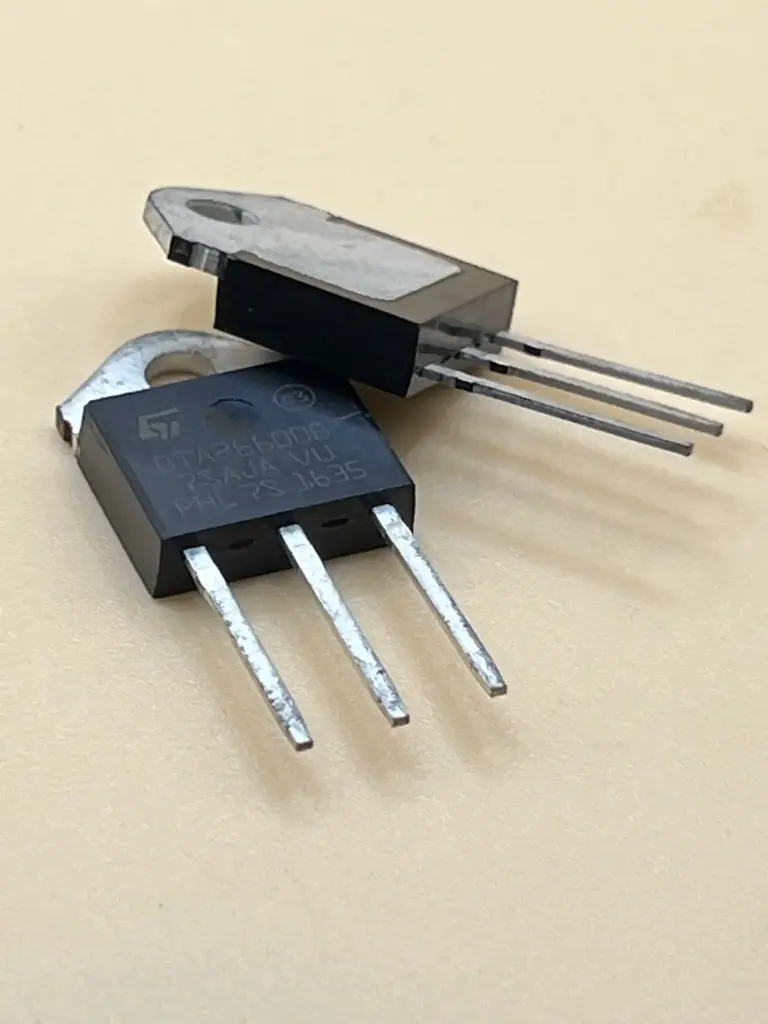

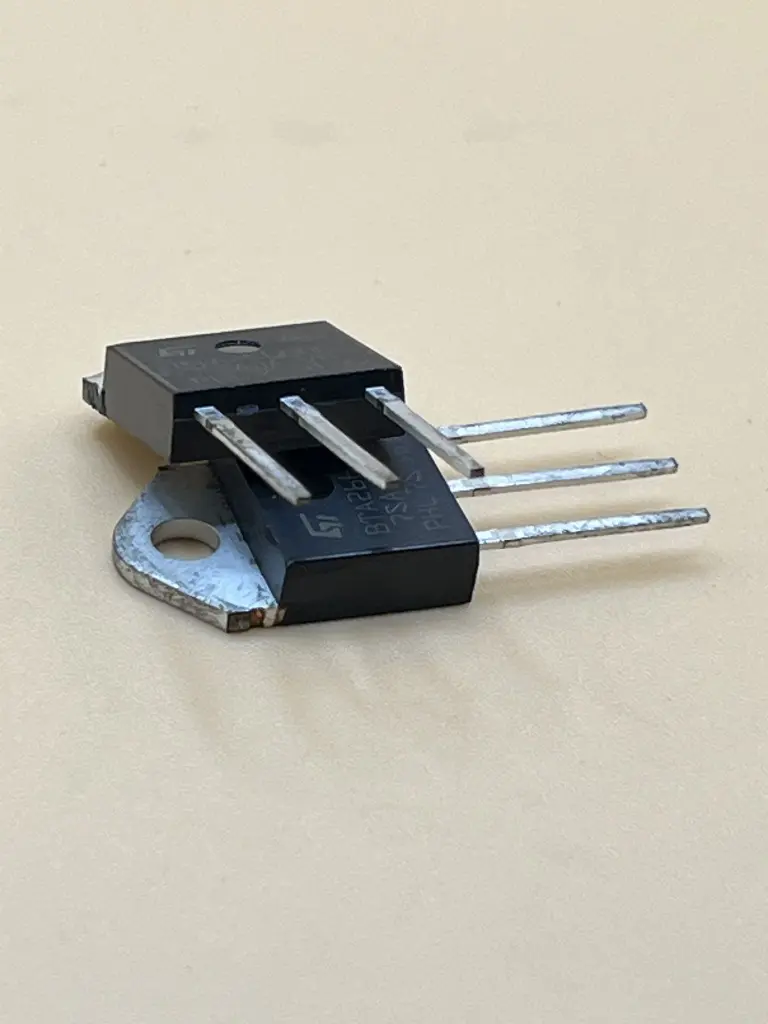

BTA26-600B thyristor
The BTA26-600B is a high-power TRIAC (Triode for Alternating Current) designed for AC switching and phase control applications. It can handle high current loads and is capable of switching both directions of the AC signal. The device is housed in a TO-3P package, which provides excellent thermal performance and mechanical robustness, making it suitable for various industrial and consumer electronic applications.
Key Features:
- High blocking voltage: 600V
- High current handling capability: 25A RMS
- Low gate trigger current: 50mA
- High surge current capability: 250A
- High thermal performance
- Standard TO-3P package
- Repetitive Peak Off-State Voltage (Vdrm): 600V
- Repetitive Peak Reverse Voltage (Vrrm): 600V
- RMS On-State Current (It(RMS)): 25A
- Peak Non-Repetitive Surge Current (Itsm): 250A (50Hz), 262A (60Hz)
- Gate Trigger Current (Igt): 50mA
- Holding Current (Ih): 50mA
- On-State Voltage (Vtm): 1.7V
- Operating Temperature Range: -40°C to +125°C
- Package: TO-3P
- Light dimmers
- Motor speed controls
- Heating control systems
- Static switching
- AC switch
- Industrial and domestic lighting
