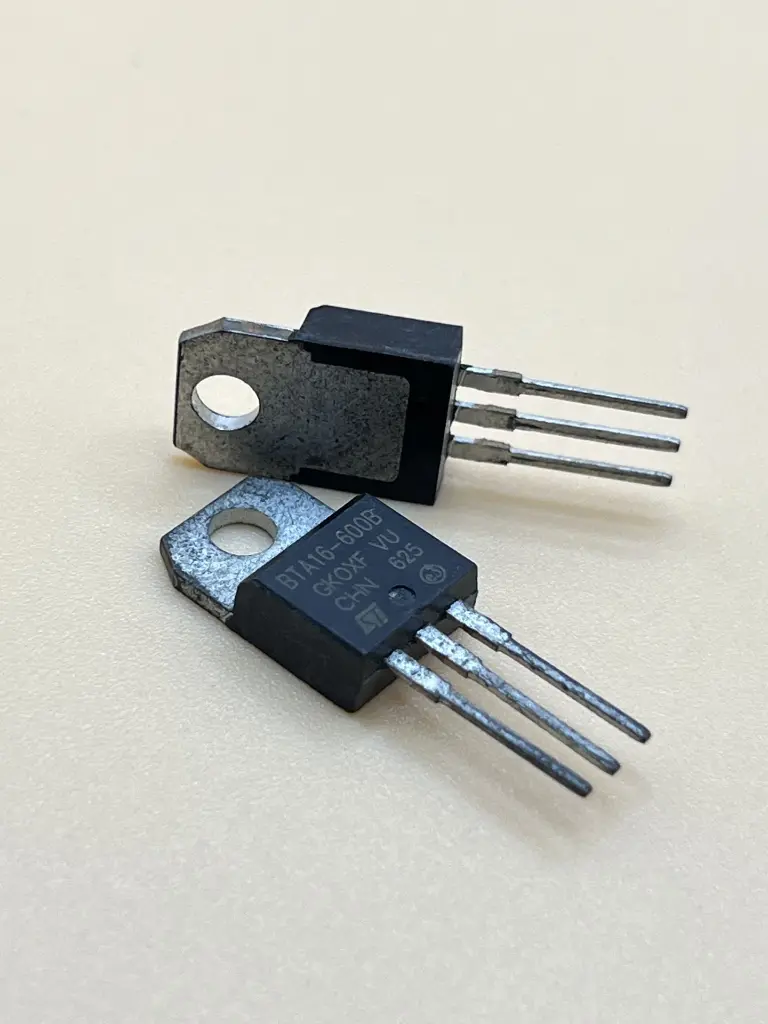

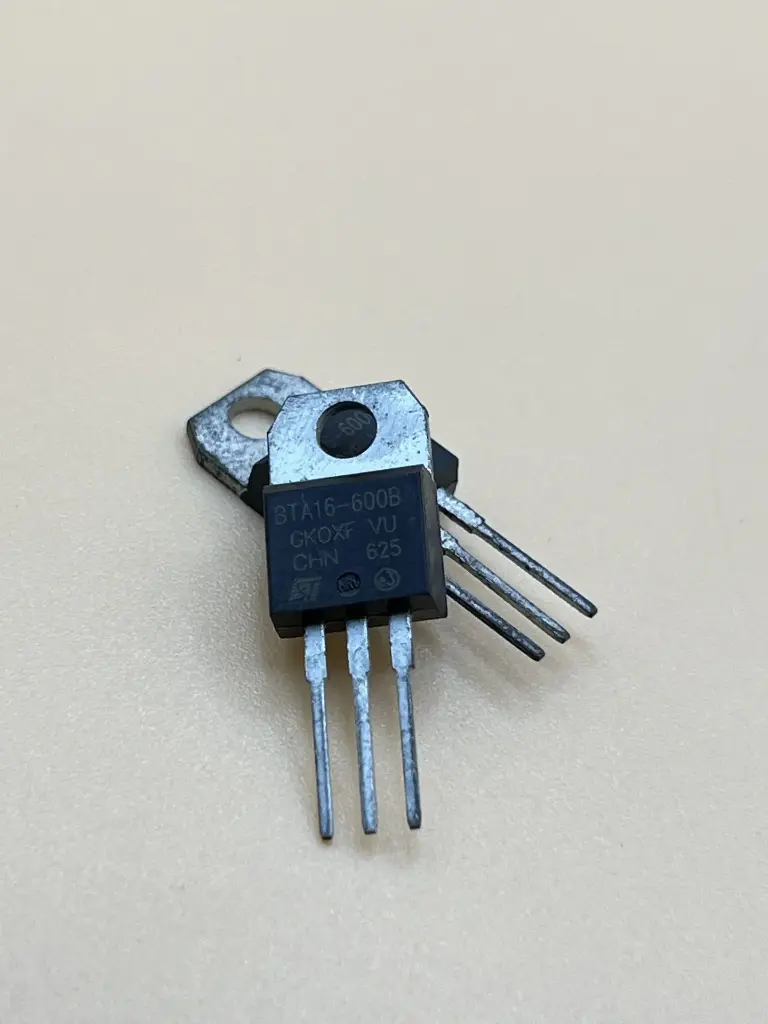

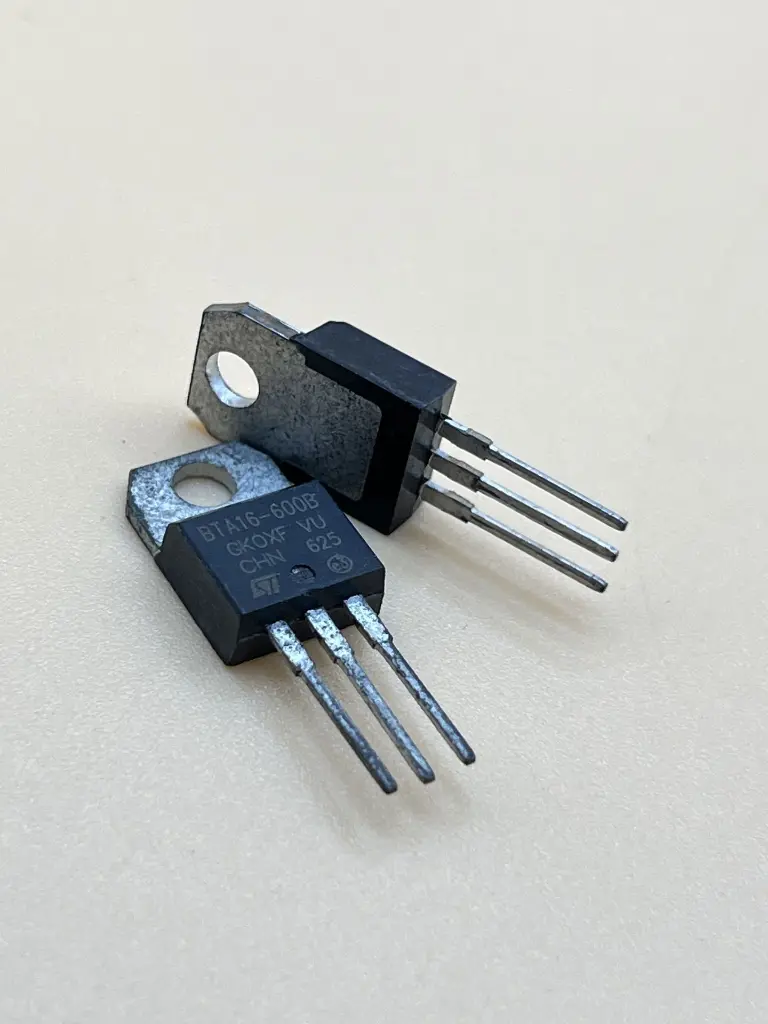

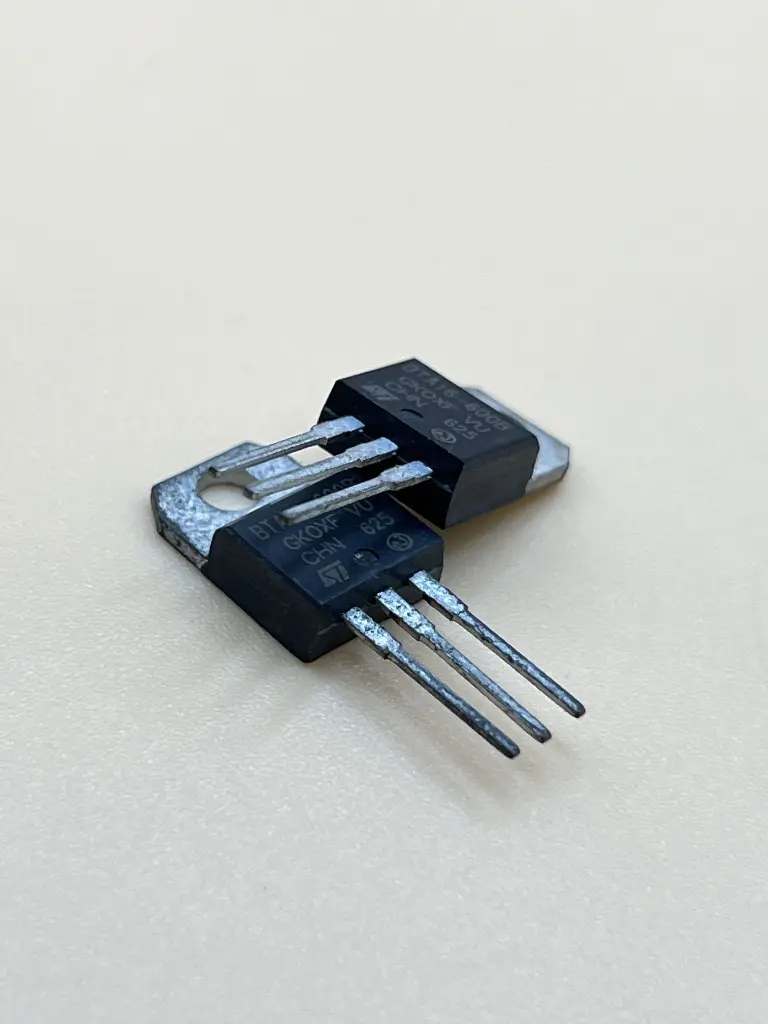

BTA16-600B thyristor
The BTA16-600B is a triac designed for general-purpose switching and phase control applications. This thyristor is ideal for use in domestic and industrial environments for controlling resistive and inductive loads, such as motors, lamps, and heating systems.
Key Features:
- High blocking voltage: 600V
- High surge current capability
- Low gate trigger current
- Robust construction for reliable operation
- High immunity to false triggering
- Sensitive gate for easy triggering
- Standard insulated (2500V RMS)
- Peak Repetitive Off-State Voltage (VDRM): 600V
- RMS On-State Current (IT(RMS)): 16A
- Non-Repetitive Surge Peak On-State Current (ITSM): 160A
- Gate Trigger Current (IGT): 35mA
- Holding Current (IH): 35mA
- Operating Temperature Range: -40°C to +125°C
- Package Type: TO-220AB Insulated
- Light dimmers
- Motor speed controllers
- Heater controls
- Static switches
- AC switching and phase control
- Industrial and domestic lighting
