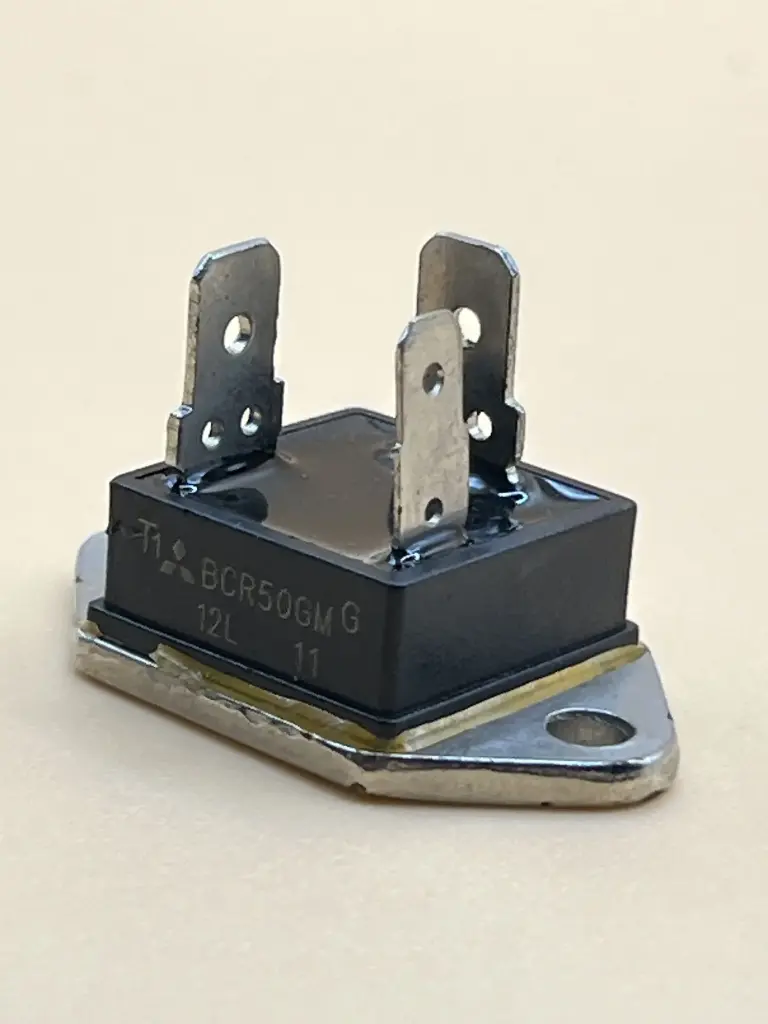

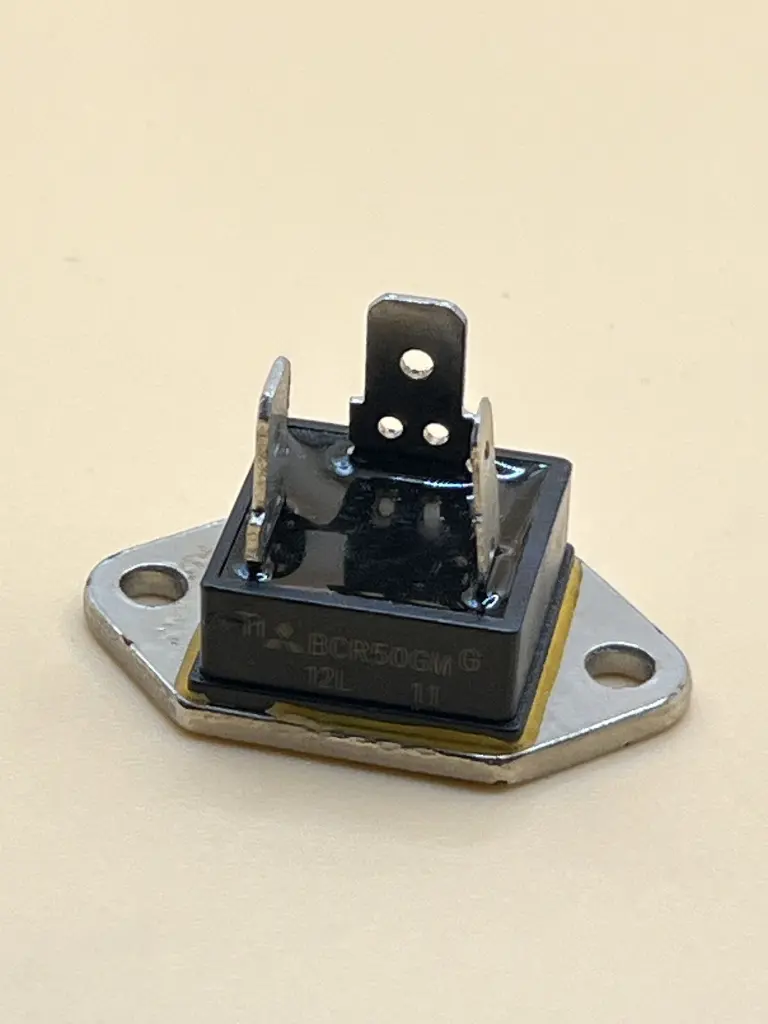

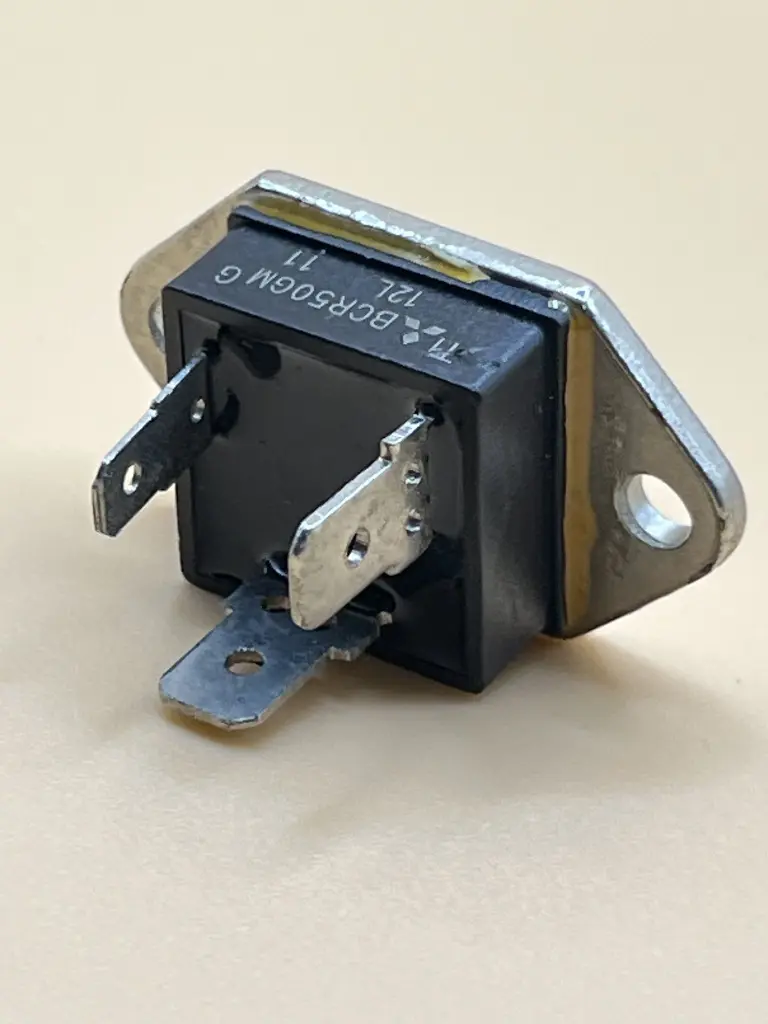

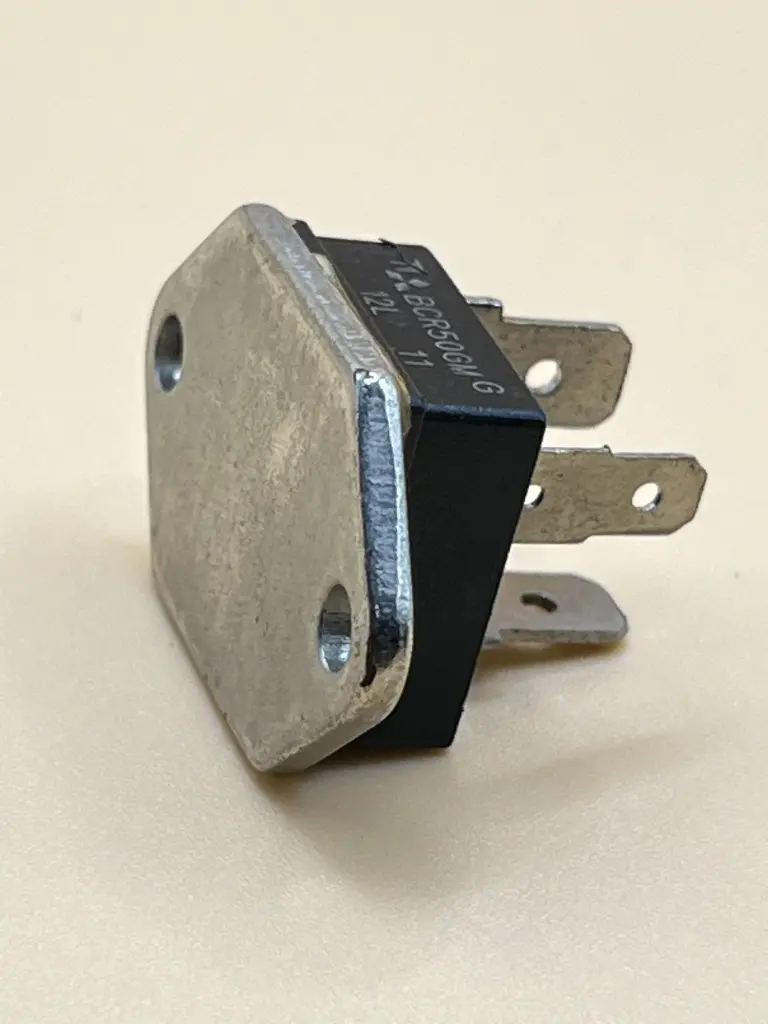

BCR50GM thyristor
The BCR50GM is a high-power silicon-controlled rectifier (SCR) designed for industrial applications requiring high current and voltage handling capabilities. It features a high surge current capability, low on-state voltage drop, and robust performance. The device is packaged in a TO-3P, which provides excellent thermal management and mechanical robustness.
Key Features:
- High blocking voltage: 800V
- High current handling capability: 50A RMS
- High surge current capability: 500A
- Low on-state voltage drop
- High thermal performance
- Standard TO-3P package
- Repetitive Peak Off-State Voltage (Vdrm): 800V
- Repetitive Peak Reverse Voltage (Vrrm): 800V
- RMS On-State Current (It(RMS)): 50A
- Peak Non-Repetitive Surge Current (Itsm): 500A (50Hz), 525A (60Hz)
- Gate Trigger Current (Igt): 50mA
- Holding Current (Ih): 100mA
- On-State Voltage (Vtm): 1.6V
- Operating Temperature Range: -40°C to +125°C
- Package: TO-3P
- Industrial power control
- AC motor drives
- Power supplies
- Battery chargers
- Static switching
- Phase control applications
