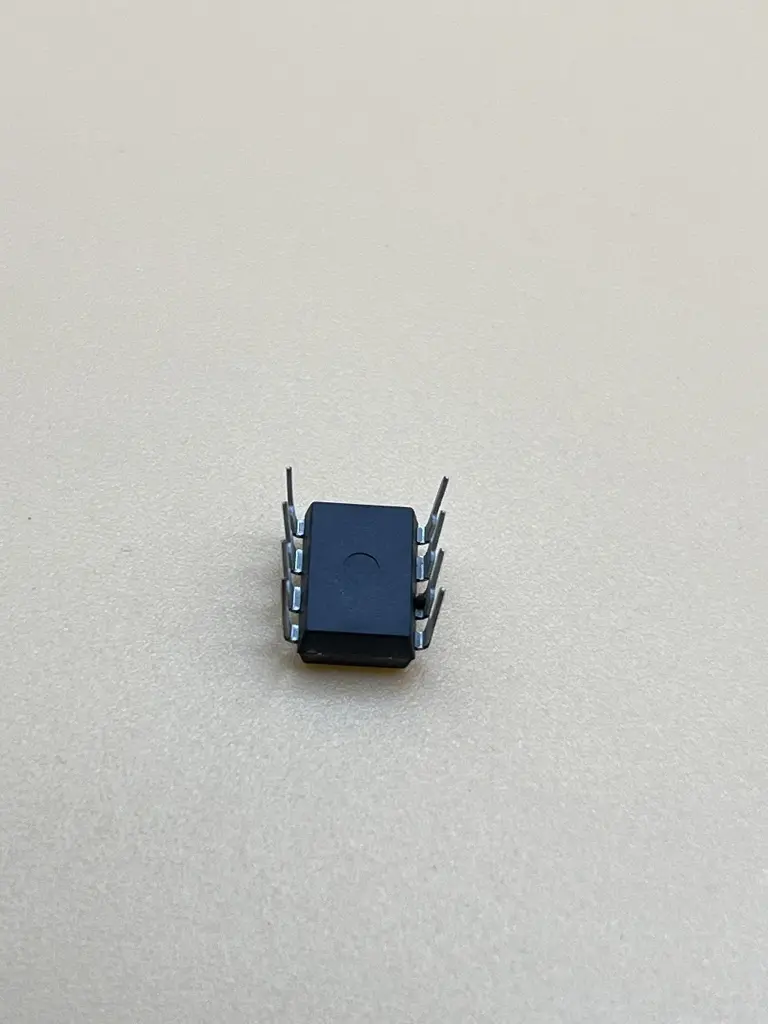

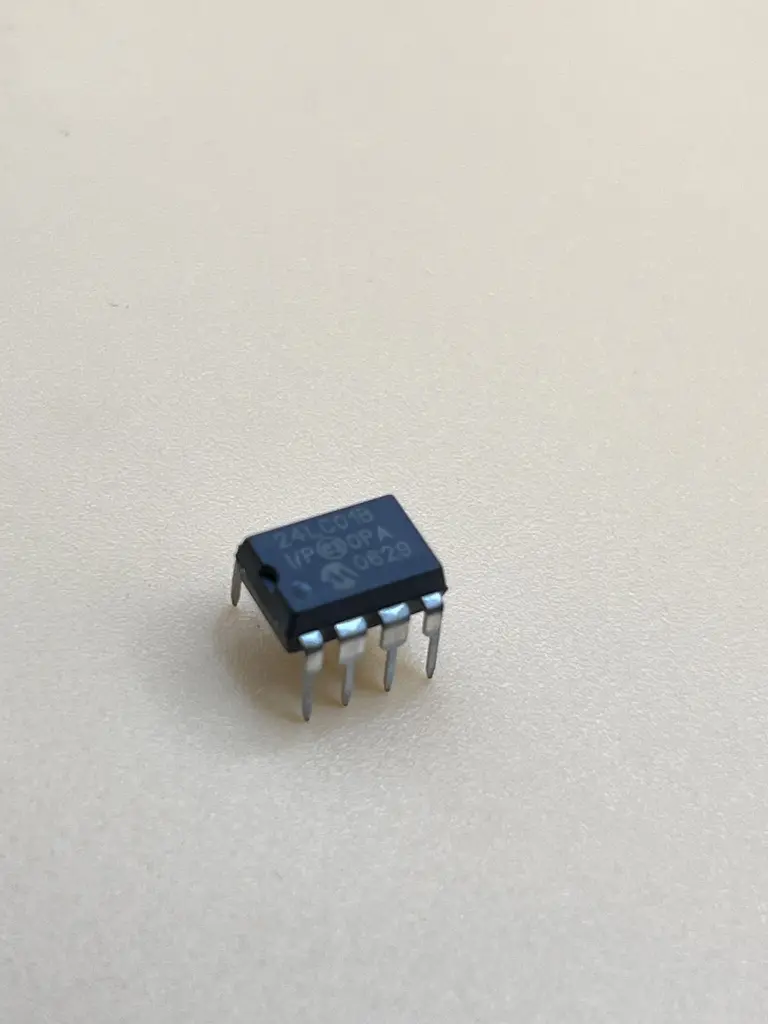

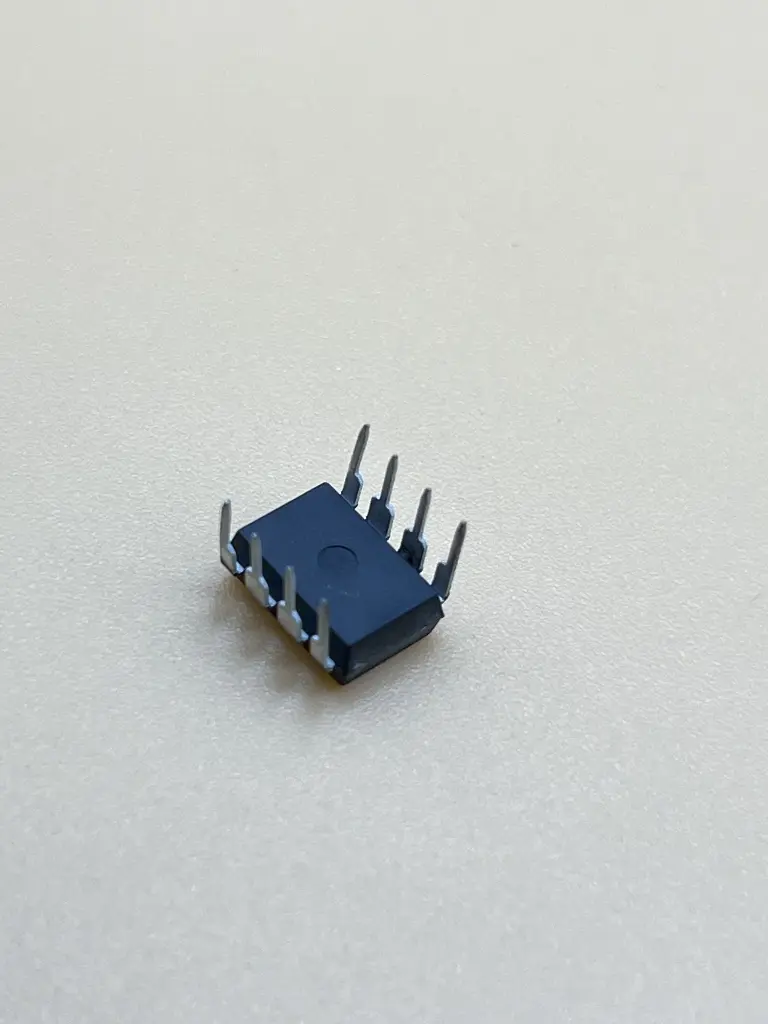

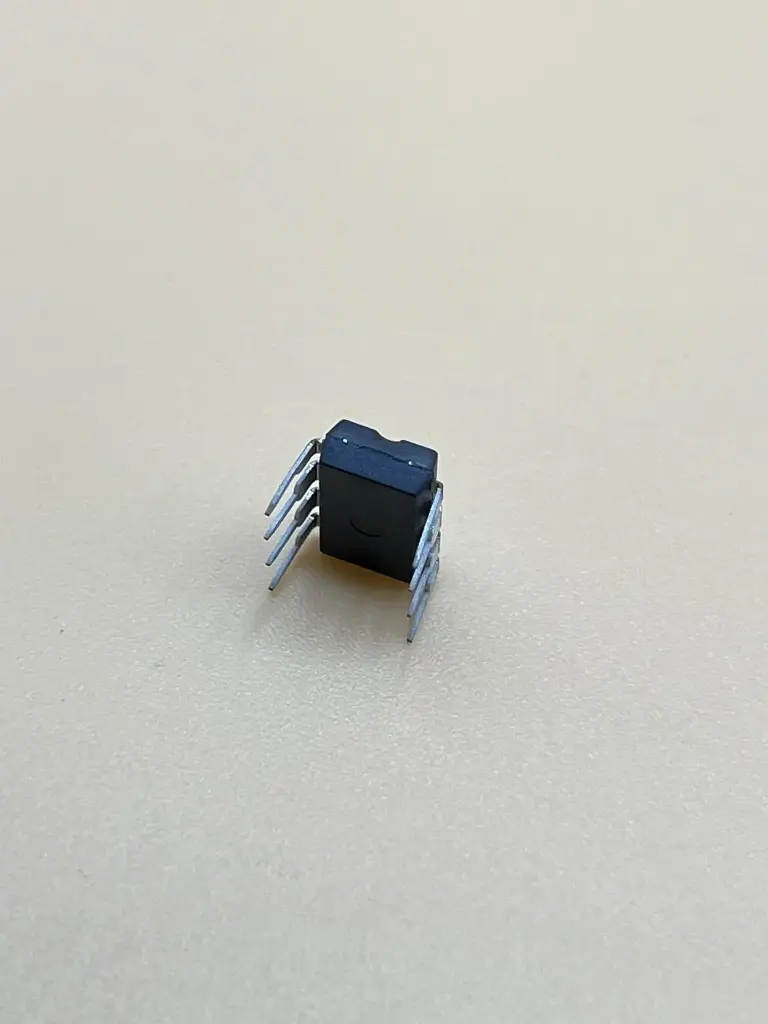

24LC01B EEPROM memory
Description:
The 24LC01B is a 1-Kbit (128 x 8-bit) serial Electrically Erasable Programmable Read-Only Memory (EEPROM). It utilizes the I2C (Inter-Integrated Circuit) protocol for communication, making it easy to interface with microcontrollers and digital systems. The 24LC01B offers non-volatile storage with byte-level read and write operations, suitable for storing configuration data, small parameters, and calibration constants.
Key Features:
- Memory Capacity: 1 Kbit (128 x 8 bits)
- I2C Interface: Supports standard and fast mode (100 kHz and 400 kHz)
- Single supply voltage: 1.7V to 5.5V
- Low power consumption: Active current 1 mA, standby current 1 µA
- Write Protect (WP) pin for hardware write protection
- Built-in address pins for device addressing
- 100,000 write cycles endurance
- 200-year data retention
- Package Type: 8-lead PDIP, 8-lead SOIC, 8-lead TSSOP
- Operating Temperature Range: -40°C to +85°C
- Write Time: 5 ms (typical)
- Read Time: 0.4 ms (typical)
- Dimensions (PDIP): 10.16 mm x 6.35 mm x 2.54 mm
- Weight: 0.5 g
- Embedded Systems: Stores calibration data and configuration settings in microcontroller-based systems.
- Consumer Electronics: Used in devices requiring small non-volatile memory for parameter storage.
- Industrial Automation: Suitable for storing production data and system configurations in automated systems.
- Medical Devices: Stores patient data, calibration information, and device settings in medical equipment.
- Smart Sensors: Used for storing calibration coefficients and sensor parameters in IoT devices and sensors.
