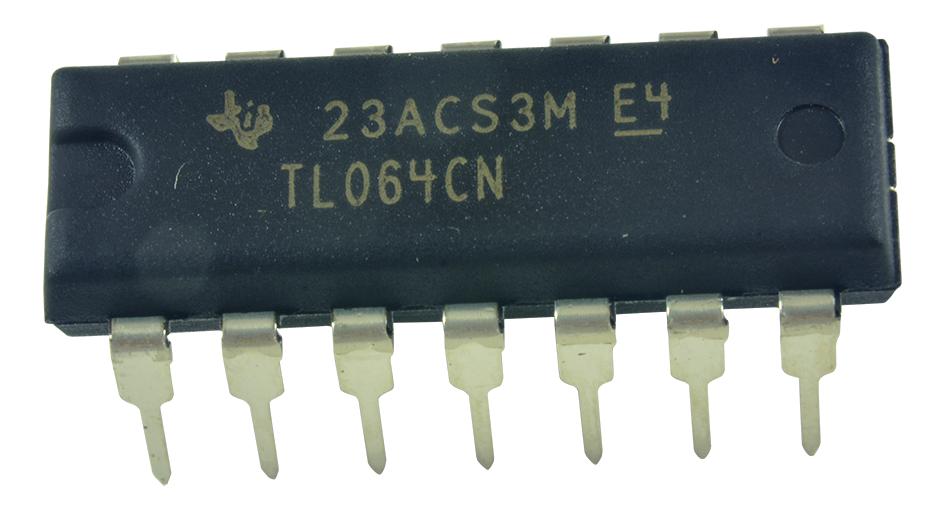

TL064CN four JFET input Op Amp
Description:
The TL064CN is a quad operational amplifier featuring high input impedance JFET transistors and low power consumption. This device offers superior performance in audio, signal processing, and control systems. The TL064CN provides excellent slew rates, wide bandwidth, and low offset voltage, making it ideal for a wide range of applications.
Key Features:
- Quad operational amplifier
- JFET input stage with high input impedance
- Low power consumption
- Wide bandwidth: 1 MHz
- High slew rate: 3 V/µs
- Low input bias current: 30 pA
- Low input offset voltage: 3 mV
- Large signal voltage gain: 100 dB
- Package Type: DIP-14
- Supply Voltage Range: ±3V to ±18V
- Input Offset Voltage: 3 mV (max)
- Input Bias Current: 30 pA (typ)
- Input Impedance: 10^12 Ω
- Common-Mode Rejection Ratio (CMRR): 70 dB
- Power Supply Rejection Ratio (PSRR): 70 dB
- Operating Temperature Range: 0°C to +70°C
- Dimensions: 19.3 mm x 6.5 mm x 3.6 mm
- Weight: 1 g
- Audio Systems: Used in audio preamplifiers and equalizers.
- Signal Processing: Ideal for filtering and signal conditioning applications.
- Instrumentation: Suitable for use in precision measurement and data acquisition systems.
- Control Systems: Used in various control and feedback systems.
- Sensor Interfaces: Interfaces with high-impedance sensors for accurate signal amplification.
