Description

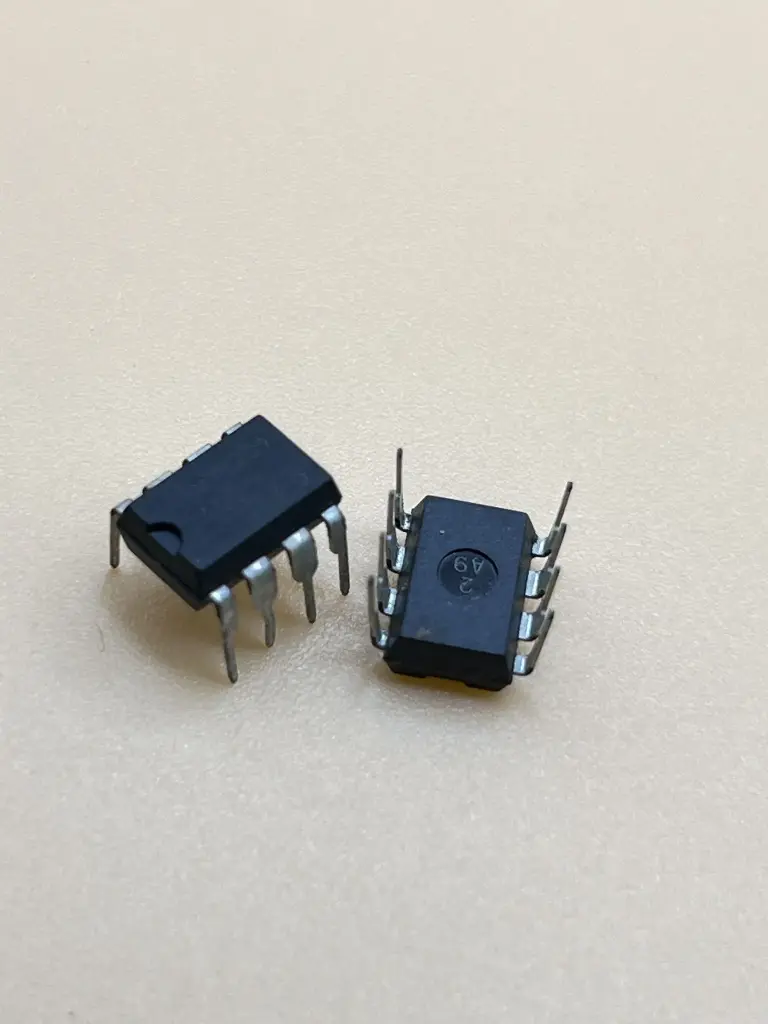

The AT24C08 is an 8Kbit (1024 x 8) serial Electrically Erasable Programmable Read-Only Memory (EEPROM) designed for use in various applications requiring non-volatile memory. It features an I²C-compatible (2-wire) serial interface, making it easy to integrate into digital systems where space and power consumption are critical
Key Features:
- 8Kbit (1024 x 8) EEPROM
- I²C-Compatible (2-wire) Serial Interface
- Wide Voltage Operation: 1.7V to 5.5V
- Low-Power CMOS Technology
- 400 kHz Clock Frequency (Max at 5V)
- Schmitt Trigger Inputs for Noise Suppression
- Write Protect Pin for Hardware Data Protection
- Self-Timed Write Cycle (5 ms max)
- 1 Million Write Cycles Endurance
- 100-Year Data Retention
- Memory Size: 8Kbit (1024 x 8)
- Interface: I²C-compatible (2-wire)
- Operating Voltage: 1.7V to 5.5V
- Clock Frequency: 400 kHz (Max at 5V)
- Write Cycle Time: 5 ms max
- Endurance: 1 Million Write Cycles
- Data Retention: 100 Years
- Package Options: 8-lead PDIP, 8-lead SOIC, 8-lead TSSOP
- Configuration Data Storage
- Identification and Security Data Storage
- Industrial Automation
- Consumer Electronics
- Embedded Systems
