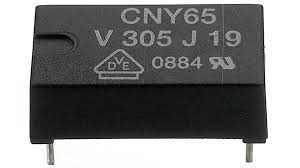

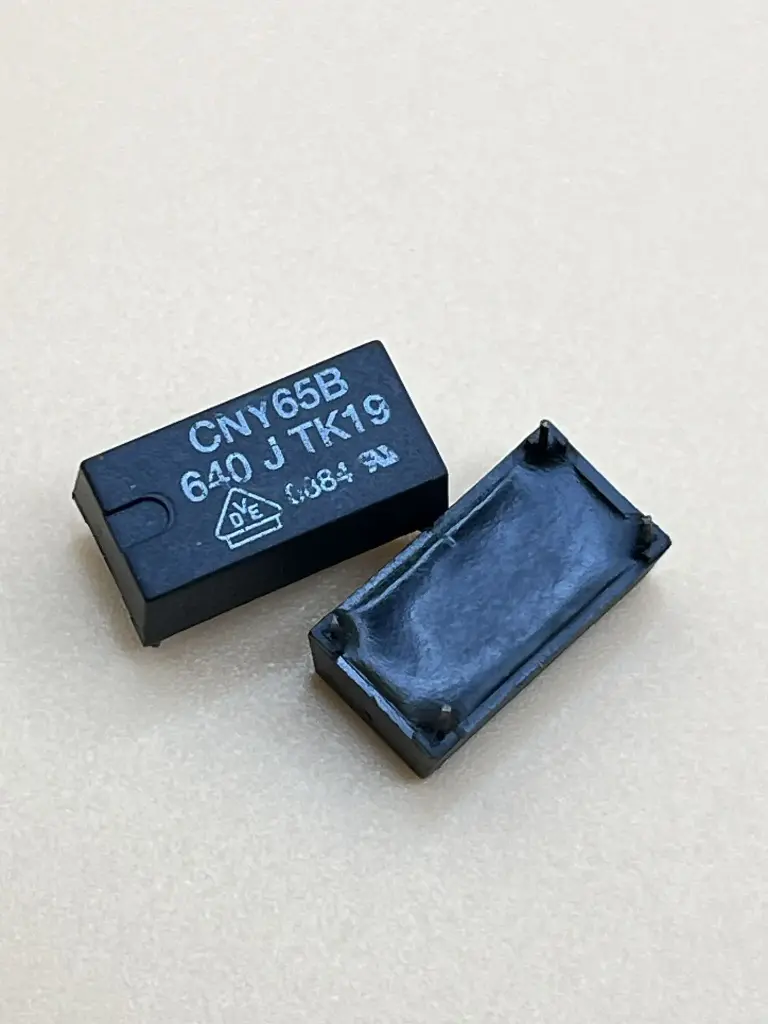

CNY65B High Voltage Opto-isolator
The CNY65B is a high voltage opto-isolator designed to provide electrical isolation between input and output circuits, allowing signal transmission without direct electrical connection. This opto-isolator is suitable for applications requiring high voltage isolation, such as industrial control systems, power supplies, and medical equipment. It features a high isolation voltage and is capable of withstanding high transient voltages, making it ideal for harsh electrical environments.
Key Features:
- High voltage isolation
- Wide operating temperature range
- Fast switching speed
- Low coupling capacitance
- High common-mode rejection
- Compact package
- Isolation Voltage: 25 kV/µs (min)
- CTR (Current Transfer Ratio): 50% to 600% (depending on specific model variations)
- Input Forward Voltage: 1.2V (typical)
- Input Forward Current: 10mA (typical)
- Collector-Emitter Voltage: 70V (max)
- Operating Temperature Range: -55°C to +100°C
- Package: 6-pin DIP
- Industrial Control Systems: Provides isolation in control circuits to prevent high voltage spikes from damaging sensitive components.
- Power Supplies: Ensures safe isolation between high voltage and low voltage sides.
- Medical Equipment: Provides isolation in medical devices to protect patients from electrical shock.
- Communication Systems: Used in communication equipment for signal isolation and protection.
- Test and Measurement Equipment: Ensures isolation in instruments and testing devices.
- Consumer Electronics: Used in electronic devices requiring high voltage isolation.
