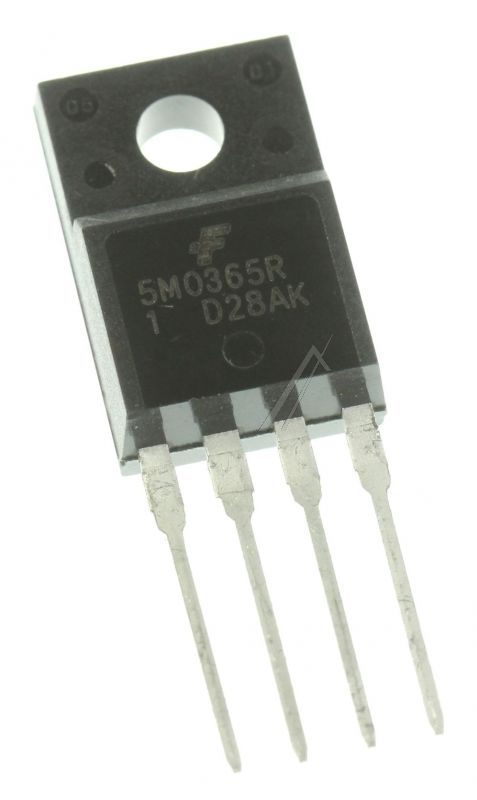

5M0365R Power manager
The 5M0365R is an integrated power management IC designed for use in power supply applications. It combines a high-voltage power MOSFET with a PWM controller, offering high efficiency, reduced component count, and simplified design for power conversion circuits. The 5M0365R is optimized for use in flyback converters, making it ideal for AC-DC power supplies, adapters, and other power management systems.
Key Features:
- Integrated high-voltage power MOSFET and PWM controller
- High efficiency
- Reduced component count
- Optimized for flyback converters
- Built-in protections: overvoltage, overcurrent, and thermal shutdown
- Simplified power supply design
- Compact package
- Drain-Source Voltage (VDS): 650V
- Maximum Output Power: Up to 36W (depending on application)
- Oscillation Frequency: 100 kHz (fixed)
- PWM Frequency Modulation: ±6 kHz
- Standby Power Consumption: < 0.1W
- Peak Drain Current: 1.4A
- RDS(on): 12Ω (typical)
- Overcurrent Protection: Yes
- Overvoltage Protection: Yes
- Thermal Shutdown: Yes
- Package Type: TO-220F-6L
- Operating Temperature Range: -40°C to +150°C
- AC-DC Power Supplies: Efficient power conversion in adapters and power supply units.
- Flyback Converters: Suitable for use in flyback converter designs for various applications.
- Battery Chargers: Power management in battery charging circuits.
- LED Drivers: Power regulation for LED lighting systems.
- Consumer Electronics: Power supply management in various household electronics.
- Industrial Power Systems: Reliable power management in industrial equipment.
