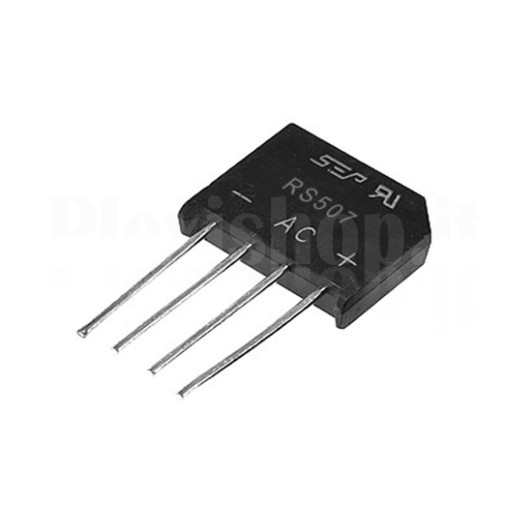

RS507 5A 700V bridge rectifier
This content will be shared across all product pages.
Description: The RS507 is a single-phase bridge rectifier designed for converting AC voltage to DC voltage in various electronic circuits and applications. It is suitable for use in power supplies, battery chargers, LED drivers, and other devices requiring efficient rectification with moderate current handling capabilities. The bridge rectifier is designed for reliability and performance, providing stable operation under varying load conditions.
Key Features:
- Single-phase bridge rectifier configuration
- Converts AC voltage to DC voltage
- Moderate current handling capability
- High surge current capability
- Compact and robust design
- RoHS compliant
- Peak Repetitive Reverse Voltage (V_RRM): 700V
- Average Rectified Output Current (I_O): 5A
- Surge Overload Rating: 200A (peak forward surge current, 8.3ms single half sine-wave)
- Maximum Forward Voltage Drop (V_F): 1.1V (at I_F = 5A, T_A = 25°C)
- Operating Temperature Range: -55°C to +150°C
- Package Type: Through Hole, D-34
- Power supplies
- Battery chargers
- LED lighting
- Industrial equipment
- Consumer electronics
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
