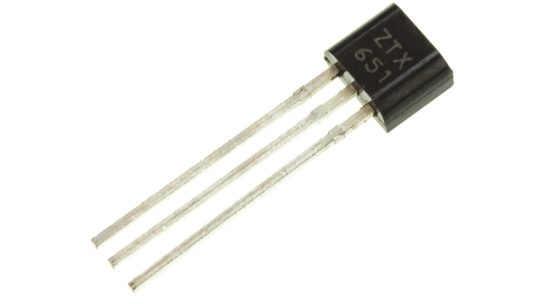

ZTX651
Description: The ZTX651 is a high-voltage, high-current NPN transistor designed for applications requiring robust performance in power switching and amplification circuits. It features a high collector-emitter voltage rating and is suitable for use in power supply regulators, motor controls, and other industrial applications where reliable switching and amplification are essential.
Key Features:
- NPN bipolar junction transistor (BJT)
- High voltage rating
- High current handling capability
- Suitable for power switching and amplification
- RoHS compliant
- Collector-Emitter Voltage (VCEO): 400V
- Collector-Base Voltage (VCBO): 400V
- Emitter-Base Voltage (VEBO): 7V
- Collector Current (IC): 1A
- Power Dissipation (Ptot): 1W
- Operating Temperature Range: -55°C to +150°C
- Package Type: TO-92
- Power supply regulators
- Motor controls
- Industrial automation
- Amplifier circuits
