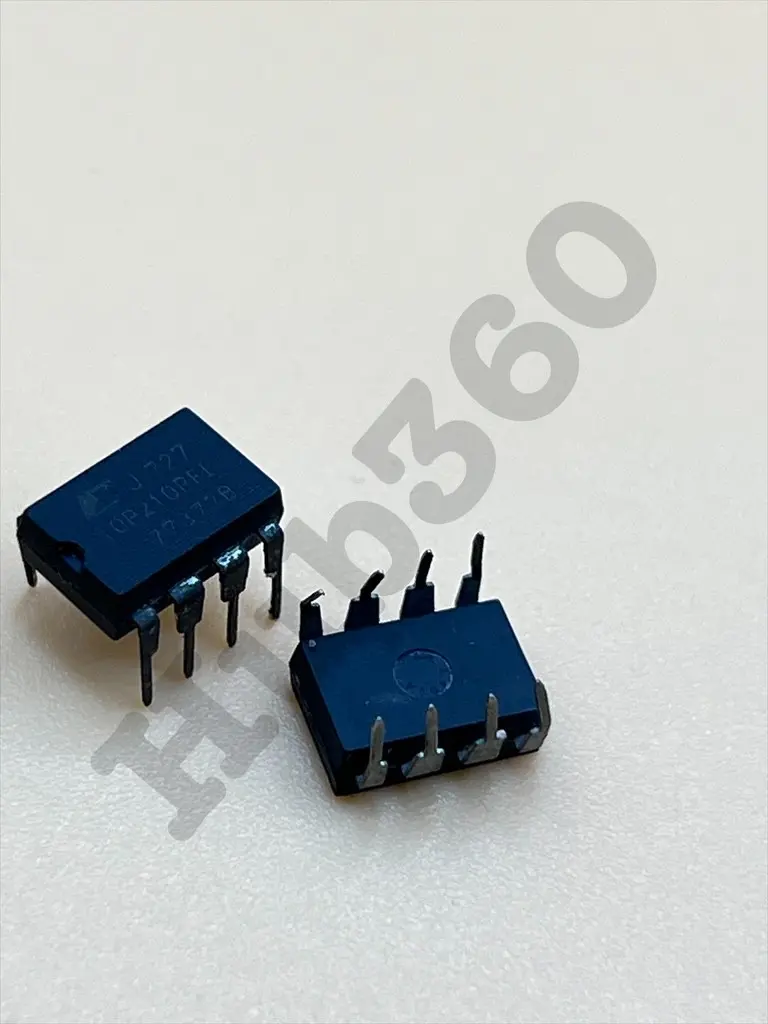

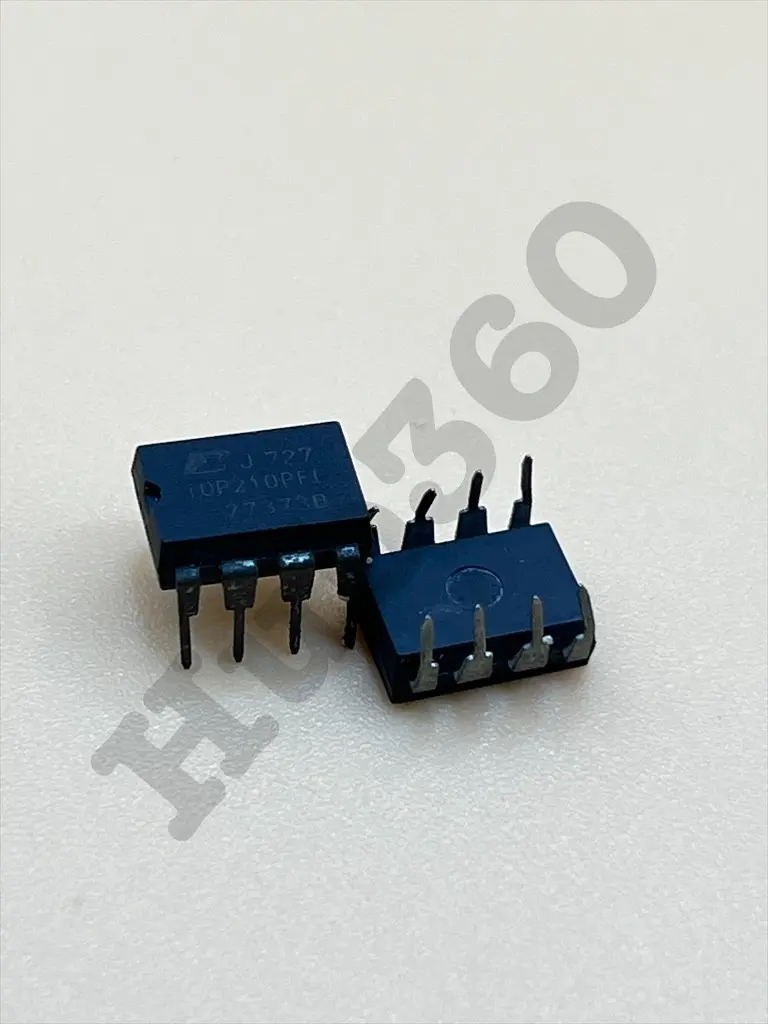

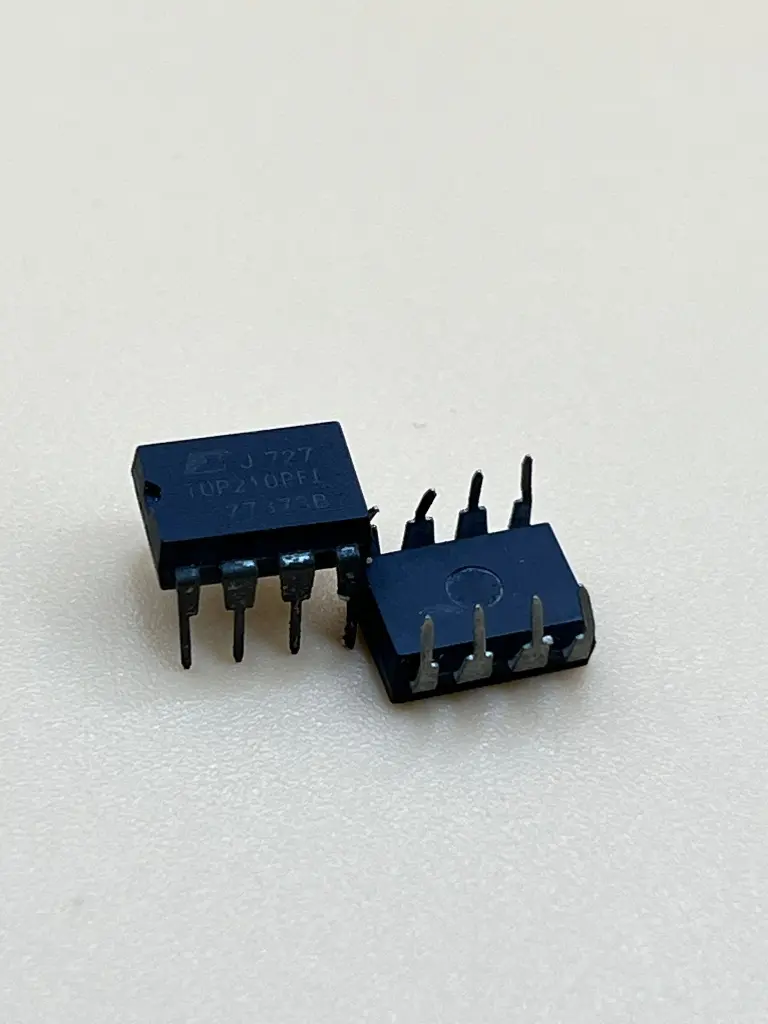

TOP210 power IC driver management chip

Description: The TOP210 is a monolithic high-voltage, high-performance power IC designed for offline switch mode power supply applications. It integrates a 700V power MOSFET, high voltage startup, current mode PWM control, fault protection, and other necessary functions onto a single chip. The TOP210 is known for its efficiency, reliability, and versatility in various power supply designs, offering enhanced performance and ease of use in both isolated and non-isolated configurations. Key Features:

• Integrated 700V MOSFET
• Current mode PWM control
• Programmable switching frequency up to 200 kHz
• Built-in frequency jittering for EMI reduction
• Auto-restart and fault protection features
• Line undervoltage lockout (UVLO)
• Thermal shutdown protection
• Soft start

Technical Specifications:

• Input Voltage Range: 85VAC to 265VAC
• Maximum Output Power: Up to 150W (depending on application and thermal conditions)
• Efficiency: Up to 85% (typical)
• Operating Frequency: Up to 200 kHz
• Startup Voltage: 20V (typical)
• Package Type: 8-pin DIP, 8-pin SOP

Applications:

• AC-DC power supplies
• LED lighting drivers
• Battery chargers
• Auxiliary power supplies
• Industrial and consumer electronics

Datasheet: For detailed technical information, refer to the TOP210 power IC datasheet.
