Description

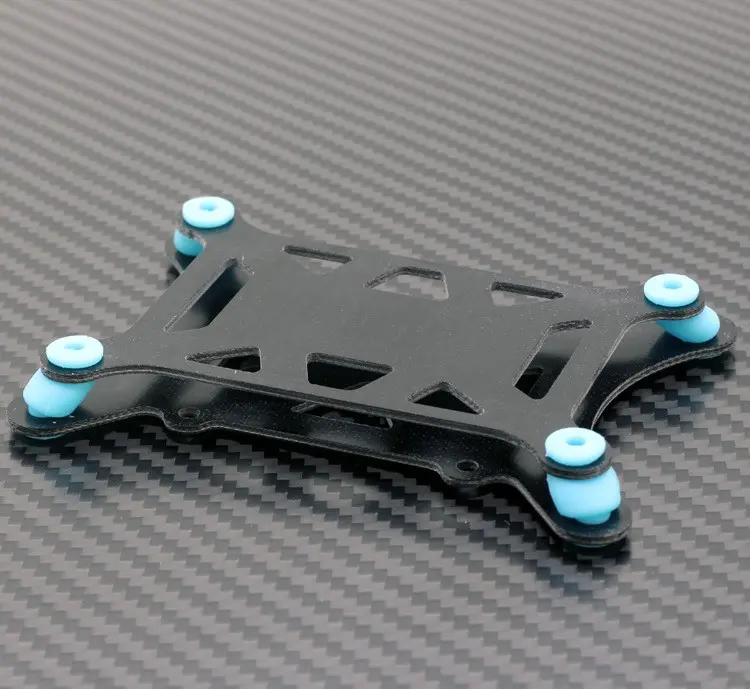

The Glass Fiber Board Anti-Vibration Damping Plate Mount is a dedicated isolation platform designed for flight controllers including APM 2.6, APM 2.8, Pixhawk, PX4, KK, and MWC series. Constructed from rigid glass fiber material, this two-plate system uses silicone damping balls to absorb motor and airframe vibrations before they reach sensitive inertial measurement units (IMUs). The result is cleaner sensor data, reduced "toilet bowling" effect, and more stable flight performance.
Key Features
- Brand new and high-quality construction
- Glass fiber flight controller anti-vibration plate compatible with Pixhawk, KK, MWC, and similar controllers
- Material: Glass fiber (rigid, non-conductive, lightweight)
- Large plate dimensions: 100 × 69 × 1.5 mm
- Small plate dimensions: 91 × 61 × 1.5 mm
- Total weight: 24 grams (complete assembly)
Specification
- Material: Glass fiber (FR-4 grade typical)
- Large plate size: 100 mm × 69 mm × 1.5 mm
- Small plate size: 91 mm × 61 mm × 1.5 mm
- Weight: 24 g (including plates and damping balls)
- Damping elements: 4 silicone anti-vibration balls (included)
- Mounting hardware: 2 double-sided adhesive tapes included
Applications
- Vibration isolation for APM 2.6, APM 2.8, Pixhawk, and PX4 flight controllers
- Mounting platform for KK and MWC series control boards
- General purpose anti-vibration mount for sensitive electronics in drones and UAVs
- Protection for IMUs and accelerometers from motor-induced high-frequency vibrations.
