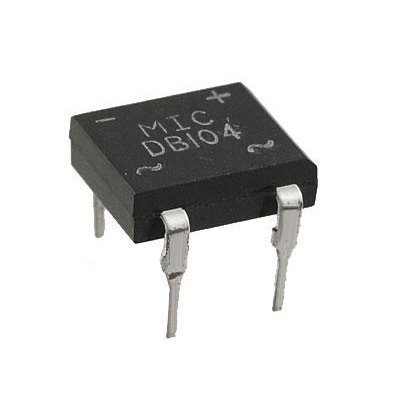

DB104 1A 400V bridge rectifier
Description: The DB104 is a single-phase bridge rectifier designed for converting AC voltage to DC voltage in various electronic circuits and applications. It is commonly used in power supplies, battery chargers, LED drivers, and other devices where efficient rectification is required. The bridge rectifier is compact in size and designed for easy integration into PCB layouts, providing reliable performance with moderate current handling capabilities.
Key Features:
- Single-phase bridge rectifier configuration
- Converts AC voltage to DC voltage
- Compact size for PCB integration
- High surge current capability
- RoHS compliant
- Peak Repetitive Reverse Voltage (V_RRM): 400V
- Average Rectified Output Current (I_O): 1A
- Surge Overload Rating: 30A (peak forward surge current, 8.3ms single half sine-wave)
- Maximum Forward Voltage Drop (V_F): 1.1V (at I_F = 1A, T_A = 25°C)
- Operating Temperature Range: -55°C to +150°C
- Package Type: Through Hole, DIP-4
- Power supplies
- Battery chargers
- LED lighting
- Consumer electronics
- Industrial control systems
