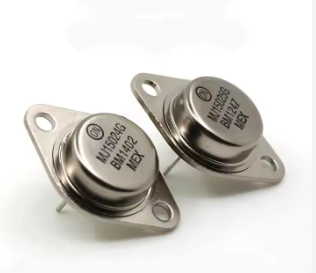

MJ15024G triode audio power amplifier
This content will be shared across all product pages.
Description: The MJ15024G is a high-performance NPN transistor designed for use in audio power amplifier circuits where high current and voltage capabilities are required. It is specifically optimized for linear amplifier applications, providing low distortion and high reliability. The transistor is housed in a TO-3 package, which ensures efficient heat dissipation and durability under various operating conditions.
Key Features:
- NPN silicon transistor
- High power handling capability
- Low distortion
- Excellent thermal stability
- Robust construction for reliable performance
- Collector-Emitter Voltage (VCEO): 250V
- Collector-Base Voltage (VCBO): 250V
- Collector Current (IC): 16A
- Power Dissipation (Ptot): 250W
- DC Current Gain (hFE): 15 to 150
- Operating Temperature Range: -65°C to +200°C
- Package Type: TO-3
- Audio power amplifiers
- High-power linear applications
- Power supplies
- Motor control
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
