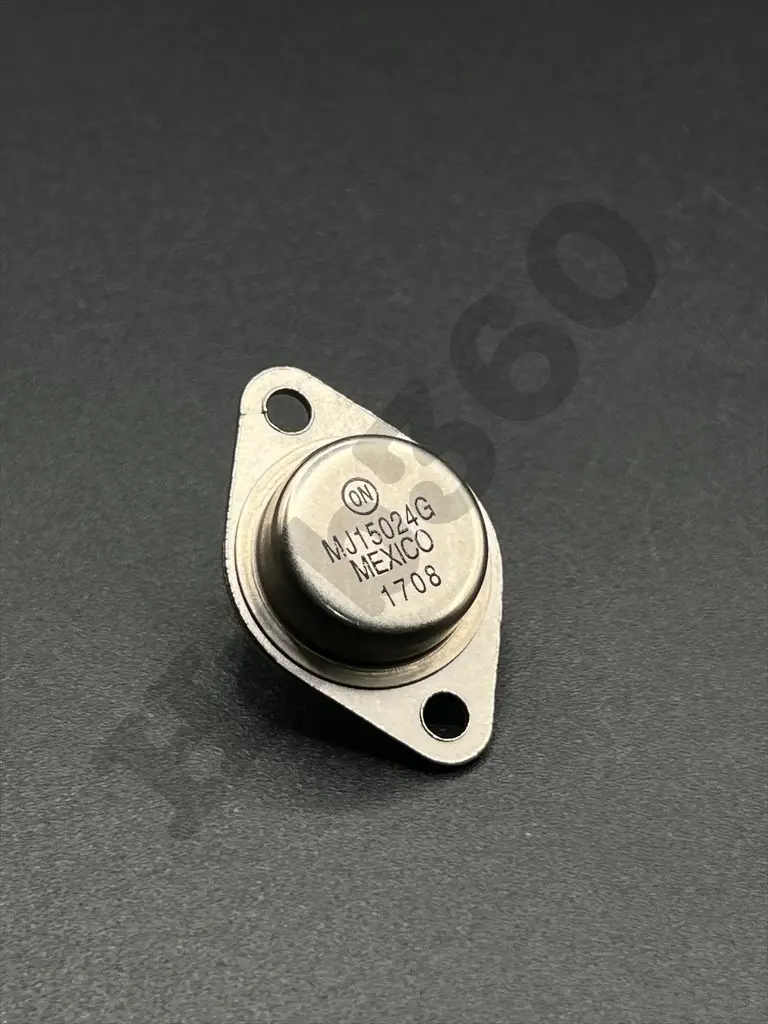

MJ15024G triode audio power amplifier
Description: The MJ15024G is a high-performance NPN transistor designed for use in audio power amplifier circuits where high current and voltage capabilities are required. It is specifically optimized for linear amplifier applications, providing low distortion and high reliability. The transistor is housed in a TO-3 package, which ensures efficient heat dissipation and durability under various operating conditions.
Key Features:
- NPN silicon transistor
- High power handling capability
- Low distortion
- Excellent thermal stability
- Robust construction for reliable performance
- Collector-Emitter Voltage (VCEO): 250V
- Collector-Base Voltage (VCBO): 250V
- Collector Current (IC): 16A
- Power Dissipation (Ptot): 250W
- DC Current Gain (hFE): 15 to 150
- Operating Temperature Range: -65°C to +200°C
- Package Type: TO-3
- Audio power amplifiers
- High-power linear applications
- Power supplies
- Motor control
