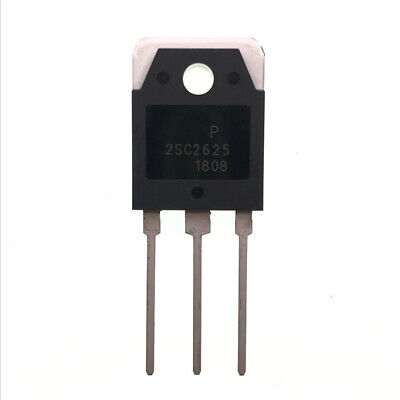

2SC2625 switching power supply
Description: The 2SC2625 is a high-speed switching transistor designed for use in switching power supply circuits. It features a low collector-emitter saturation voltage and high-speed switching capability, making it suitable for high-frequency applications. The transistor is housed in a TO-3P package, which provides good thermal conductivity and mechanical strength.
Key Features:
- Silicon NPN transistor
- High-speed switching
- Low collector-emitter saturation voltage
- High reliability and durability
- TO-3P package for efficient heat dissipation
- Collector-Base Voltage (VCBO): 700V
- Collector-Emitter Voltage (VCEO): 400V
- Emitter-Base Voltage (VEBO): 7V
- Collector Current (IC): 8A
- Power Dissipation (Ptot): 60W
- Operating Temperature Range: -55°C to +150°C
- Package Type: TO-3P
- Switching power supplies
- DC-DC converters
- Electronic ballasts
- Inverters
