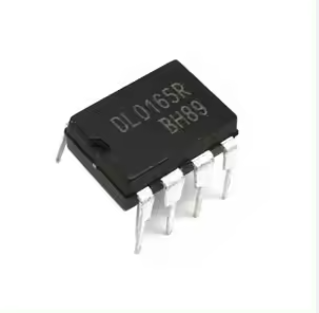

DL0165R LCD Power supply chip
Description: The DL0165R is a high-performance LCD power supply chip optimized for universal mains applications. It integrates a high-voltage power MOSFET, PWM controller, startup control, and various protection features into a single package, simplifying the design of power supply circuits for LCDs. The DL0165R is suitable for use in a wide range of applications, including LCD monitors, LCD TVs, and other display systems.
Key Features:
- High-voltage power MOSFET
- Wide operating voltage range
- Integrated PWM controller
- Low standby power consumption
- Overload protection
- Over-voltage protection
- Thermal shutdown protection
- Package Type: DIP-8
- Supply Voltage (Vcc): 8V to 23V
- Output Current (Io): 650mA
- Switching Frequency: 100 kHz
- Thermal Shutdown: Yes
- Dimensions: 9.81 mm x 6.35 mm x 4.57 mm
- Weight: 1 g
- LCD Monitors: Used for designing efficient power supplies for LCD monitors.
- LCD TVs: Ideal for power supplies in LCD television sets.
- Display Systems: Suitable for various types of display systems requiring reliable power.
- Consumer Electronics: Used in consumer electronics that feature LCD displays.
- Industrial Control: Suitable for power supply in industrial control systems with LCD interfaces.
