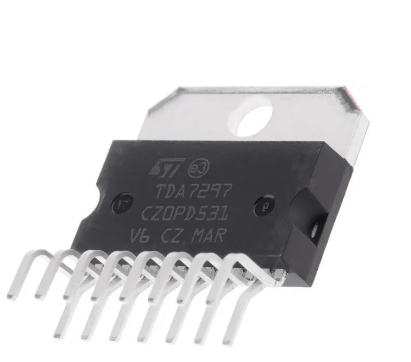

TDA7297 sound amplifier Chip

Description:

The TDA7297 is a high-performance, dual-channel bridge amplifier integrated circuit (IC) designed for audio applications requiring efficient power amplification with minimal external components. It delivers a total output power of 30W (15W per channel) into a 4-ohm load, making it suitable for various audio systems, including portable radios, TVs, and small home audio setups.

Key Features:

• Dual bridge amplifier configuration for efficient power output
• High output power: 15W per channel into a 4-ohm load
• Wide supply voltage range (6V to 18V) for flexibility
• Minimal external components required (no SVR capacitor, no bootstrap, no Boucherot cells)
• Internally fixed gain for simplified design
• Stand-by and mute functions for power saving and audio control
• Short circuit and thermal overload protection

Technical Specifications:

• Package Type: SOIC-16
• Supply Voltage: 6V to 18V
• Output Power: 15W per channel into a 4-ohm load
• Total Harmonic Distortion (THD): Typically 0.1%
• Signal-to-Noise Ratio (SNR): Typically 80 dB
• Operating Temperature Range: -40°C to +85°C

Applications:

• Portable radios and TVs
• Small home audio systems
• Car audio systems (with appropriate heat sinking and power supply)
• Battery-powered audio devices

Datasheet:

For detailed technical specifications, pin configurations, and application notes, refer to the TDA7297 datasheet.
