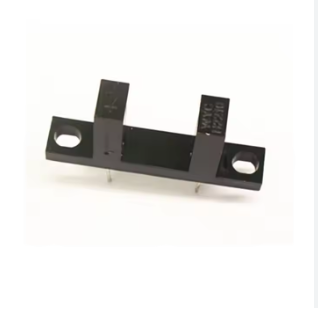

H2210 photoelectric switch sensor
Description: The H2210 Photoelectric Switch Sensor is designed for accurate and reliable object detection using a slot-type through-beam configuration. This sensor is well-suited for various industrial and automation applications, including machinery automation, packaging lines, and conveyor systems. The H2210 ensures high detection accuracy and offers a robust construction in a compact design, facilitating easy integration and installation.
Key Features:
- Slot-type (through-beam) photoelectric switch
- High detection accuracy
- Compact and durable design
- Fast response time
- Easy installation and alignment
- RoHS compliant
- Detection Method: Slot-type (through-beam)
- Slot Width: 5mm
- Response Time: ≤ 0.5ms
- Operating Voltage: 5-24V DC
- Output Type: Transistor (NPN/PNP, NO/NC)
- Current Consumption: ≤ 20mA
- Operating Temperature Range: -25°C to +85°C
- Protection Rating: IP50
- Housing Material: Plastic
- Machinery automation
- Packaging lines
- Conveyor systems
- Industrial automation
- Robotics
