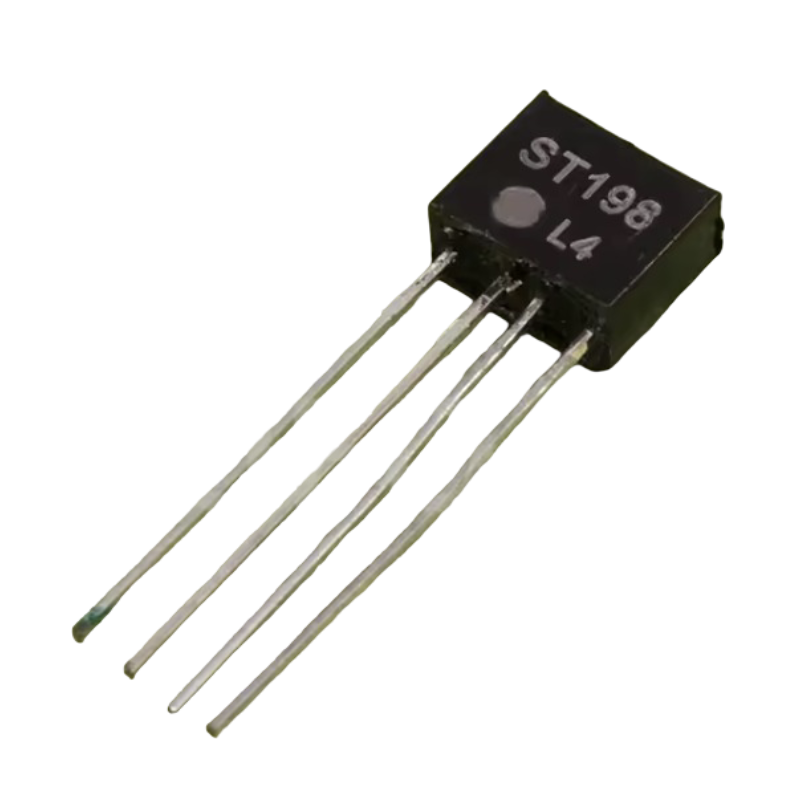

ST198 Reflective photoelectric sensor

https://www.hub360.cc/web/image/product.template/14886/image_1920?unique=bd1def9
(0 review)
5 sold in last 24 hours

₦ 1,023.26 1023.26 NGN ₦ 1,023.26 Tax Excluded

₦ 1,100.00 Tax Excluded

Not Available For Sale

(₦ 0.00 / Units)
2 people are viewing this right now

This combination does not exist.

This content will be shared across all product pages.

Contact Us
The ST198 Reflective Photoelectric Sensor is designed for precise and reliable detection of objects in a variety of applications. Utilizing infrared light, this sensor can detect the presence or absence of objects without direct contact, making it ideal for automation, robotics, and industrial applications. The compact and durable design ensures longevity and consistent performance in diverse environments. Key Features:
  • Reflective sensing technology
  • High sensitivity and accuracy
  • Compact and robust design
  • Easy installation and adjustment
  • Long sensing range
Technical Specifications:
  • Sensing Method: Reflective
  • Sensing Distance: 10-30 cm (adjustable)
  • Light Source: Infrared LED
  • Supply Voltage: 12V DC
  • Output Type: NPN/PNP (depending on model)
  • Response Time: <1ms
  • Operating Temperature: -10°C to +50°C
  • Housing Material: ABS plastic
  • Protection Rating: IP65
Applications:
  • Automation systems
  • Robotics
  • Conveyor systems
  • Object detection
  • Packaging machinery
  • Safety barriers
Usage:
  1. Installation: Mount the sensor in a stable position where it can detect the target object.
  2. Connection: Connect the sensor to a suitable power supply and interface with your control system.
  3. Adjustment: Adjust the sensitivity to ensure reliable detection of the target object within the desired range.
  4. Testing: Test the sensor by placing objects within the sensing range and observing the output signal.
Caution:
  • Ensure correct wiring to avoid damage to the sensor.
  • Do not expose the sensor to direct sunlight or strong light sources.
  • Keep the sensor lens clean for optimal performance.

Technical Specifications:

  • Logic Family: CMOS
  • Number of Channels: 3
  • Switch Configuration: Single-Pole Double-Throw (SPDT)
  • Supply Voltage Range: 3V to 15V
  • “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
  • “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
  • Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
  • Maximum Operating Frequency: 40 MHz at V_DD = 10V

Applications:

  • Signal routing and switching
  • Analog and digital multiplexing
  • Audio and video signal processing
  • Data acquisition systems
  • Test equipment
