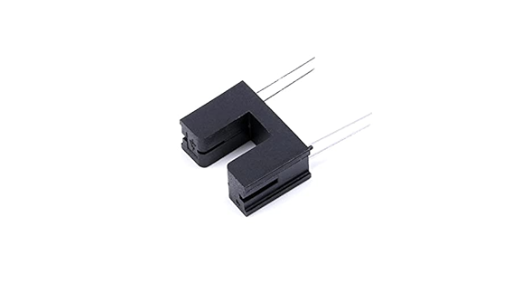

ITR-9606 photoelectric switch sensor
The ITR-9606 is a reflective photomicrosensor designed for accurate object detection. It combines an infrared emitting diode (IR LED) and a phototransistor in a single package to detect the presence of an object when it interrupts the emitted light.
Key Features:
- Reflective type photomicrosensor.
- Compact design with built-in IR LED and phototransistor.
- High sensitivity and reliable performance.
- Forward Voltage (Vf): 1.2 V max at 20 mA
- Collector-Emitter Voltage (Vceo): 30 V
- Collector Current (Ic): 20 mA max
- Operating Temperature Range: -25°C to 85°C
- Detection Range: 1 mm to 15 mm (depending on object reflectivity)
- Object detection in automation systems
- Position sensors in printers and copiers
- General-purpose reflective sensing
- Ideal for use in confined spaces where accurate reflective sensing is required.
- Avoid direct exposure to sunlight or strong ambient light, which can affect sensor performance.
