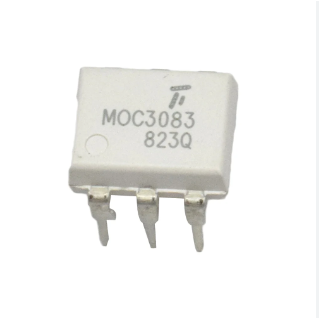

MOC3083 optocoupler
This content will be shared across all product pages.
Description:
The MOC3083 is an optocoupler designed for triggering triacs and provides electrical isolation between input and output circuits. It consists of a GaAs infrared LED optically coupled to a monolithic silicon detector performing the function of a zero voltage crossing bilateral triac driver. The MOC3083 is commonly used in applications that require interfacing logic level control signals to high voltage AC loads, ensuring safe and reliable switching.
Key Features:
- Zero voltage crossing bilateral triac driver
- High isolation voltage: 5300 Vrms
- GaAs infrared LED and silicon detector
- Peak blocking voltage: 600V
- High static dv/dt: 1000 V/μs minimum
- Low input current trigger: 5 mA maximum
- UL approved (File #E90700)
- Package Type: 6-pin DIP
- Isolation Voltage: 5300 Vrms
- Forward Voltage (V_F): 1.2V (typical) at 20mA
- Reverse Voltage (V_R): 6V
- Forward Current (I_F): 60mA (maximum)
- Peak Blocking Voltage (V_DRM): 600V
- On-State RMS Current (I_T(RMS)): 100mA
- Trigger LED Current (I_FT): 5mA (maximum)
- Holding Current (I_H): 280µA (typical)
- Operating Temperature Range (T_A): -40°C to +85°C
- Solenoid/Valve Controls: Reliable switching for solenoid and valve applications.
- Static Power Switches: Control of high voltage AC loads.
- Temperature Controls: Interfacing temperature sensors to heating elements.
- AC Motor Starters: Safe starting and stopping of AC motors.
- Lighting Controls: Dimming and switching of lighting systems.
- AC Motor Drives: Controlling the operation of AC motor drives.
- Solid State Relays: Isolation and control in solid state relay circuits.
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
