Description

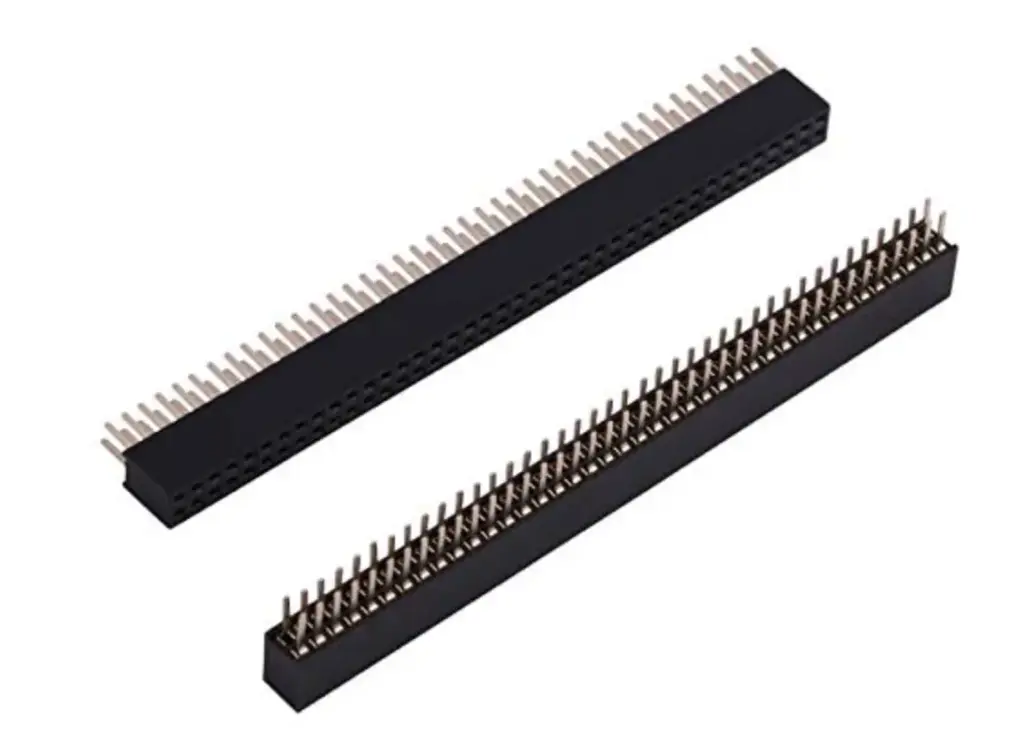

The 1.27mm 40-Pin Female Header DIL Socket is a high-quality, dual in-line (DIL) connector designed for reliable electrical connections in a wide range of electronic applications. With a fine 1.27mm (0.05 inch) pitch, it’s ideal for high-density circuit designs where space efficiency is essential. This female header provides secure and durable connectivity between PCBs or between a PCB and other electronic modules, making it suitable for both prototyping and production environments.
Key Features
- 40-pin female header with dual in-line configuration
- 1.27mm (0.05 inch) pitch for compact, high-density layouts
- Provides strong, reliable, and durable electrical connections
- Compatible with standard 1.27mm pin headers
- Easy to solder and integrate onto PCBs
- Robust thermoplastic housing with excellent heat resistance
- Ideal for both prototyping and final production assemblies
Specification
- Number of Pins: 40
- Pitch: 1.27mm (0.05 inch)
- Configuration: Dual In-Line (DIL)
- Contact Material: Phosphor bronze
- Contact Plating: Gold or tin over nickel
- Insulator Material: Thermoplastic UL94V-0 (flame-retardant)
- Current Rating: 1A per contact
- Voltage Rating: 150V AC/DC
- Operating Temperature Range: -40°C to +105°C
- Insertion Force: ≤ 100g per contact
- Withdrawal Force: ≥ 15g per contact
- Mounting Type: Through-hole
Application
- Printed Circuit Boards (PCBs): Reliable interconnection between modules and components
- Prototyping: Simplifies circuit design and testing
- Embedded Systems: Commonly used with microcontroller and microprocessor projects
- Industrial Control: Connects sensors, controllers, and interface modules
- Consumer Electronics: Provides compact connections in electronic devices
- Networking Equipment: Interfaces modules in communication and networking hardware
- Automotive Electronics: Connects various control and monitoring modules
