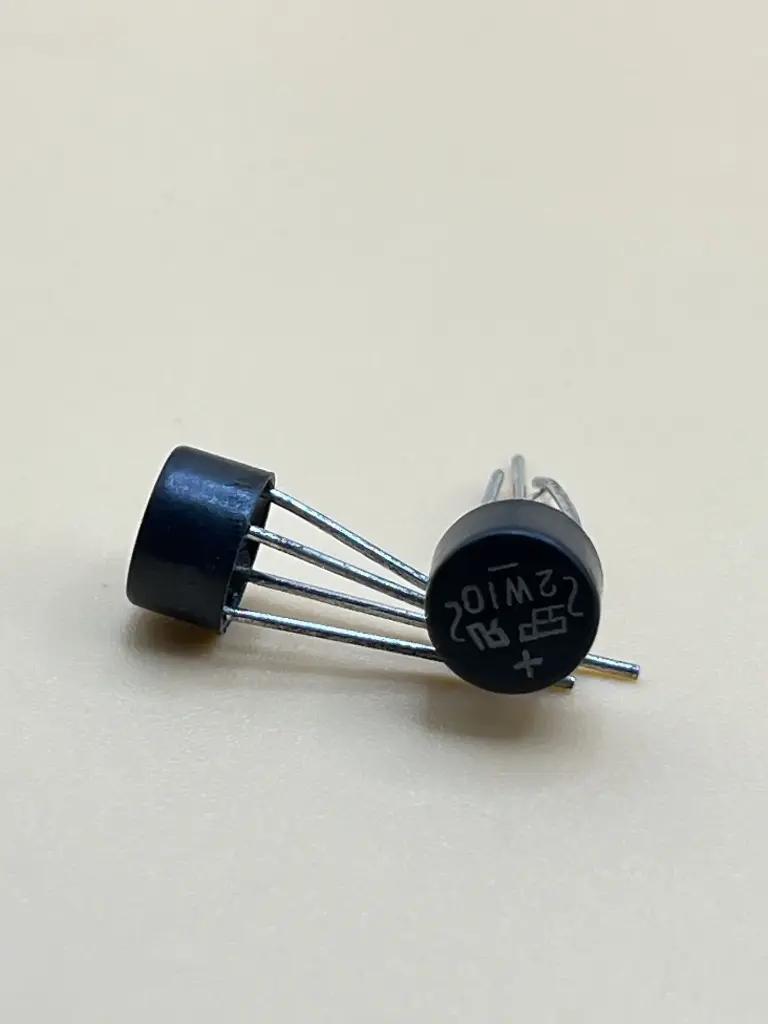

2W10 2A 1000V bridge rectifier
Description: The 2W10 is a bridge rectifier diode module designed for converting alternating current (AC) to direct current (DC) in various electronic circuits. It consists of four diodes configured in a bridge arrangement, which allows efficient rectification of AC voltage to DC voltage. The 2W10 is commonly used in power supplies, battery chargers, consumer electronics, and other applications where reliable rectification and moderate current capability are required.
Key Features:
- Bridge rectifier module
- Maximum Average Rectified Output Current (I_O): 2A
- Maximum Repetitive Peak Reverse Voltage (V_RRM): 1000V
- Low forward voltage drop
- High surge current capability
- Compact and durable construction
- Maximum Average Rectified Output Current (I_O): 2A
- Peak Repetitive Reverse Voltage (V_RRM): 1000V
- Maximum RMS Bridge Input Voltage (V_RMS): 700V
- Maximum DC Blocking Voltage (V_DC): 1000V
- Maximum Forward Voltage Drop (V_F): 1.1V (at I_F = 2A, T_A = 25°C)
- Operating Temperature Range: -55°C to +150°C
- Package Type: 4-SIP
- Power supplies
- Battery chargers
- LED drivers
- Industrial automation
- Consumer electronics
