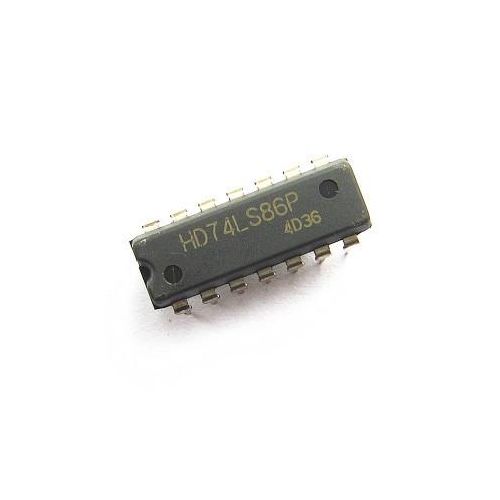

HD74LS86P (74LS86)

Description: The HD74LS86P is a quadruple 2-input exclusive-OR (XOR) gate IC. It contains four independent XOR gates, each with two inputs and one output. The XOR gates perform the exclusive-OR function, outputting a high signal only when the inputs differ (one input is high, and the other is low). This IC is widely used in digital electronics for various applications requiring logical operations such as data comparison, error detection, parity generation, and signal processing. Key Features:

• Quadruple 2-input exclusive-OR gates
• High-speed operation
• TTL compatible inputs and outputs
• Low power consumption
• Direct implementation of exclusive-OR logic function

Technical Specifications:

• Package Type: 14-pin DIP (Dual In-line Package)
• Supply Voltage (VCC): 4.75V to 5.25V
• Input Voltage (VIN): 0V to VCC
• Output Voltage (VOUT): 0V to VCC
• Input High Voltage (VIH): 2V (min) at VCC = 5V
• Input Low Voltage (VIL): 0.8V (max) at VCC = 5V
• Output Current (IOH, IOL): ±4 mA (max)
• Quiescent Supply Current (ICC): 4 mA (typical) at VCC = 5V
• Operating Temperature Range: 0°C to +70°C

Applications:

• Digital arithmetic operations
• Data comparison and processing
• Error detection and correction
• Parity generation and checking
• Signal inversion and transformation

Datasheet: For detailed technical specifications and application notes, please refer to the HD74LS86P datasheet.
