Description

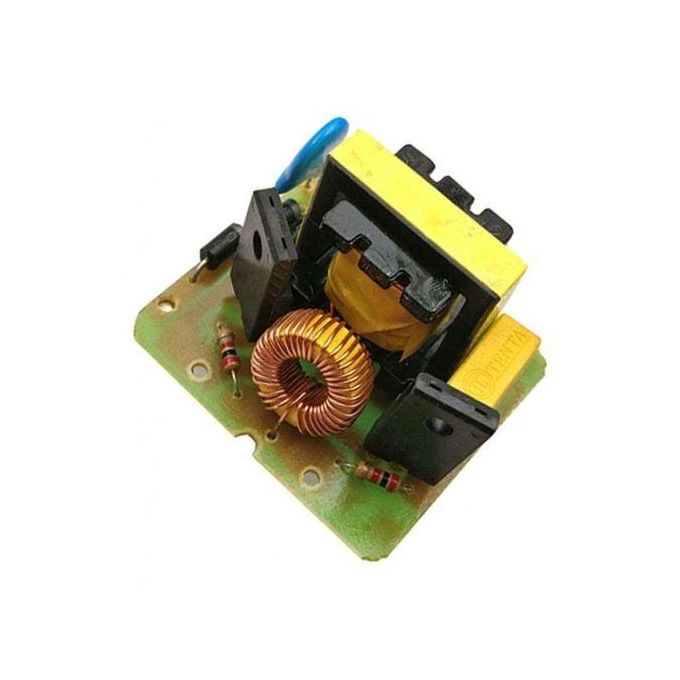

The 12V to 220V High-Frequency Inverter Module (40W) is a compact DC-to-AC power conversion board designed for low-power household and DIY applications. It converts 8V–13V DC battery input into 220V AC high-frequency output, making it suitable for powering small AC loads such as LED bulbs, chargers, and energy-saving lamps.
This inverter uses a high-frequency switching design, allowing for a smaller size and lightweight construction compared to traditional transformers. The modular design also allows multiple boards to be connected in parallel to increase total output power for larger applications.
Key Features
- DC to AC Conversion: Converts 8V–13V DC battery power to 220V AC
- 40W Output per Module: Suitable for low-power AC loads
- High-Frequency Inverter Design: Compact size with stable output
- Modular & Expandable: Multiple modules can be connected in parallel for higher wattage
- Lightweight & Compact: Ideal for portable and embedded projects
- DIY-Friendly: Suitable for learning, experimentation, and small inverter builds
Specification
- Input Voltage: DC 8V–13V (12V recommended)
- Output Voltage: AC 220V (high-frequency, non-pure sine)
- Rated Output Power: Up to 40W per module
- Parallel Expansion: Supports higher output power when multiple boards are connected
- Inverter Type: High-frequency switching inverter
- Assembly: Manual soldering required (no pre-attached wires)
Output Power Reference (Typical)
- 8V input: ~1W – 10W
- 10V input: ~1W – 15W
- 12V input: ~1W – 26W (typical), higher under optimal conditions
- 14V input (max): ~1W – 35W
⚠ Output power depends on load type, input voltage stability, cooling, and wiring quality.
Wiring & Output Notes
-
A + B terminals:
- 220V AC output
- Recommended load: 1W – 15W (overload protection active)
-
A + C terminals:
- 220V AC output
- Supports higher loads up to 40W
- Some loads may be incompatible
-
Parallel Mode:
- Multiple modules can be connected for higher output (up to ~200W total with sufficient modules and cooling)
Applications
- Power backup for LED lamps, routers, modems, and phone chargers
- Portable AC power for camping and outdoor use
- DIY solar inverter and battery projects
- Learning and experimentation with inverter circuits
- Small household electronics (not for high-power appliances)
Important Notes
- This is a high-frequency AC output, not pure sine wave
-
Standard multimeters may show incorrect voltage readings
- Use a high-frequency AC meter or test with a known load
- Not suitable for motors, refrigerators, irons, heaters, or inductive loads
- Do not exceed rated power or input voltage
- Proper heat dissipation is required for higher loads
- Manual wiring and soldering are required
Why Choose This Inverter Module?
✔ Compact and lightweight for portable projects
✔ Expandable design for higher power needs
✔ Efficient high-frequency conversion
✔ Ideal for DIY, learning, and low-power AC applications
