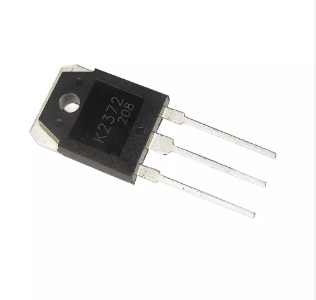

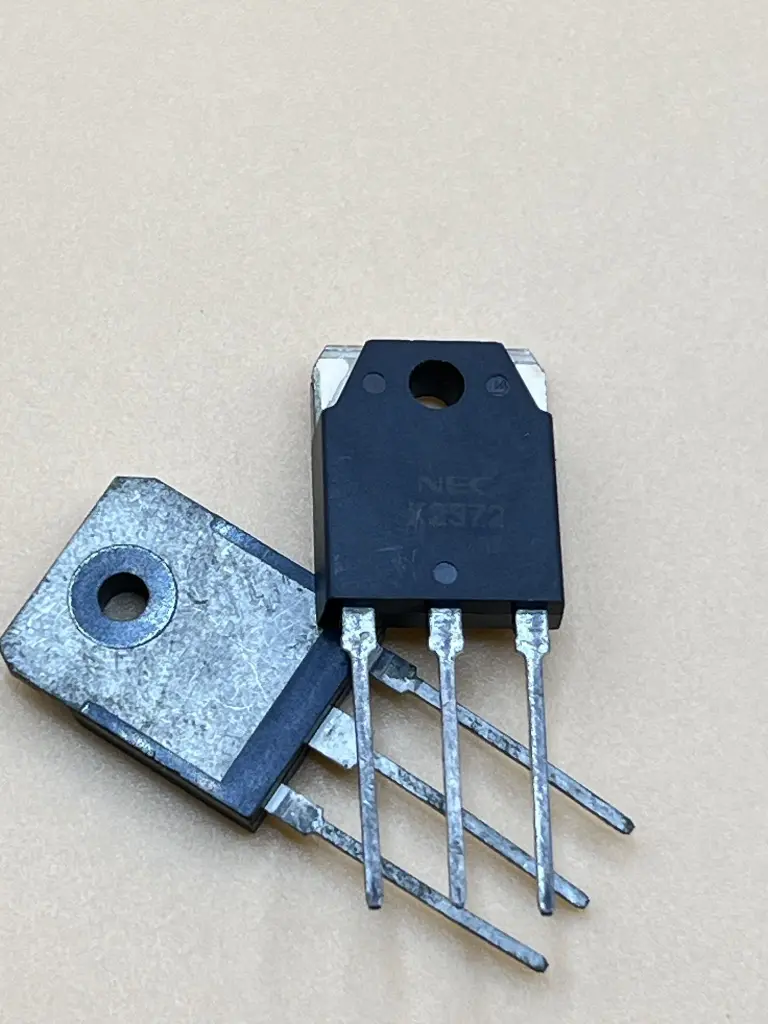

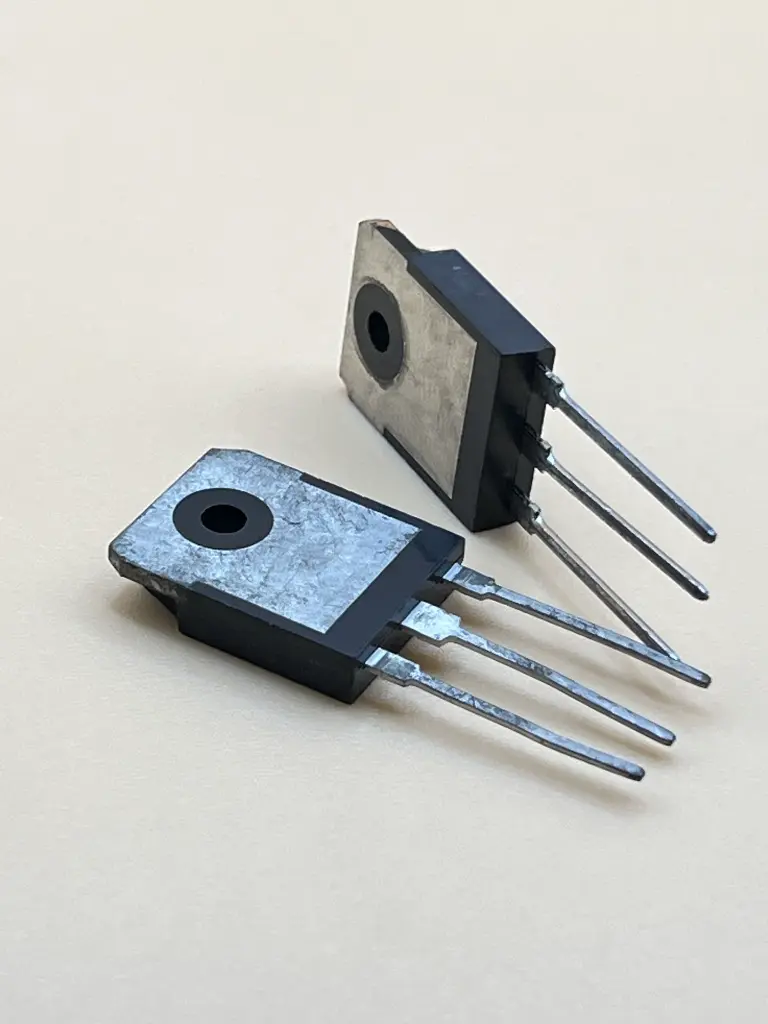

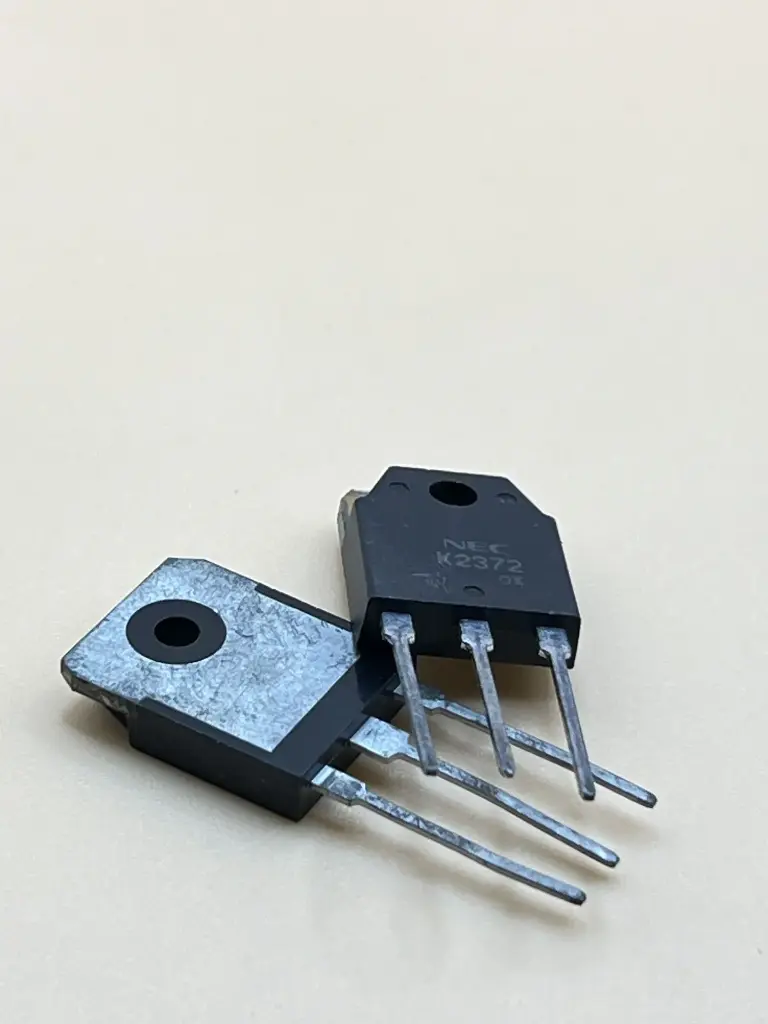

2SK2372 Transistor
This content will be shared across all product pages.
Description: The 2SK2372 is a power MOSFET transistor designed for high-speed switching applications in power supplies, motor controls, inverters, and other electronic circuits requiring efficient power handling. This MOSFET offers low on-resistance and high current capability, making it suitable for applications demanding high efficiency and reliability.
Key Features:
- Power MOSFET transistor
- High-speed switching capability
- Low on-resistance for efficient power handling
- High current capability
- RoHS compliant
- Drain-Source Voltage (V_DSS): 900V
- Continuous Drain Current (I_D): 7A
- Pulsed Drain Current (I_DP): 28A
- Gate-Source Voltage (V_GSS): ±30V
- On-Resistance (R_DS(on)): 1.1Ω (max) at V_GS = 10V, I_D = 3.5A
- Total Gate Charge (Q_g): 48nC (typical)
- Operating Temperature Range: -55°C to +150°C
- Package Type: TO-220
- Power supplies
- Motor controls
- Inverters
- Switching regulators
- Industrial automation
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
