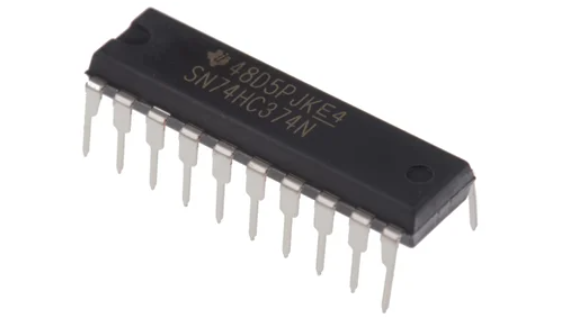

SN74HC374N (74HC374)
Description:
The SN74HC374N is an octal D-type flip-flop with 3-state outputs, designed for high-speed CMOS logic applications. This device features eight edge-triggered D-type flip-flops with individual D inputs and 3-state true outputs. A buffered clock input (CP) and an output control (OC) are common to all flip-flops. The SN74HC374N is commonly used in data storage and transfer applications where high-speed operation and low power consumption are required.
Key Features:
- Octal D-type flip-flop with 3-state outputs
- Edge-triggered on the rising edge of the clock
- Wide operating voltage range: 2V to 6V
- High-speed CMOS technology
- Low power consumption
- Direct clear function
- Inputs and outputs are protected against static discharge
- 3-state outputs for bus-oriented applications
- Package Type: 20-pin DIP
- Supply Voltage (V_CC): 2V to 6V
- Input Voltage (V_IN): 0V to V_CC
- Output Voltage (V_OUT): 0V to V_CC
- Input High Voltage (V_IH): 3.15V (minimum) at V_CC = 6V
- Input Low Voltage (V_IL): 1.35V (maximum) at V_CC = 6V
- Output Current (I_O): ±25mA
- Quiescent Supply Current (I_CC): 8µA (maximum)
- Propagation Delay Time: 16ns (typical) at V_CC = 5V, C_L = 15pF
- Operating Temperature Range: -40°C to +85°C
- Data Storage: Temporary data storage in digital systems.
- Data Transfer: High-speed data transfer between subsystems.
- Bus-Oriented Applications: Driving and receiving data on shared buses.
- Digital Systems: Implementing control and synchronization logic in microprocessors and other digital circuits.
