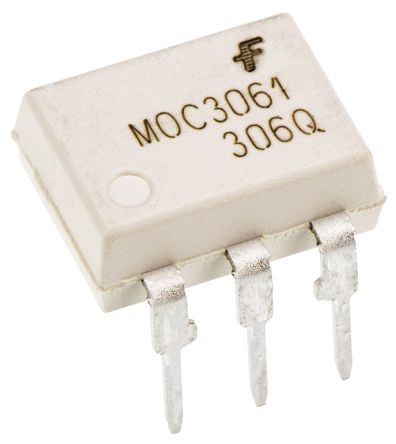

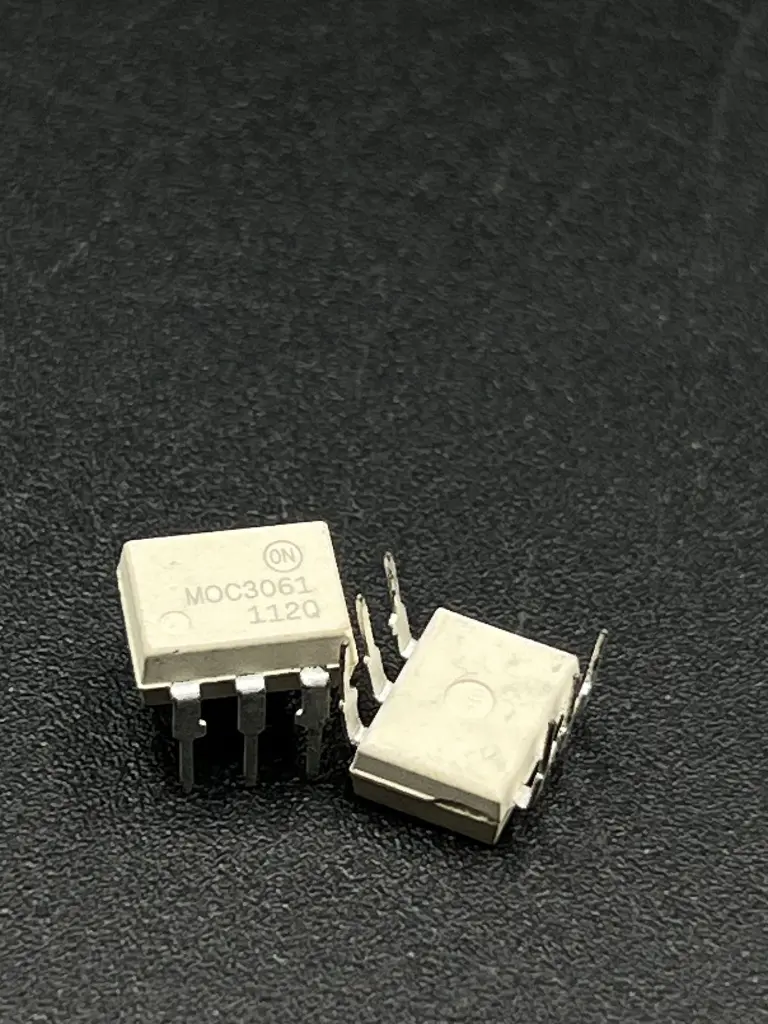

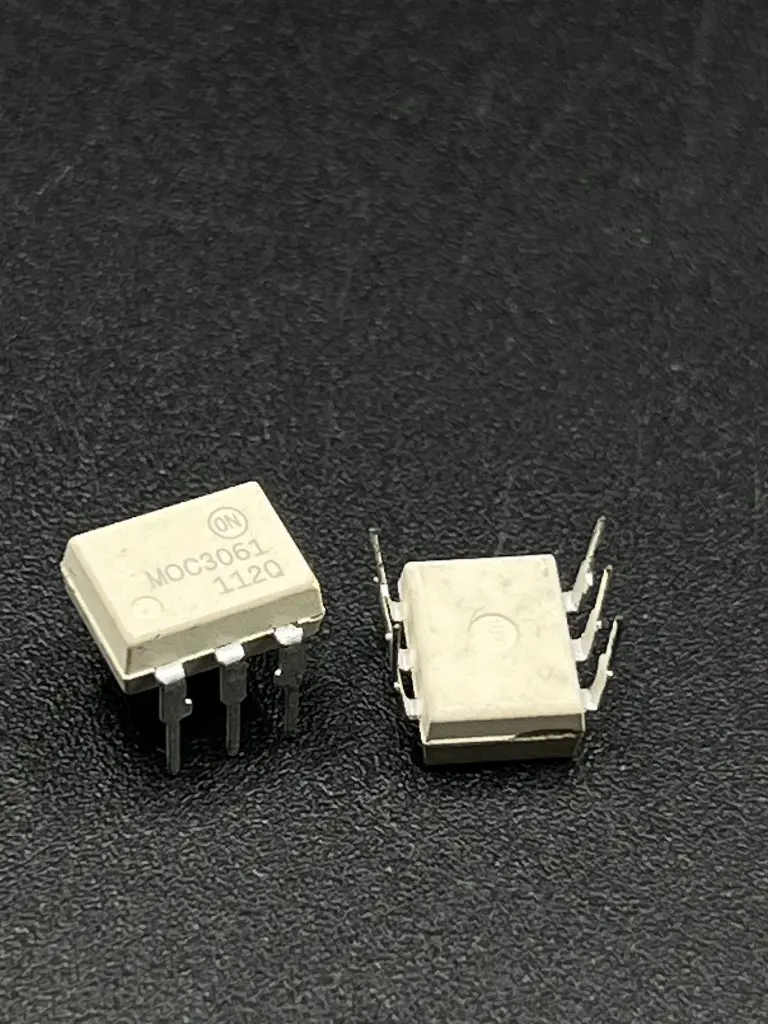

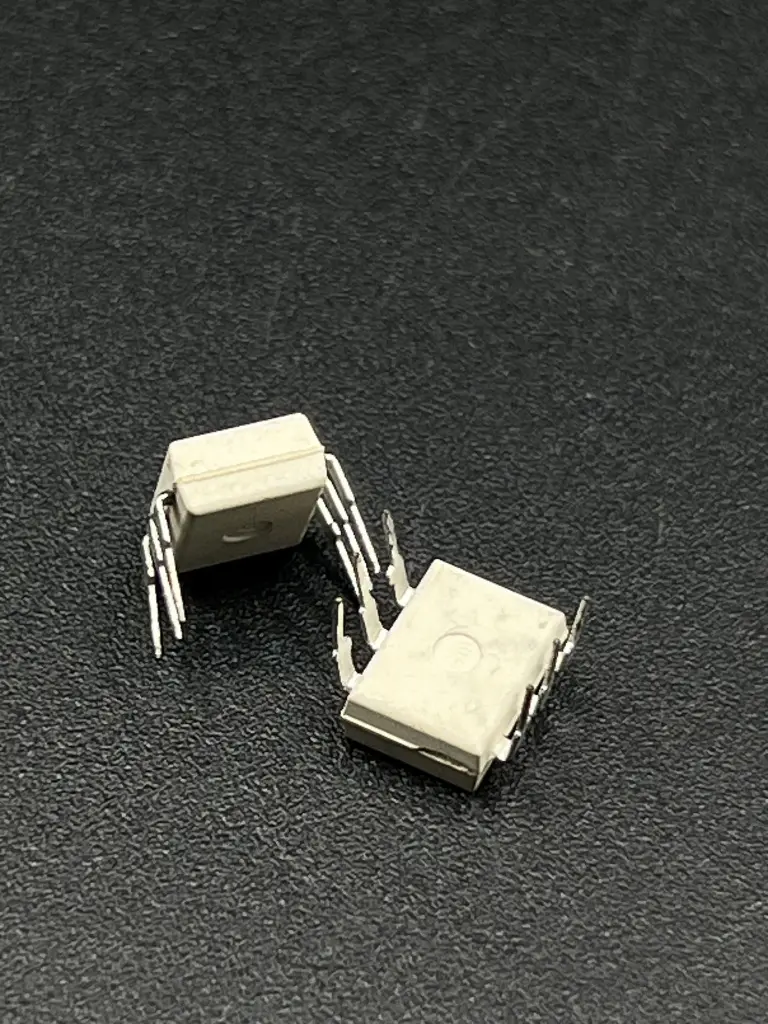

MOC3061 optocoupler
Description:
The MOC3061 is an optocoupler consisting of a GaAs infrared emitting diode optically coupled to a monolithic silicon detector, designed to function as a zero voltage crossing bilateral TRIAC driver. This device facilitates the interface of low-voltage logic signals with equipment powered by 115/240 VAC lines, such as solid-state relays, industrial controls, motors, and consumer appliances.
Key Features:
- Simplifies Logic Control of 115/240 VAC Power
- Zero Voltage Crossing to Minimize Conducted and Radiated Line Noise
- 600 V Peak Blocking Voltage
- Superior Static dv/dt: 600 V/µs (MOC3061M)
- Safety and Regulatory Approvals: UL1577, 4170 VACRMS for 1 Minute, DIN EN/IEC60747−5−5
- Pb-Free Devices
- Package Type: PDIP6 8.51x6.35, 2.54P
- Input Forward Voltage (VF): 1.3 to 1.5 V
- Reverse Leakage Current (IR): 0.005 to 100 µA
- Peak Blocking Current (IDRM1): 10 to 500 nA
- Critical Rate of Rise of Off-State Voltage (dv/dt): 600 to 1500 V/µs
- LED Trigger Current (IFT): 5 to 15 mA
- Peak On-State Voltage (VTM): 1.8 to 3.0 V
- Holding Current (IH): 500 µA
- Inhibit Voltage (VINH): 12 to 20 V
- Leakage in Inhibited State (IDRM2): up to 2 mA
- Solenoid/Valve Controls
- Static Power Switches
- Temperature Controls
- AC Motor Starters
- Lighting Controls
- AC Motor Drives
- E.M. Contactors
- Solid State Relays
