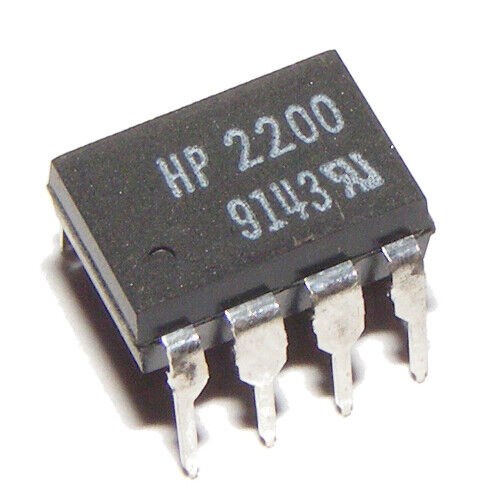

HCPL-2200 (A2200)
This content will be shared across all product pages.
The HCPL-2200 is a high-speed optocoupler featuring a GaAsP light-emitting diode and an integrated high-gain photon detector. This device provides electrical isolation between input and output, making it suitable for applications requiring high-speed data transmission and signal isolation. The HCPL-2200 is designed for use in industrial and consumer electronic applications where reliable and fast signal transfer is essential.
Key Features:
- High-speed optocoupler
- High input-to-output isolation voltage: 2500 Vrms
- TTL compatible
- Open-collector output
- Low input current requirement
- High common-mode transient immunity
- Wide operating temperature range
- Compact 8-pin DIP package
- Package Type: DIP-8
- Isolation Voltage: 2500 Vrms
- Forward Voltage (VF): 1.4 V (Typical)
- Reverse Voltage (VR): 5 V
- Input Current (IF): 20 mA (Maximum)
- Supply Voltage (VCC): 4.5 V to 20 V
- Output Voltage (VO): 0.5 V (Maximum)
- Output Current (IO): 8 mA (Maximum)
- Propagation Delay Time (tPHL/tPLH): 100 ns (Typical)
- Common-Mode Rejection (CMR): 1000 V/µs (Minimum)
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature Range: -55°C to +125°C
- Power Dissipation: 85 mW per channel
- Data Communication: Suitable for high-speed data transmission and signal isolation in communication systems.
- Microprocessor Interfacing: Ideal for isolating microprocessor input and output signals.
- Power Supply Isolation: Provides isolation between control and power sections in power supplies.
- Industrial Control Systems: Used in PLCs, motor controllers, and other industrial automation equipment.
- Consumer Electronics: Ensures safe and reliable signal transmission in electronic devices.
- Medical Equipment: Provides isolation in medical devices for patient and equipment safety.
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
