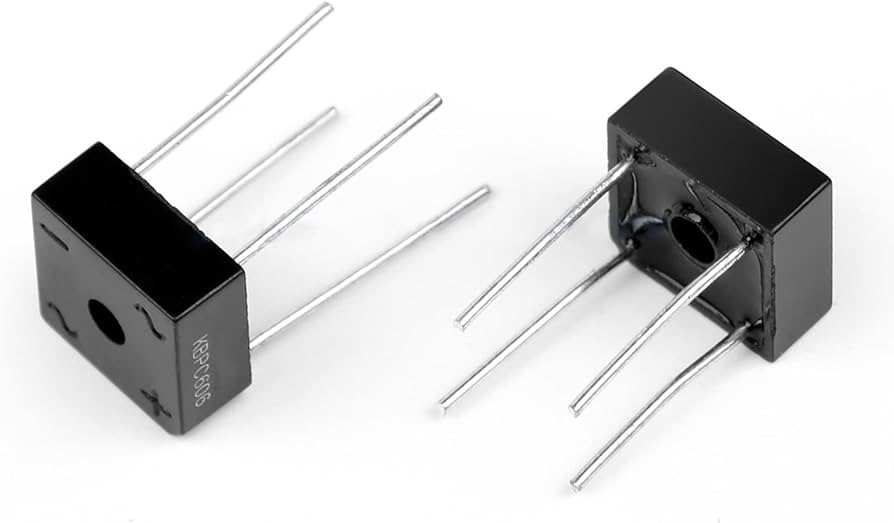

KBPC606 6A600V bridge rectifier
Description: The KBPC606 is a single-phase bridge rectifier designed for converting alternating current (AC) to direct current (DC) in various electronic circuits and power supply applications. It integrates four diodes in a bridge configuration within a robust KBPC package, providing efficient rectification with moderate current and high voltage handling capabilities.
Key Features:
- Single-phase bridge rectifier
- Maximum Average Rectified Output Current (I_O): 6A
- Maximum Repetitive Peak Reverse Voltage (V_RRM): 600V
- Low forward voltage drop
- High surge current capability
- Compact and durable KBPC package
- Maximum Average Rectified Output Current (I_O): 6A
- Peak Repetitive Reverse Voltage (V_RRM): 600V
- Maximum RMS Bridge Input Voltage (V_RMS): 420V
- Maximum DC Blocking Voltage (V_DC): 600V
- Maximum Forward Voltage Drop (V_F): 1.1V (at I_F = 6A, T_A = 25°C)
- Surge Overload Rating (I_Surge): 200A
- Operating Temperature Range: -55°C to +150°C
- Package Type: KBPC
- Power supplies
- Battery chargers
- Motor controls
- Industrial automation
- Consumer electronics
