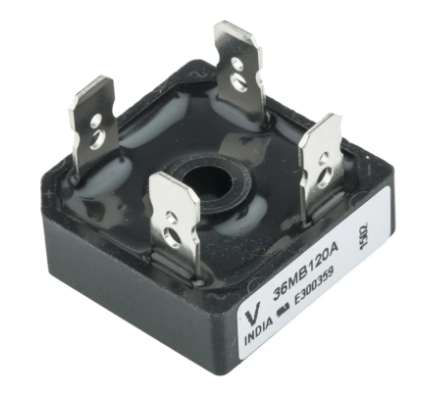

36MB120 35A1200V bridge rectifier
Description: The 36MB120 is a high-current, high-voltage bridge rectifier designed for industrial and commercial applications requiring efficient rectification of AC to DC power. It features robust construction and high surge current capability, making it suitable for use in power supplies, motor controls, welding equipment, and other electronic circuits where reliable rectification is essential.
Key Features:
- High-current, high-voltage bridge rectifier
- Efficient rectification of AC to DC power
- Robust construction for reliable performance
- Low forward voltage drop
- High surge current capability
- RoHS compliant
- Peak Repetitive Reverse Voltage (V_RRM): 1200V
- Average Forward Current (I_AV): 35A
- Surge Current (I_Surge): 300A
- Maximum Forward Voltage Drop (V_F): 1.1V (at I_F = 35A, T_C = 100°C)
- Operating Temperature Range: -40°C to +150°C
- Package Type: Through Hole, SMB
- Power supplies
- Motor controls
- Welding equipment
- Battery chargers
- Industrial automation
