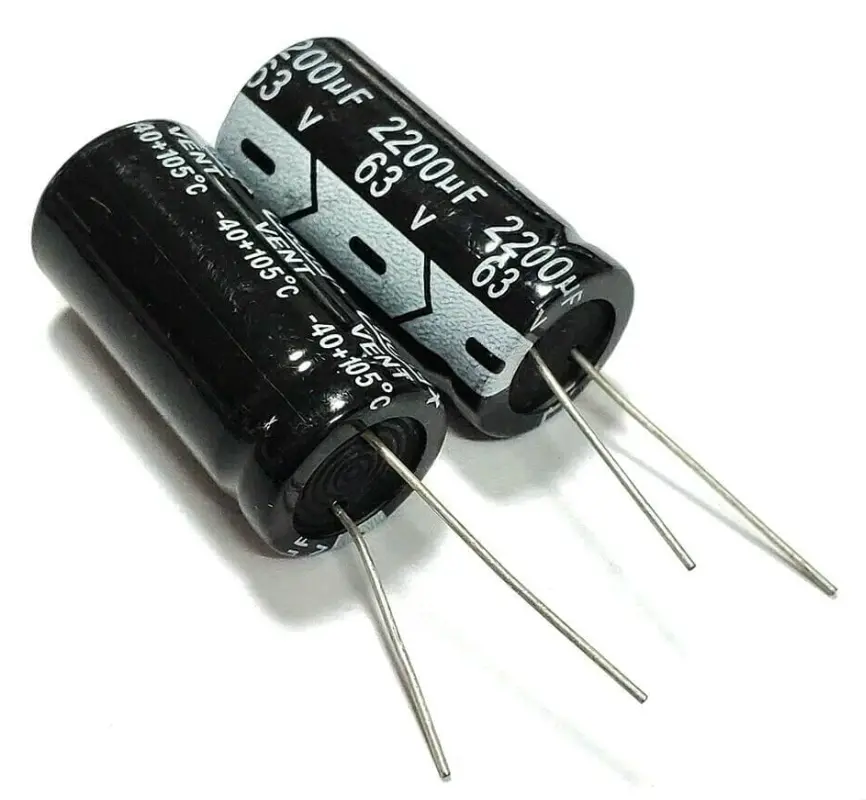

2200UF 63V electrolytic capacitor
This content will be shared across all product pages.
Description: The 2200µF 63V electrolytic capacitor is a high-capacity component designed for energy storage and filtering in various electronic circuits. It is suitable for use in power supply smoothing, coupling, and decoupling applications where large capacitance values are required. This capacitor offers reliable performance with a high voltage rating, making it ideal for a wide range of industrial and commercial applications.
Key Features:
- High capacitance value: 2200µF
- High voltage rating: 63V
- Radial leaded design
- Long life and high reliability
- Low equivalent series resistance (ESR)
- Excellent filtering and energy storage capabilities
- Capacitance: 2200µF
- Voltage Rating: 63V
- Tolerance: ±20%
- Operating Temperature Range: -40°C to +105°C
- Dimensions: Varies by manufacturer (typically provided in datasheet)
- Lead Spacing: Varies by manufacturer (typically provided in datasheet)
- Package Type: Radial
- Power supply filtering
- Energy storage
- Coupling and decoupling
- Audio equipment
- Industrial electronics
- Consumer electronics
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
