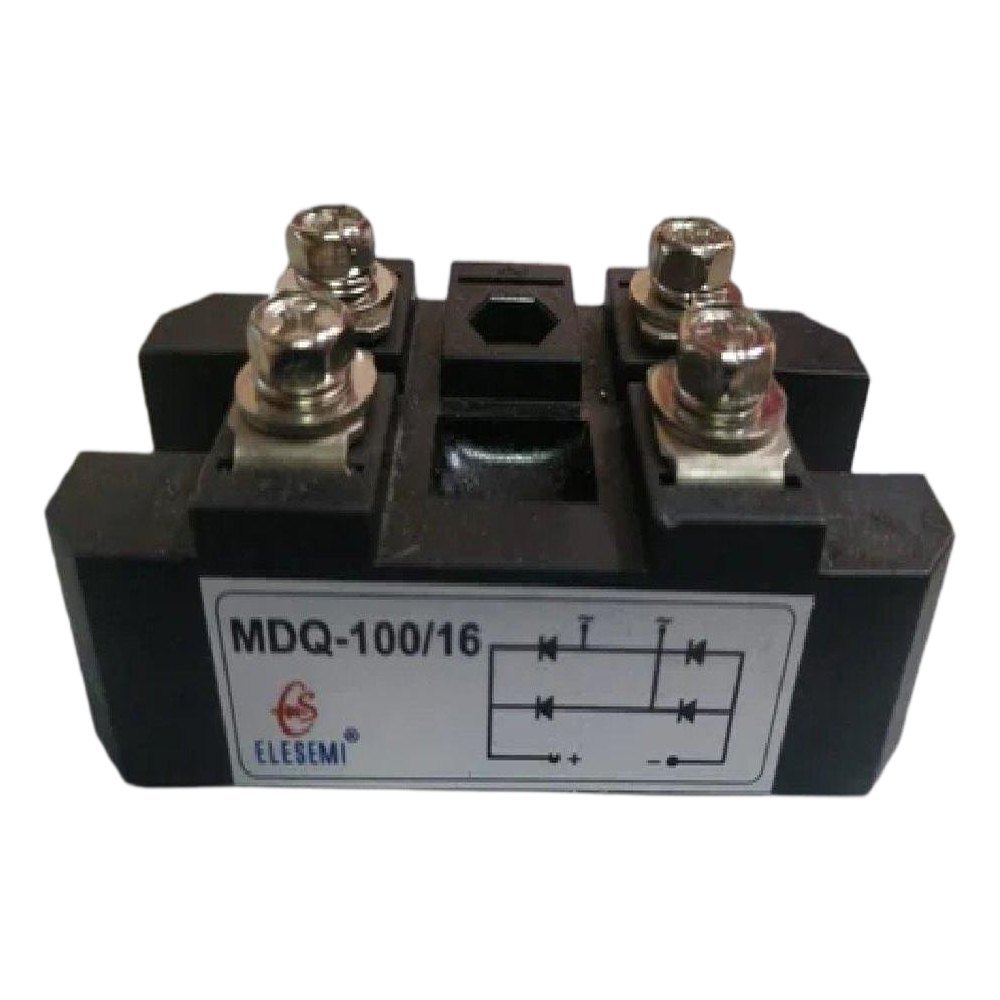

MDQ100-16 100A 1600V bridge rectifier
This content will be shared across all product pages.
Description: The MDQ100-16 is a high-current, high-voltage three-phase bridge rectifier designed for industrial applications requiring efficient conversion of AC to DC power. It is suitable for use in power supplies, motor drives, welding equipment, and other electronic circuits where reliable rectification and high current capability are essential. The bridge rectifier is built with robust materials and is designed to withstand high surge currents and operating temperatures.
Key Features:
- High-current three-phase bridge rectifier
- Maximum Average Rectified Output Current (I_O): 100A
- Maximum Repetitive Peak Reverse Voltage (V_RRM): 1600V
- Low forward voltage drop
- High surge current capability
- Robust construction for reliable performance
- Compact and durable package
- Maximum Average Rectified Output Current (I_O): 100A
- Peak Repetitive Reverse Voltage (V_RRM): 1600V
- Maximum RMS Bridge Input Voltage (V_RMS): 1120V
- Maximum DC Blocking Voltage (V_DC): 1600V
- Maximum Forward Voltage Drop (V_F): 1.2V (per diode at I_F = 100A, T_A = 25°C)
- Surge Overload Rating (I_Surge): 2000A
- Operating Temperature Range: -40°C to +150°C
- Package Type: MDQ (module)
- Power supplies
- Motor drives
- Welding equipment
- Battery chargers
- Industrial automation
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
