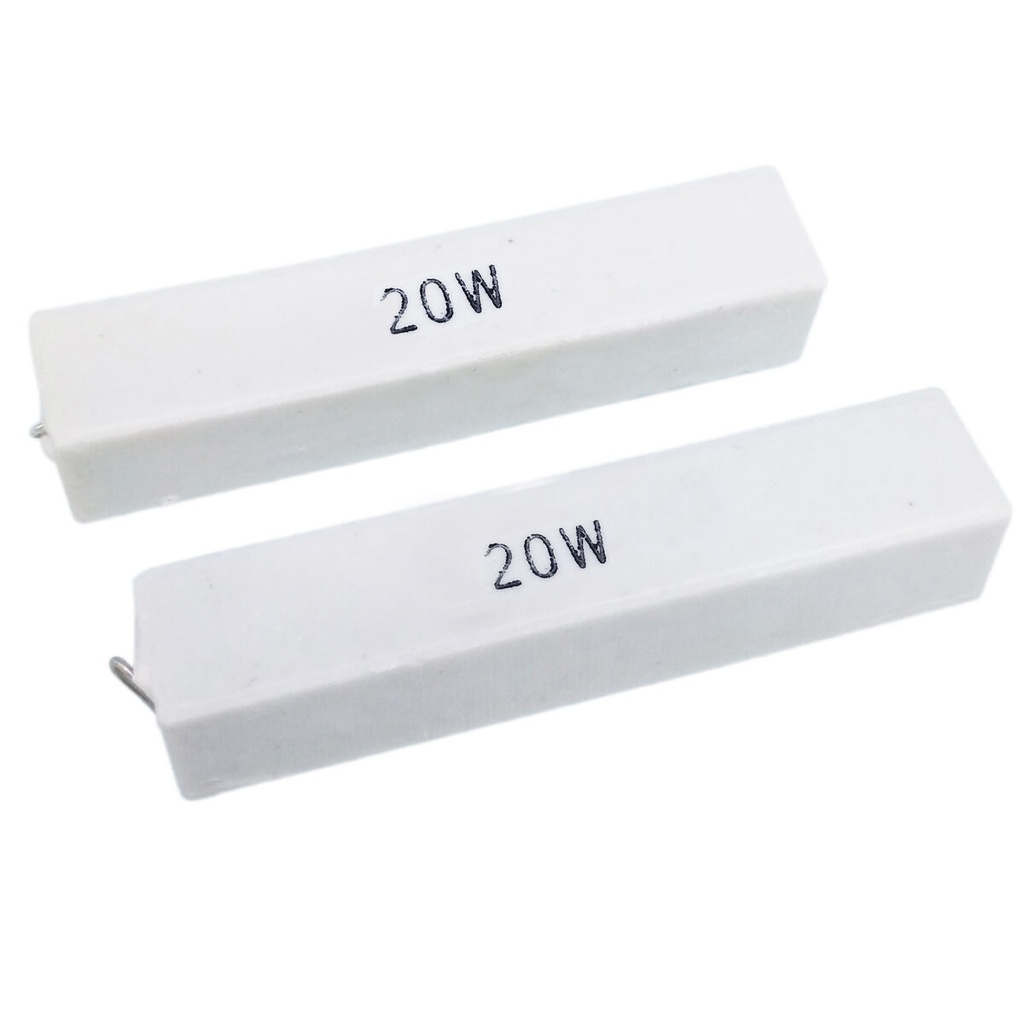

2k 20W ceramic cement resistor
This content will be shared across all product pages.
Description: The 2k 20W Ceramic Cement Resistor is a high-power resistor designed for applications requiring significant power dissipation and robust performance. Encased in a ceramic cement housing, this resistor provides excellent thermal conductivity and heat resistance, making it ideal for use in power supplies, motor drives, and other high-power circuits. The durable construction ensures long-term reliability in various demanding environments.
Key Features:
- High power dissipation (20W)
- Ceramic cement housing for superior heat resistance
- Excellent thermal conductivity
- High reliability and durability
- RoHS compliant
- Resistance: 2kΩ
- Power Rating: 20W
- Tolerance: ±5%
- Temperature Coefficient: ±300ppm/°C
- Operating Temperature Range: -55°C to +155°C
- Housing Material: Ceramic cement
- Power supplies
- Motor drives
- Industrial machinery
- Audio equipment
- High-power circuits
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
