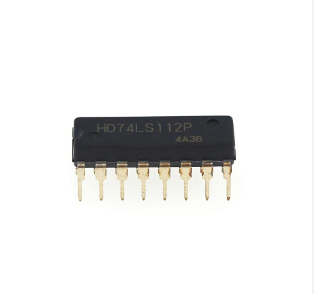

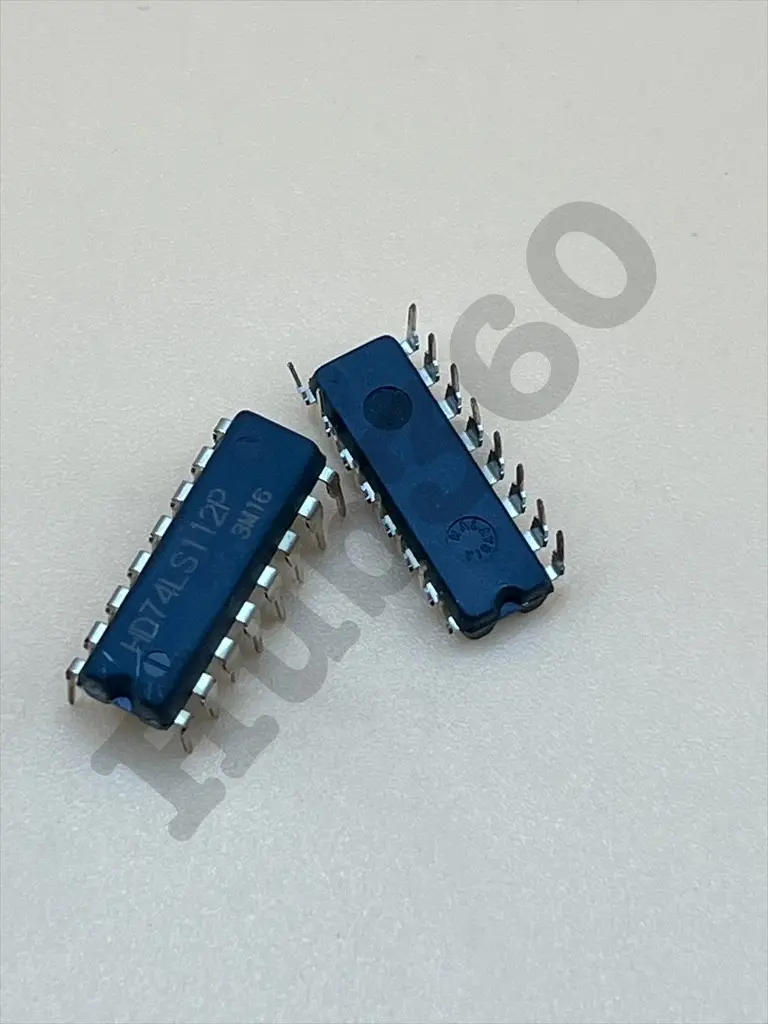

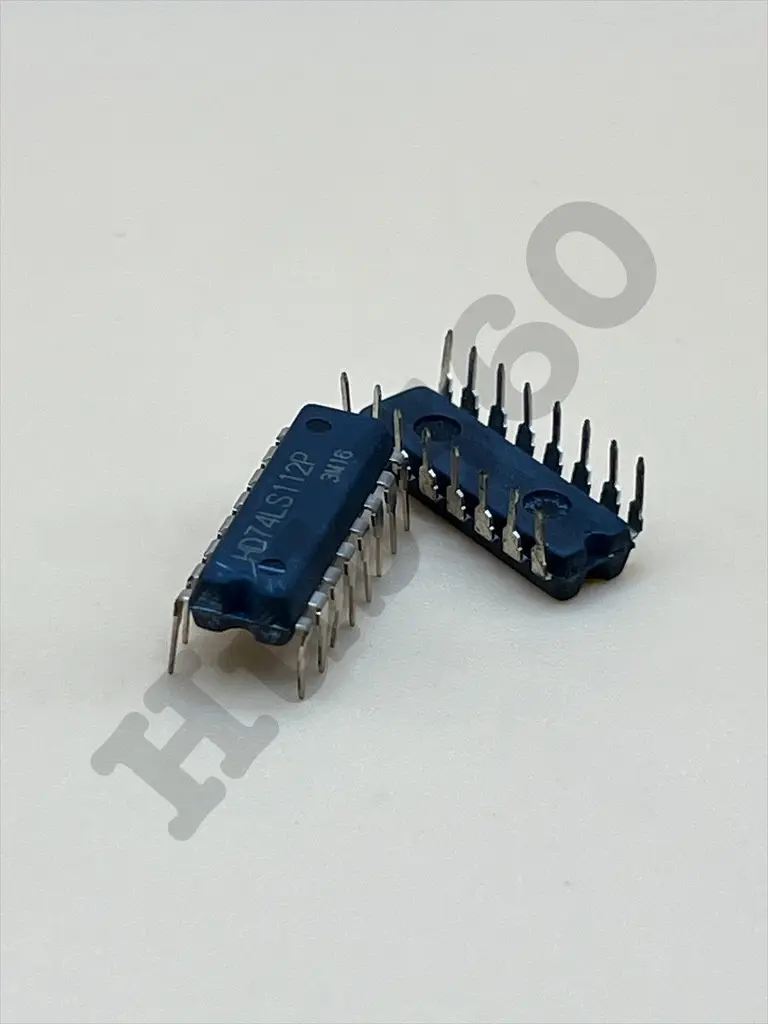

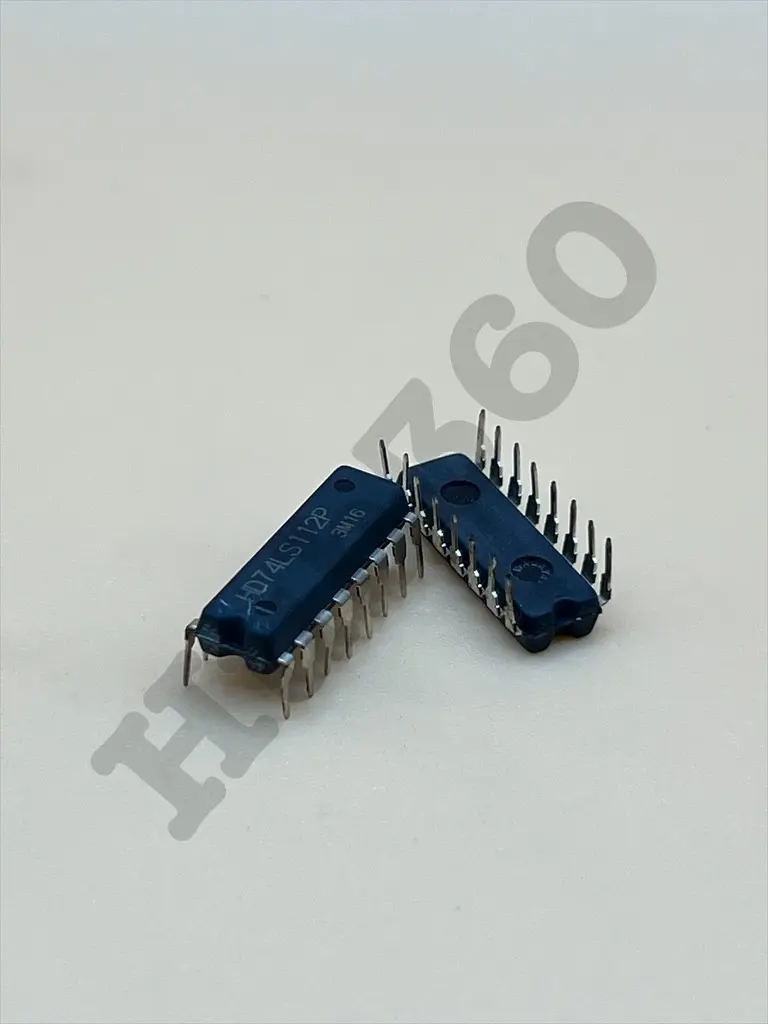

HD74LS112P (74LS112)

Description: The HD74LS112P is a dual J-K flip-flop integrated circuit designed for use in digital logic applications. It features two independent J-K flip-flops, each capable of toggling its output based on the clock input (CLK), J (set) input, and K (reset) input signals. These flip-flops are edge-triggered and can operate in toggle mode (both J and K high), set mode (J high, K low), reset mode (J low, K high), or hold mode (both J and K low). The IC is commonly used for frequency division, counting, and sequential logic circuitry. Key Features:

• Dual J-K flip-flop IC
• Edge-triggered for synchronous operation
• Toggle, set, reset, and hold modes
• Wide operating voltage range: typically 4.75V to 5.25V
• Low power consumption
• Fast propagation delay: typically 14 ns at VCC = 5V
• TTL compatible inputs and outputs

Technical Specifications:

• Package Type: 16-pin DIP (Dual In-line Package)
• Supply Voltage (VCC): 4.75V to 5.25V
• Input Voltage (VIN): 0V to VCC
• Output Voltage (VOUT): 0V to VCC
• Input High Voltage (VIH): 2V (min) at VCC = 5V
• Input Low Voltage (VIL): 0.8V (max) at VCC = 5V
• Output Current (IOH, IOL): ±8 mA (max)
• Quiescent Supply Current (ICC): 4 mA (typical) at VCC = 5V
• Operating Temperature Range: 0°C to +70°C

Applications:

• Frequency division and counting circuits
• Sequential logic circuits
• Control and timing applications in microprocessor systems
• Clock signal generation and synchronization

Datasheet: For detailed technical specifications and application notes, please refer to the HD74LS112P datasheet.
