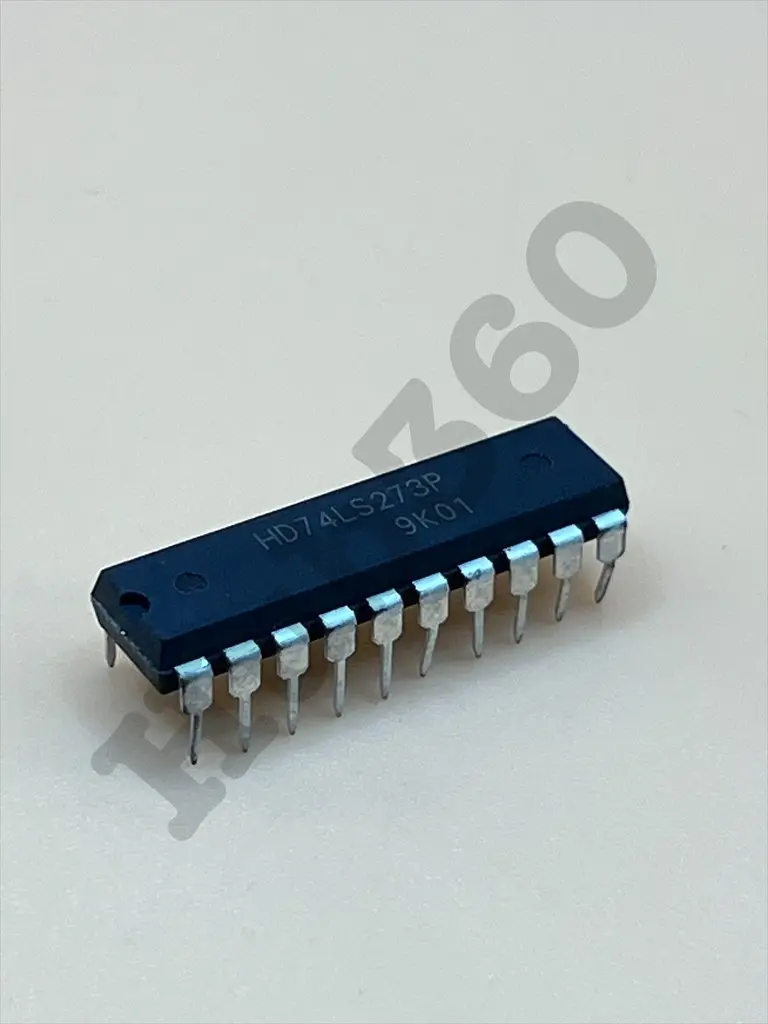

HD74LS273P (74LS273)
Description:
The HD74LS273P is an octal D-type flip-flop with eight positive-edge-triggered flip-flops in a single package. Each flip-flop stores a single bit of data, and data inputs (D) are latched into the flip-flops on the rising edge of the clock (CLK) signal. This IC is commonly used in digital electronics for data storage, synchronization, and control applications.
Key Features:
- Octal D-type flip-flop with eight flip-flops in a single package
- Positive-edge-triggered flip-flops: data latched on the rising edge of CLK
- Direct clear (CLR) input for clearing all flip-flops to a logic low state
- Buffered outputs for driving external loads
- Low power consumption: typically ICC = 8 mA at VCC = 5V
- Wide operating voltage range: 4.75V to 5.25V
- TTL compatible inputs and outputs
- Package Type: 20-pin DIP (Dual In-line Package)
- Supply Voltage (VCC): 4.75V to 5.25V
- Input Voltage (VIN): 0V to VCC
- Output Voltage (VOUT): 0V to VCC
- Input High Voltage (VIH): 2V (min) at VCC = 5V
- Input Low Voltage (VIL): 0.8V (max) at VCC = 5V
- Output Current (IOH, IOL): ±8 mA (max)
- Quiescent Supply Current (ICC): 8 mA (typical) at VCC = 5V
- Operating Temperature Range: 0°C to +70°C
- Data storage and synchronization in digital circuits
- Parallel data transfer and buffering
- Address and data bus buffering in microprocessor systems
- Control and timing circuitry in sequential logic applications
- General-purpose digital logic applications
