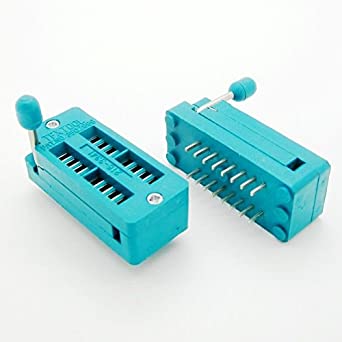

The 16-pin ZIF (Zero Insertion Force) socket is a type of IC (Integrated Circuit) socket that allows for easy insertion and removal of 16-pin ICs without the need for significant insertion force. This socket is designed to hold ICs securely while providing a convenient way to swap out components during development, prototyping, and testing. Key Features:
  • Compatibility: Accommodates 16-pin DIP (Dual In-line Package) ICs
  • Insertion Force: Zero Insertion Force (ZIF) mechanism allows for easy and damage-free insertion and removal of ICs
  • Lever Operation: Typically includes a lever or slide mechanism to open and close the contacts, ensuring a secure connection when engaged
  • Durability: Made from high-quality materials to ensure a long lifespan and reliable performance
  • Contact Material: Often features gold-plated or tin-plated contacts for corrosion resistance and reliable electrical connections
Technical Specifications:
  • Pin Count: 16
  • Pin Pitch: Standard 2.54 mm (0.1 inches) pitch
  • Socket Type: Zero Insertion Force (ZIF)
  • Contact Material: Gold-plated or tin-plated contacts for improved conductivity and corrosion resistance
  • Housing Material: High-temperature resistant plastic to withstand soldering processes
  • Dimensions: Specific to the 16-pin DIP form factor, typically adhering to industry standards
Applications:
  • Prototyping: Ideal for development boards and prototypes to allow easy swapping of ICs during design and testing.
  • Repair and Maintenance: Facilitates the replacement of ICs in existing electronic equipment without the risk of damage from repeated insertions and removals.
  • Production: Suitable for low-volume production runs where ICs might need to be frequently changed or upgraded.
  • Educational: Commonly used in educational kits and projects to demonstrate the use of various ICs without soldering.
Datasheet: For detailed technical information, refer to the datasheet provided by the socket manufacturer.

Technical Specifications:

  • Logic Family: CMOS
  • Number of Channels: 3
  • Switch Configuration: Single-Pole Double-Throw (SPDT)
  • Supply Voltage Range: 3V to 15V
  • “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
  • “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
  • Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
  • Maximum Operating Frequency: 40 MHz at V_DD = 10V

Applications:

  • Signal routing and switching
  • Analog and digital multiplexing
  • Audio and video signal processing
  • Data acquisition systems
  • Test equipment
