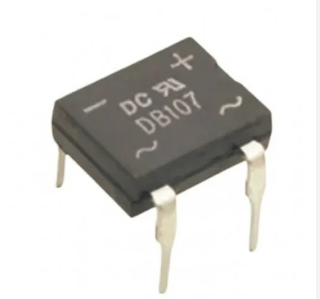

DB107 1A 1000V bridge rectifier
Description: The DB107 is a single-phase bridge rectifier designed for converting alternating current (AC) to direct current (DC) in various low-power electronic circuits and power supply applications. It consists of four diodes configured in a bridge configuration, providing efficient rectification with low to moderate current and voltage handling capabilities.
Key Features:
- Single-phase bridge rectifier
- Maximum Average Rectified Output Current (I_O): 1A
- Maximum Repetitive Peak Reverse Voltage (V_RRM): 1000V
- Low forward voltage drop
- Compact and economical design
- Maximum Average Rectified Output Current (I_O): 1A
- Peak Repetitive Reverse Voltage (V_RRM): 1000V
- Maximum RMS Bridge Input Voltage (V_RMS): 700V
- Maximum DC Blocking Voltage (V_DC): 1000V
- Maximum Forward Voltage Drop (V_F): 1.1V (at I_F = 1A, T_A = 25°C)
- Operating Temperature Range: -55°C to +150°C
- Package Type: DB (4-SIP)
- Low-power power supplies
- Battery chargers
- LED drivers
- Small appliances
- Consumer electronics
