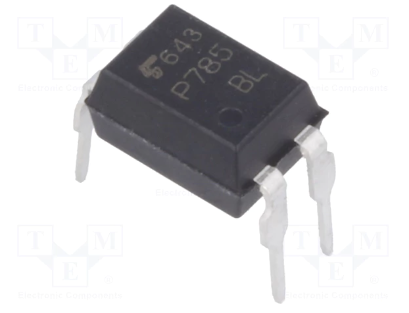

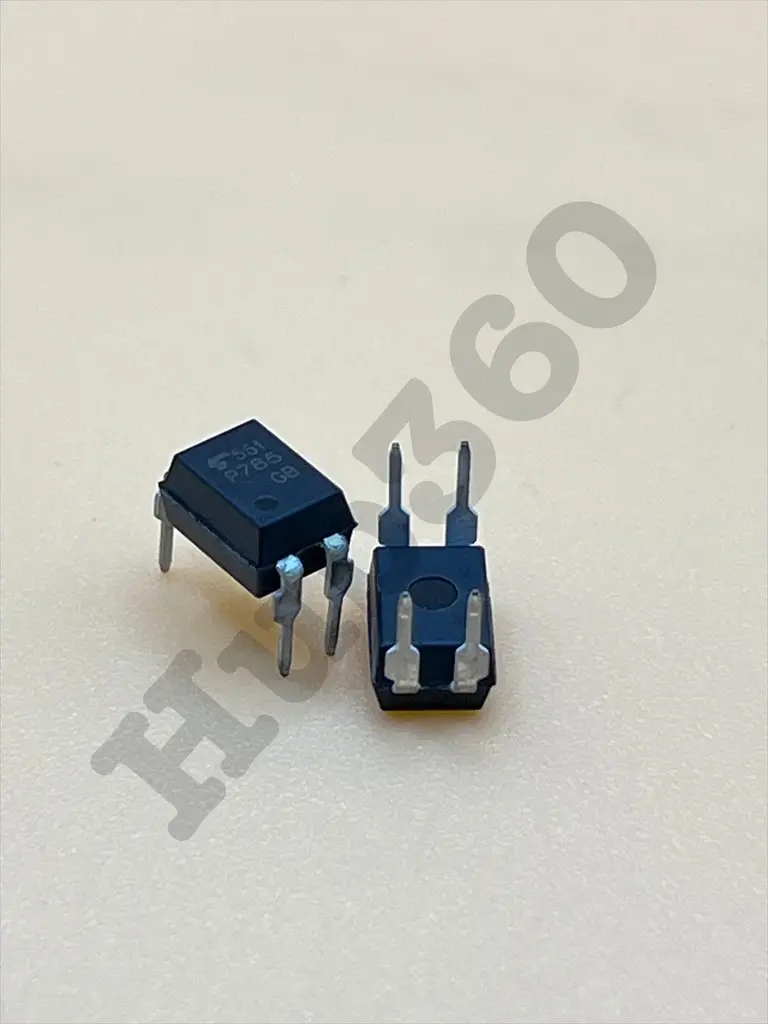

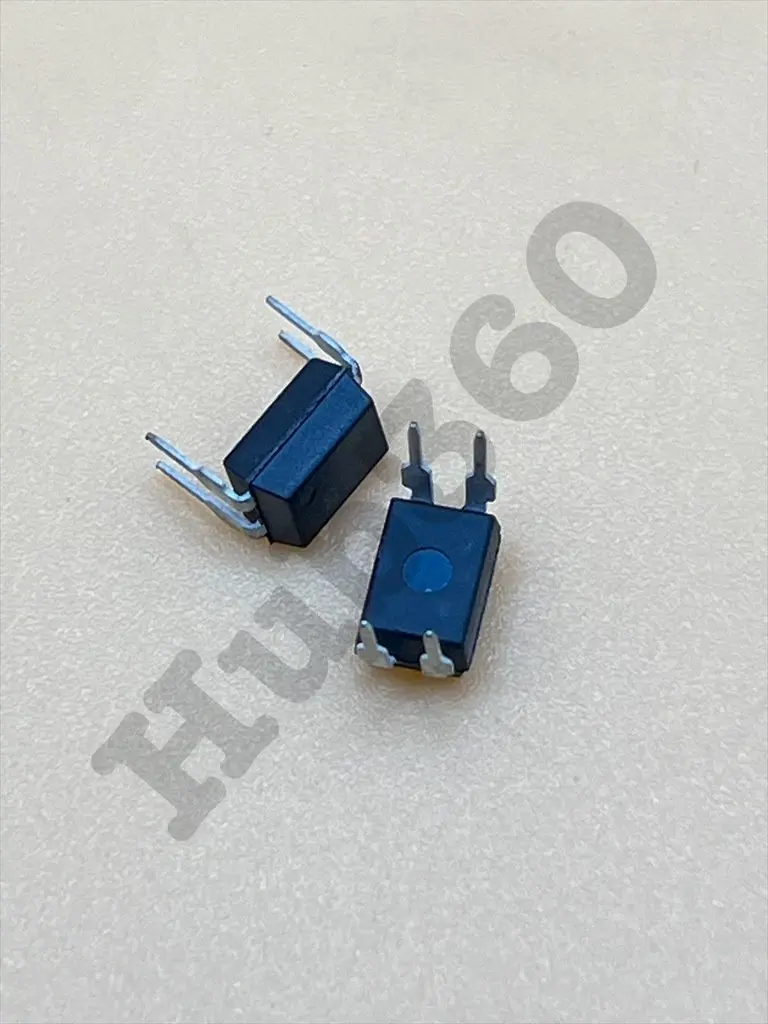

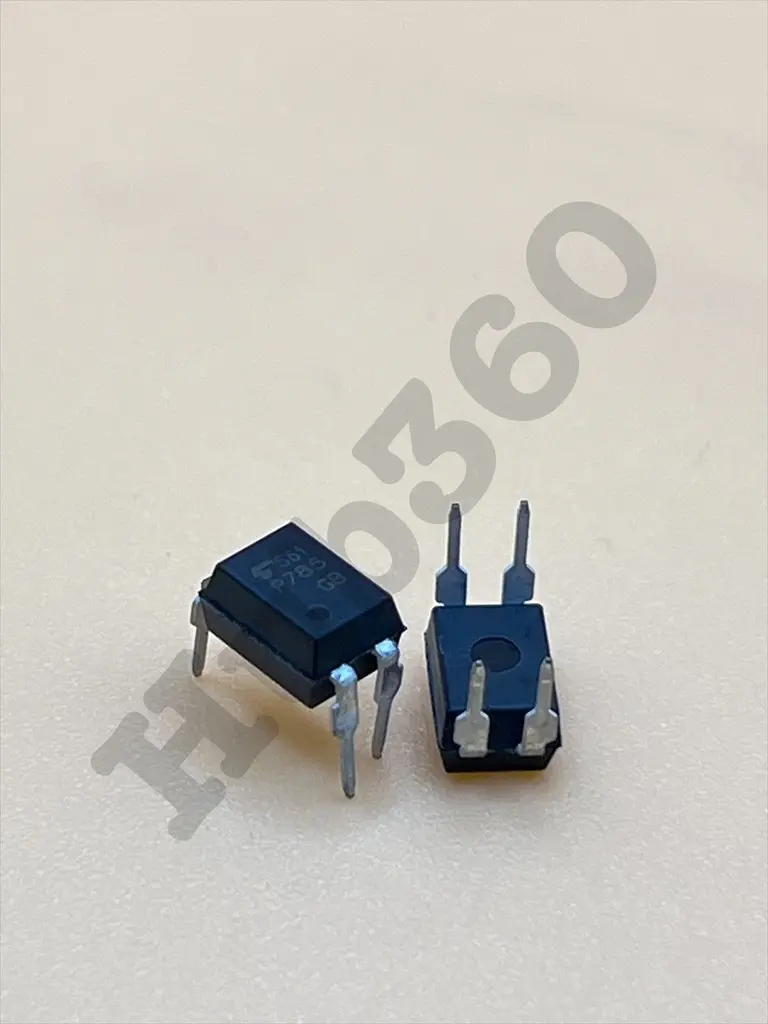

TLP785 optocoupler
Description:
The TLP785 is an optocoupler with a transistor output, designed for applications requiring electrical isolation and signal transmission between input and output circuits. It consists of an infrared emitting diode optically coupled to a phototransistor, providing isolation and amplification of electrical signals. The transistor output configuration allows for interfacing low-level logic signals with higher power loads or circuits, ensuring reliable isolation and signal integrity.
Key Features:
- Transistor output configuration
- High current transfer ratio (CTR)
- High isolation voltage
- Wide operating temperature range: -55°C to +100°C
- Low input current requirement
- Low output saturation voltage
- Electrically isolated between input and output
- Package Type: 5-pin SOP
- Input Forward Current (IF): 50 mA
- Reverse Voltage (VR): 6 V
- Power Dissipation (PD): 200 mW
- Collector-Emitter Voltage (VCEO): 80 V
- Emitter-Collector Voltage (VECO): 7 V
- Total Power Dissipation (PTOT): 200 mW
- Isolation Voltage (VISO): 3750 Vrms
- Operating Temperature Range (TOPR): -55°C to +100°C
- Storage Temperature Range (TSTG): -55°C to +125°C
- Soldering Temperature (TSOL): 260°C
- Switching Power Supplies: Provides isolation and feedback in power supply circuits.
- Signal Isolation: Interfaces microcontroller and digital logic signals with power devices.
- Motor Control: Controls and isolates signals for motor drives and controllers.
- Industrial Automation: Ensures electrical isolation in control and monitoring systems.
- Audio Amplifiers: Isolates audio signal paths for noise reduction and interference suppression.
