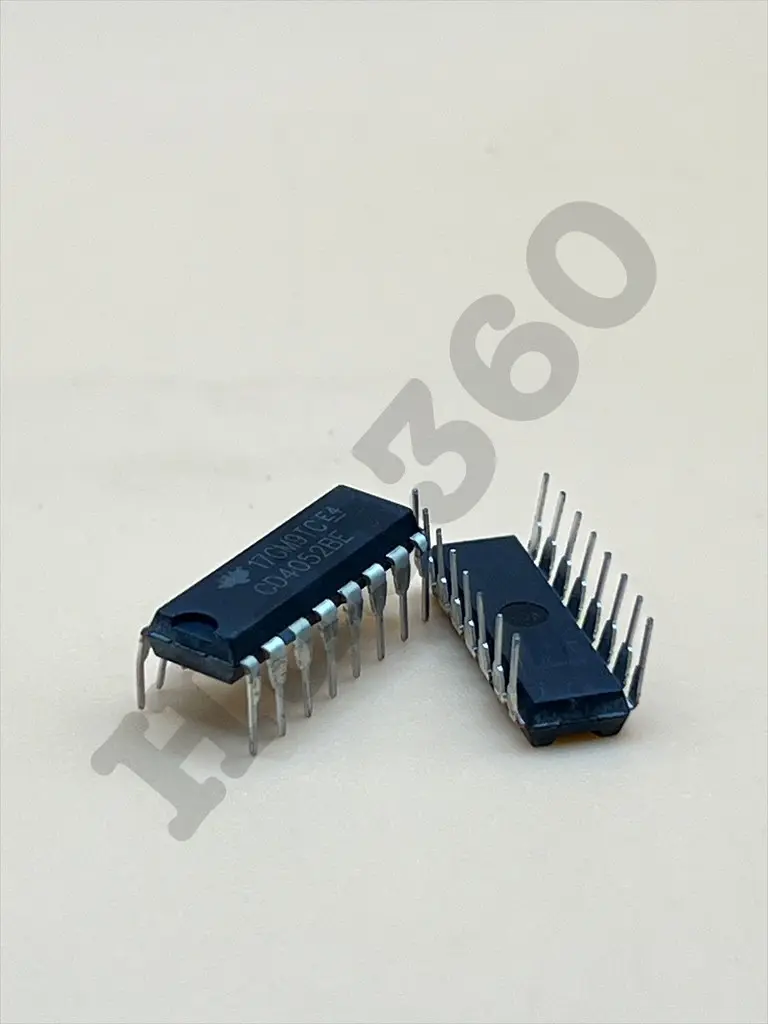

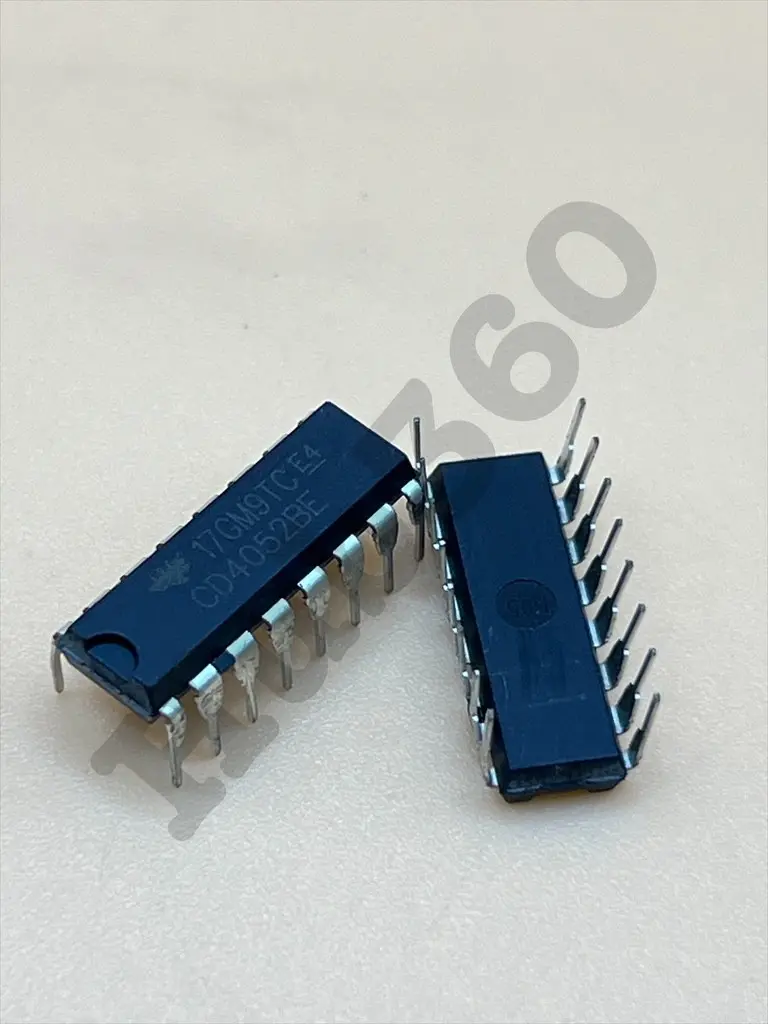

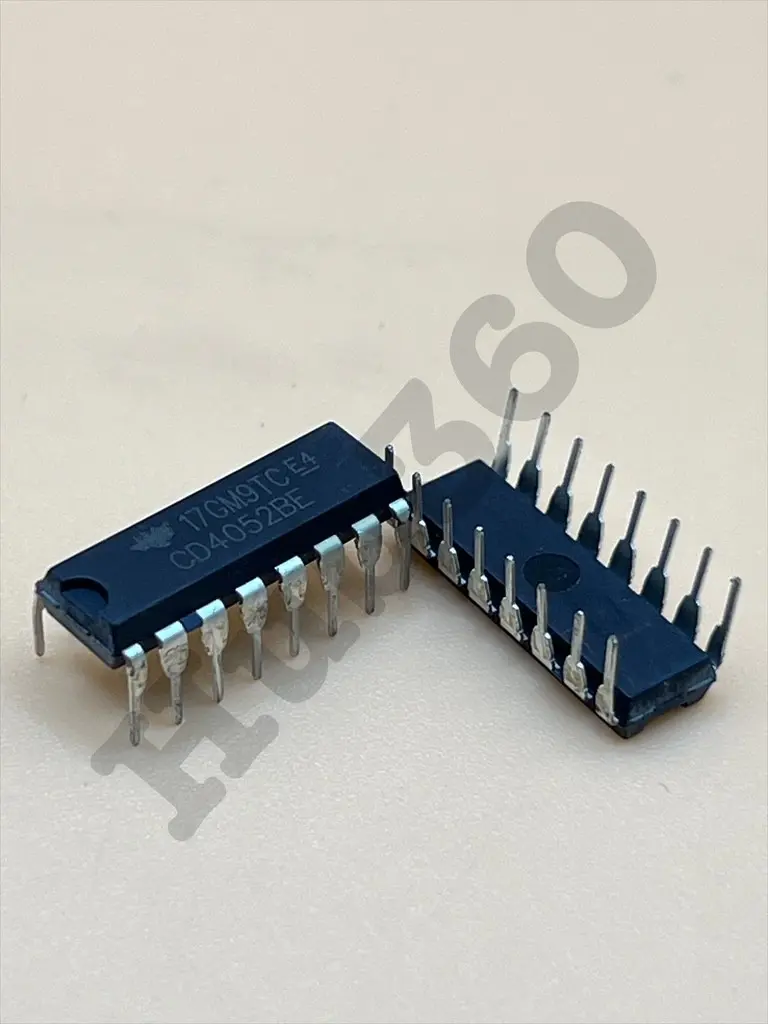

CD4052BE multiplexer / signal separator
This content will be shared across all product pages.
The CD4052BE is a CMOS analog multiplexer/demultiplexer IC with two independent channels. It enables analog signals to be switched between various sources and destinations, making it useful for routing signals in electronic circuits. The device operates with a wide voltage range and low power consumption, suitable for various analog switching applications.
Key Features:
- Dual 4-channel Multiplexer/Demultiplexer
- Wide Supply Voltage Range: 3V to 15V
- Low ON Resistance: 125Ω (Typical) at VDD - VSS = 10V
- High Noise Immunity: 0.45 VDD (Typical)
- Compatible with TTL, CMOS Logic Levels
- Supply Voltage Range: 3V to 15V
- On-Resistance (R_ON): 125Ω (Typical)
- Operating Temperature Range: -55°C to 125°C
- Package Type: PDIP-16, SOIC-16
- Analog Signal Multiplexing
- Data Acquisition Systems
- Audio Signal Routing
- Instrumentation and Measurement Systems
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
