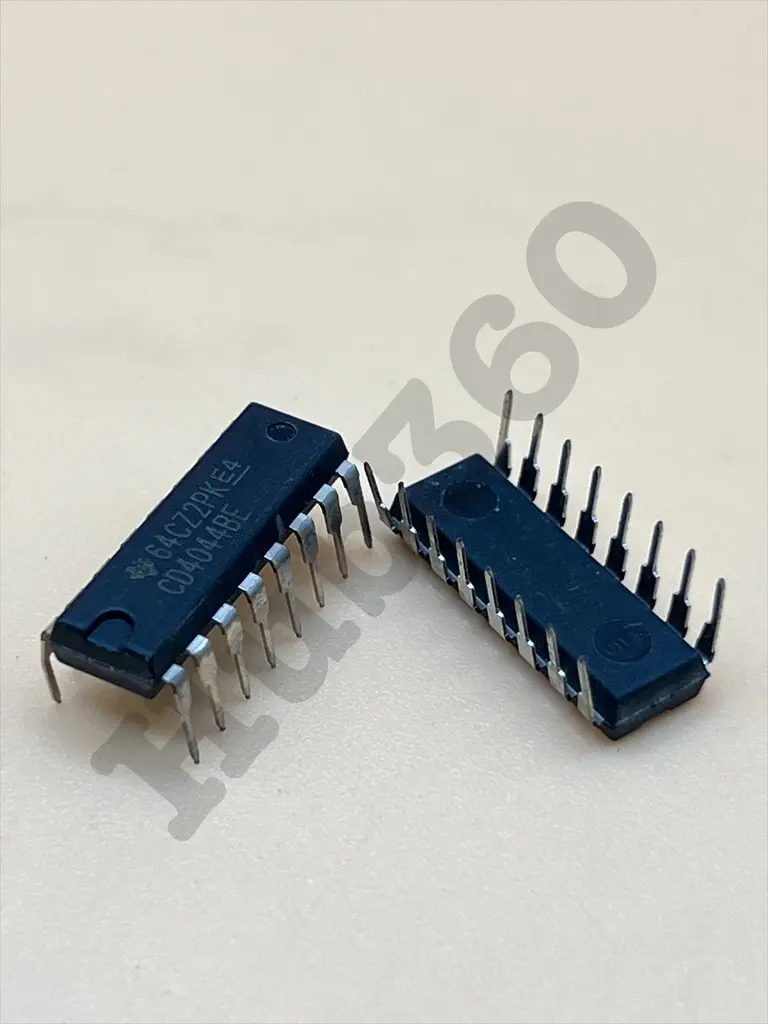

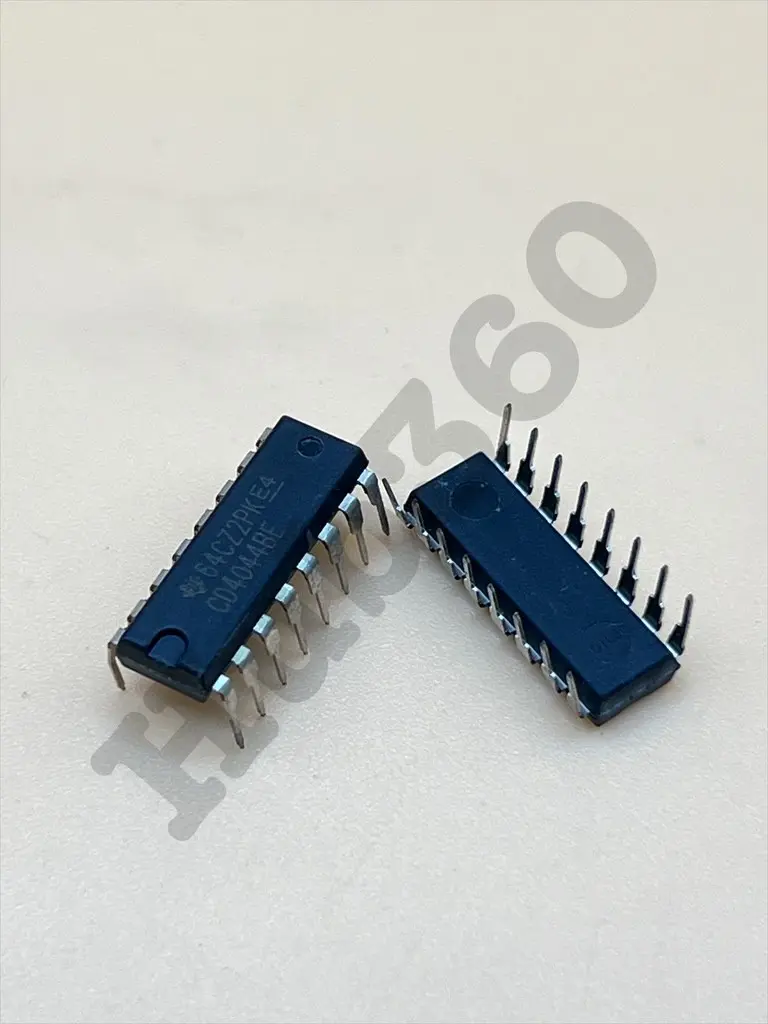

CD4044BE SR latch
The CD4044BE is a quad NOR R-S (Reset-Set) latch IC from the CMOS 4000 series. Each latch is independent and features a separate reset and set input. The outputs of the latches can drive 10 low-power Schottky (LS-TTL) loads. It is well-suited for applications requiring memory elements, data storage, and flip-flop operations.
Key Features:
- Quad SR latch with NOR gates
- CMOS technology for low power consumption
- Independent reset and set inputs for each latch
- Wide supply voltage range: typically operates from 3V to 15V
- High noise immunity
- TTL compatible outputs
- Logic Family: CMOS
- Number of Latches: 4
- Supply Voltage Range: 3V to 15V
- Typical Operating Frequency: Up to 5 MHz at V_DD = 10V
- Power Dissipation: 500 mW (max)
- Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Output Voltage (V_OH): V_DD - 0.05V min
- Memory elements in digital circuits
- Data storage
- Flip-flop operations
- State machines
- Digital systems and control applications
