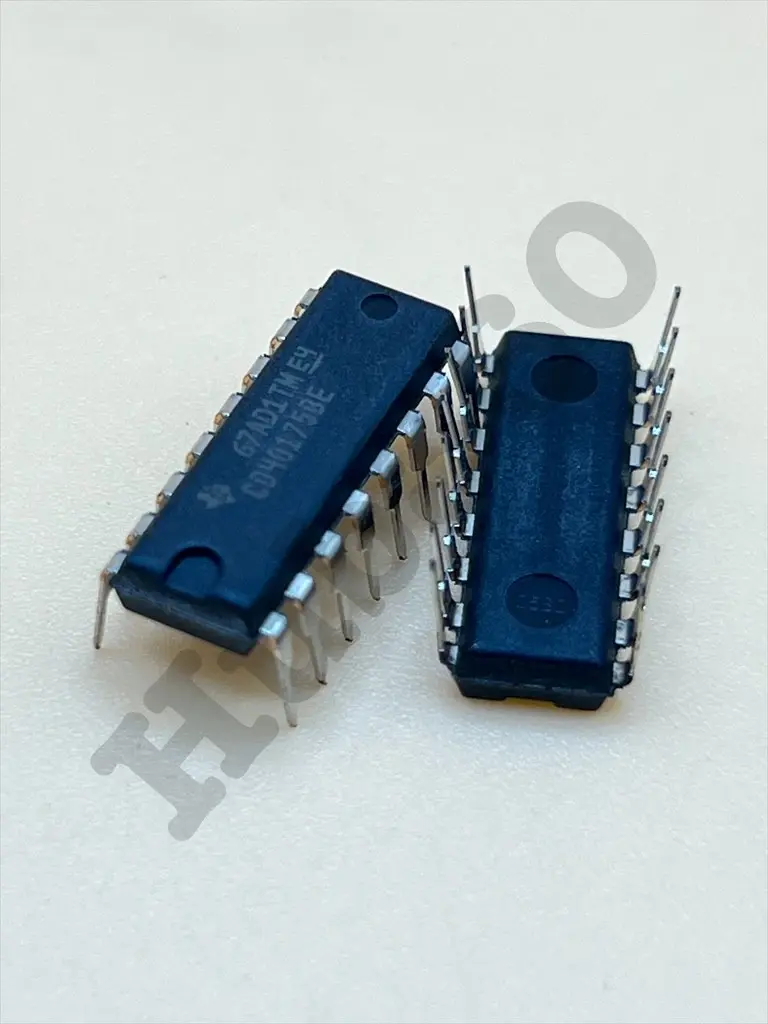

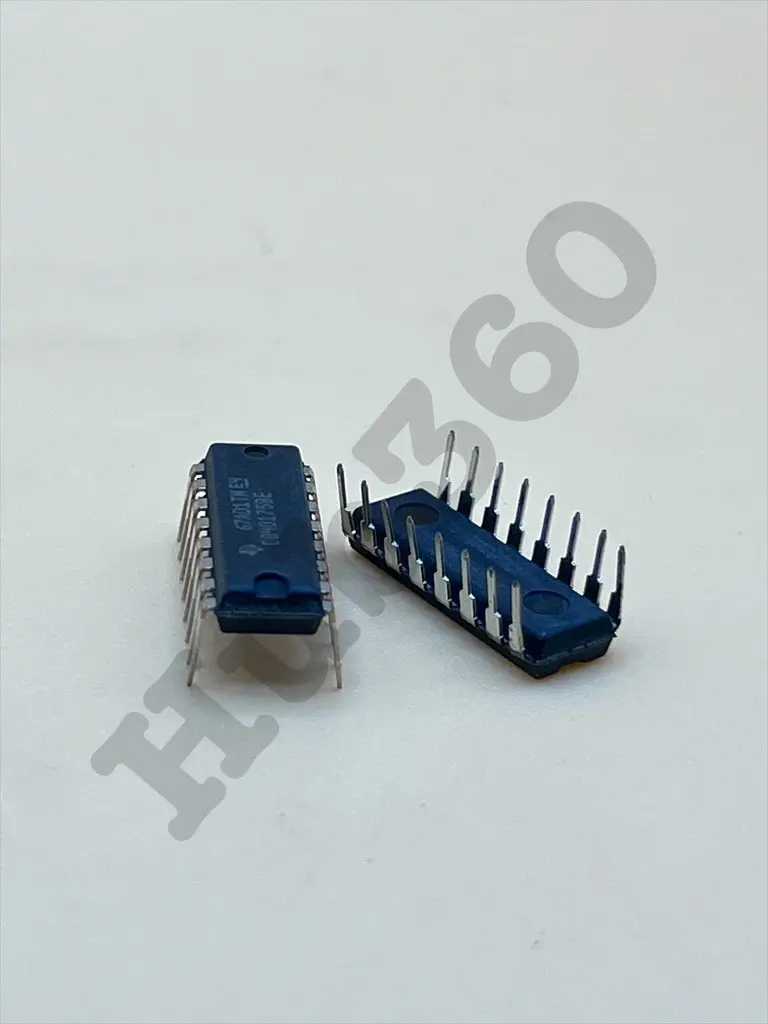

CD40175 Logic circuit
The CD40175 is a CMOS integrated circuit that includes four D-type flip-flops with complementary outputs. It is part of the CD4000 series of logic devices, offering versatile functionality for digital logic applications where sequential logic elements are required. Each flip-flop within the CD40175 operates independently, offering ease of use in designing sequential circuits.
Key Features:
- Four D-type flip-flops with complementary outputs
- Wide supply voltage range: 3V to 15V
- Low power consumption
- High noise immunity
- Direct compatibility with TTL and CMOS logic levels
- Logic Family: CMOS
- Number of Flip-Flops: 4 (D-type)
- Supply Voltage Range: 3V to 15V
- Maximum Clock Frequency: 12 MHz at V_DD = 10V
- Power Dissipation: 500 mW
- Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Output Voltage (V_OH): V_DD - 0.05V min
- Sequential logic circuits
- Shift registers
- Frequency dividers
- Counter circuits
- Control systems
