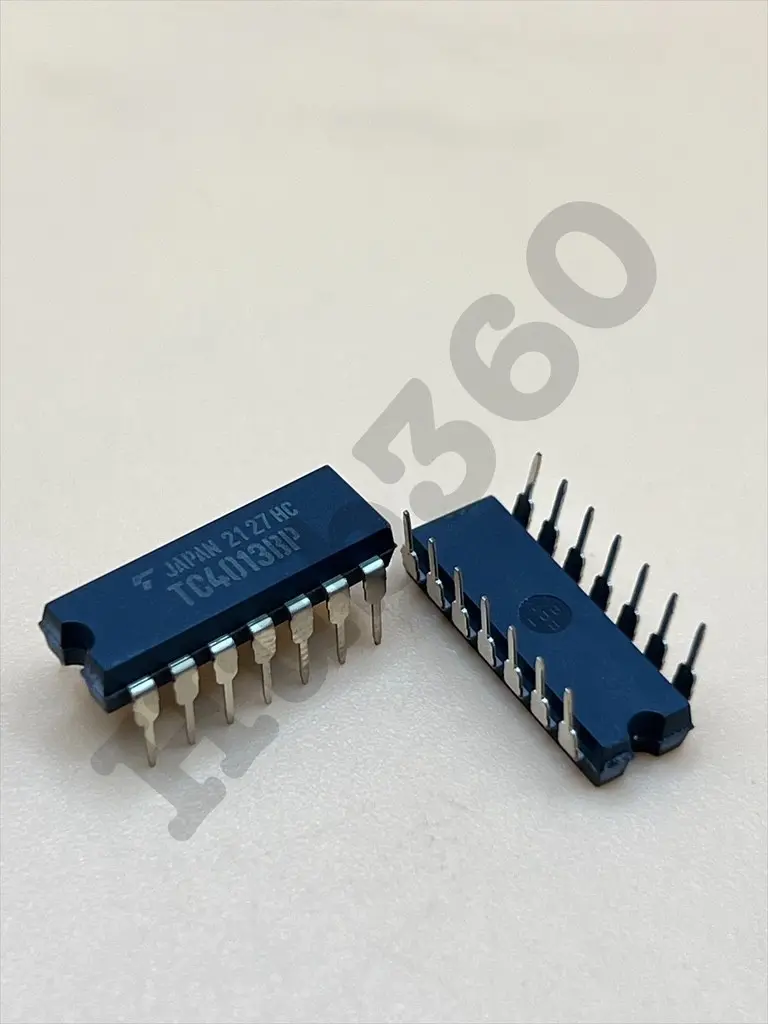

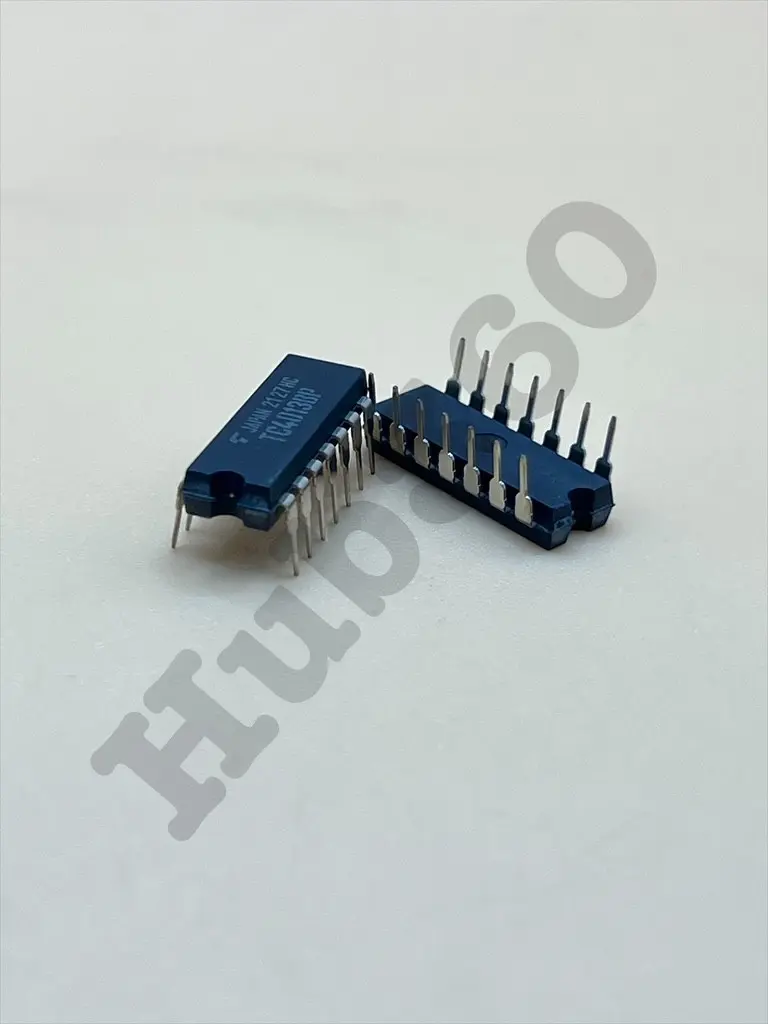

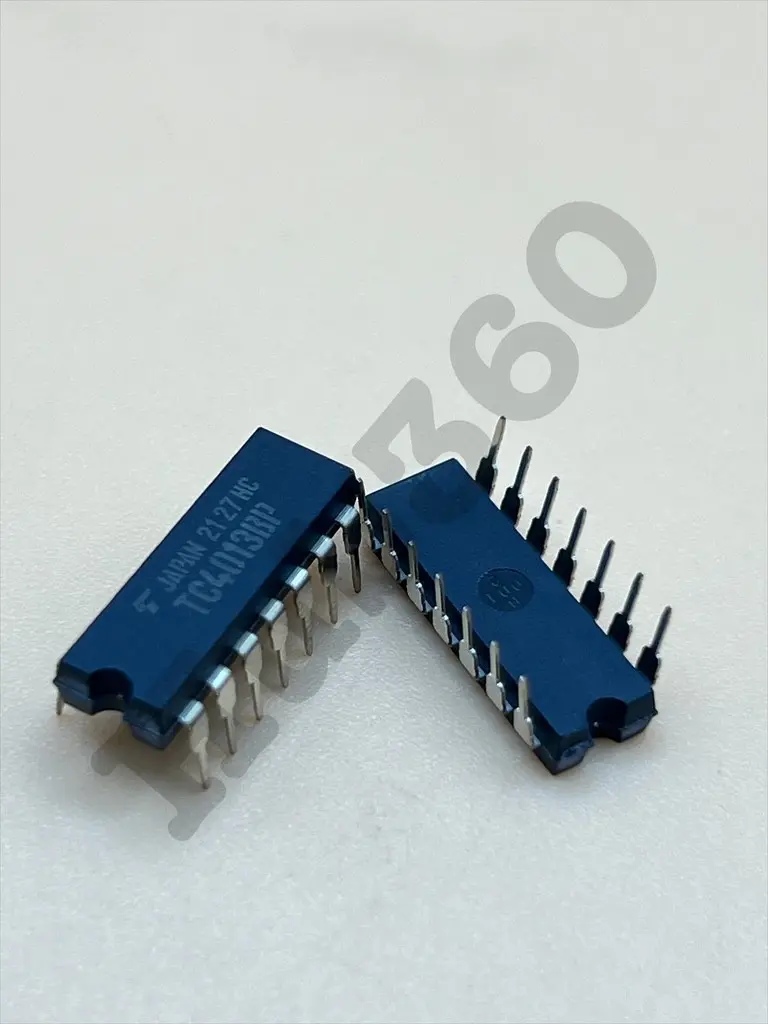

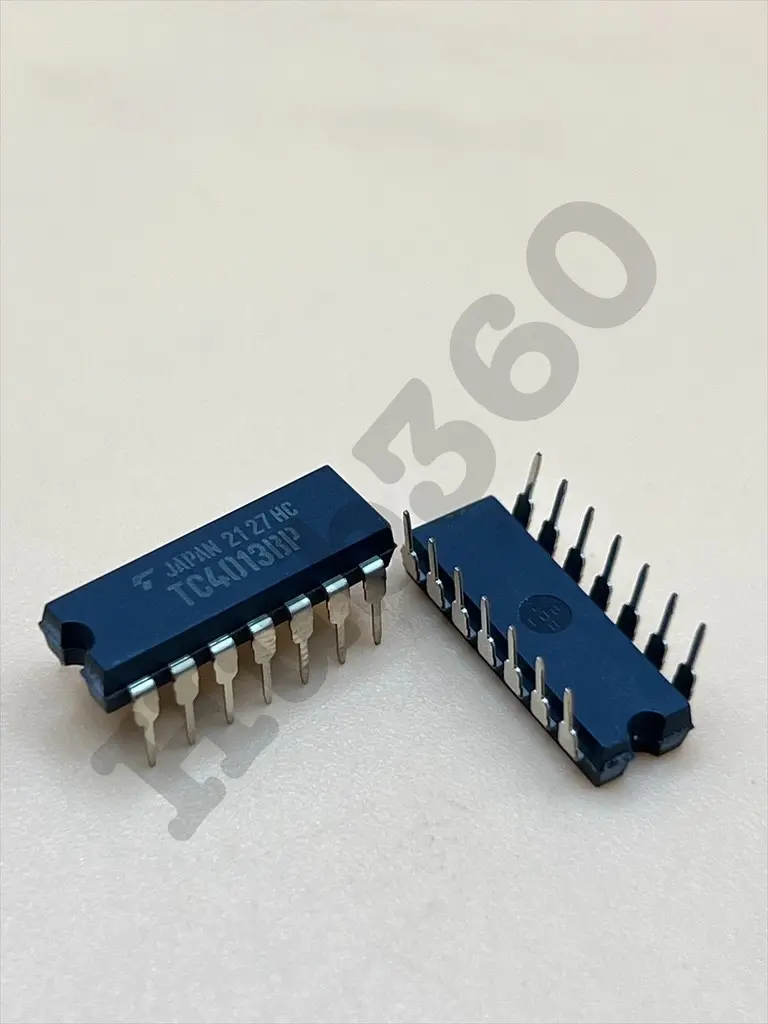

TC4013 double D type trigger
This content will be shared across all product pages.
The TC4013 is a dual D-type flip-flop IC from the TC4000 series of CMOS logic devices. It consists of two independent D-type flip-flops with individual data (D), set (S), reset (R), and clock (C) inputs, as well as complementary outputs (Q and Q̅). This IC is designed for use in a variety of digital applications, including data storage, frequency division, and shift registers. The TC4013 is known for its high noise immunity, low power consumption, and wide operating voltage range.
Key Features:
- Dual D-type flip-flop with independent controls
- High noise immunity
- Low power consumption
- Wide supply voltage range
- Asynchronous set and reset inputs
- Standardized symmetrical output characteristics
- Logic Family: CMOS
- Number of Flip-Flops: 2
- Supply Voltage Range: 3V to 15V
- High-Level Output Voltage (V_OH): 2.5V min at V_DD = 5V, 9.5V min at V_DD = 10V
- Low-Level Output Voltage (V_OL): 0.5V max at V_DD = 5V, 0.5V max at V_DD = 10V
- High-Level Input Voltage (V_IH): 3.5V min at V_DD = 5V, 7V min at V_DD = 10V
- Low-Level Input Voltage (V_IL): 1.5V max at V_DD = 5V, 3V max at V_DD = 10V
- Propagation Delay Time: 200ns max at V_DD = 10V, C_L = 50pF
- Operating Temperature Range: -40°C to +85°C
- Package Types: PDIP, SOIC, TSSOP
- Data storage
- Frequency division
- Shift registers
- Counters
- Control systems
- Digital circuits
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
