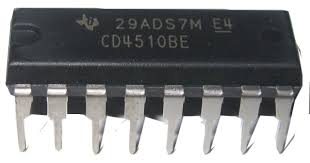

CD4510BE Logic BCD counter
The CD4510BE is a CMOS presettable BCD (Binary Coded Decimal) up/down counter IC. It is designed to count up or down in BCD format, making it ideal for applications requiring precise digital counting. The IC features synchronous counting and an asynchronous clear input to reset the counter to zero.
Key Features:
- Presettable up/down BCD counter
- CMOS technology for low power consumption
- Synchronous counting
- Asynchronous clear input (CLR) for resetting the counter
- Wide supply voltage range: typically operates from 3V to 15V
- High noise immunity
- Logic Family: CMOS
- Counting Modes: Up and Down
- Number of Counters: 1
- Supply Voltage Range: 3V to 15V
- Typical Operating Frequency: Up to 5 MHz at V_DD = 10V
- Power Dissipation: 500 mW (max)
- Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Output Voltage (V_OH): V_DD - 0.05V min
- Digital counting applications
- Frequency counters
- Industrial automation
- Timer circuits
