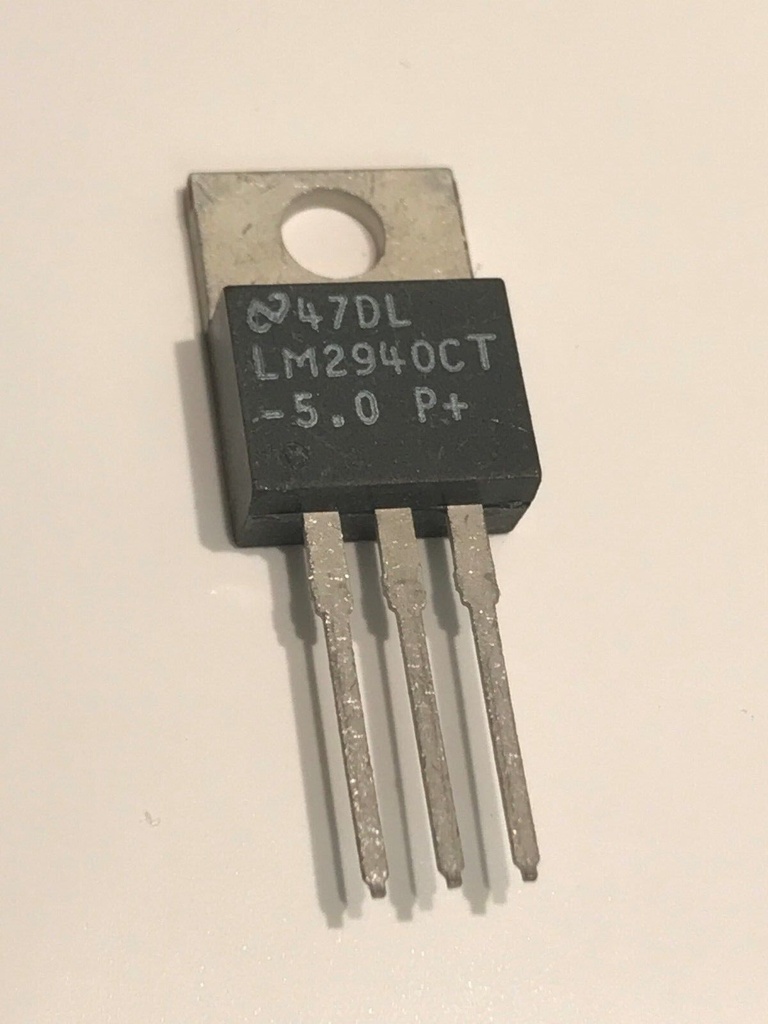

LM2940CT-5.0
Description:
The LM2940CT-5.0 is a low dropout voltage regulator capable of supplying up to 1A of output current with a dropout voltage of typically 0.5V at full load. It is designed to provide a stable 5V output from input voltages of up to 26V, making it ideal for applications where a stable 5V supply is required from a variety of input sources. The LM2940CT-5.0 offers thermal shutdown and current limit protection features, ensuring reliable operation under varying load conditions and thermal environments.
Key Features:
- Low dropout voltage: typically 0.5V at 1A output current
- Output voltage: 5V (fixed)
- Output current: up to 1A
- Input voltage range: up to 26V
- Thermal shutdown and current limit protection
- Short-circuit protection
- Low quiescent current: typically 10 mA
- Available in TO-220 and DDPAK/TO-263 packages for different mounting options
- Package Type: TO-220, DDPAK/TO-263
- Output Voltage: 5V (fixed)
- Output Current: Up to 1A
- Dropout Voltage: Typically 0.5V at 1A
- Input Voltage Range: Up to 26V
- Quiescent Current: Typically 10 mA
- Operating Temperature Range: 0°C to +125°C
- Dimensions: Standard TO-220 or DDPAK/TO-263 package
- Power Supplies for Microcontrollers and ICs
- Battery-Powered Devices
- Embedded Systems
- Consumer Electronics
- Industrial Control Systems
- Communication Equipment
